Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWP-20A14F

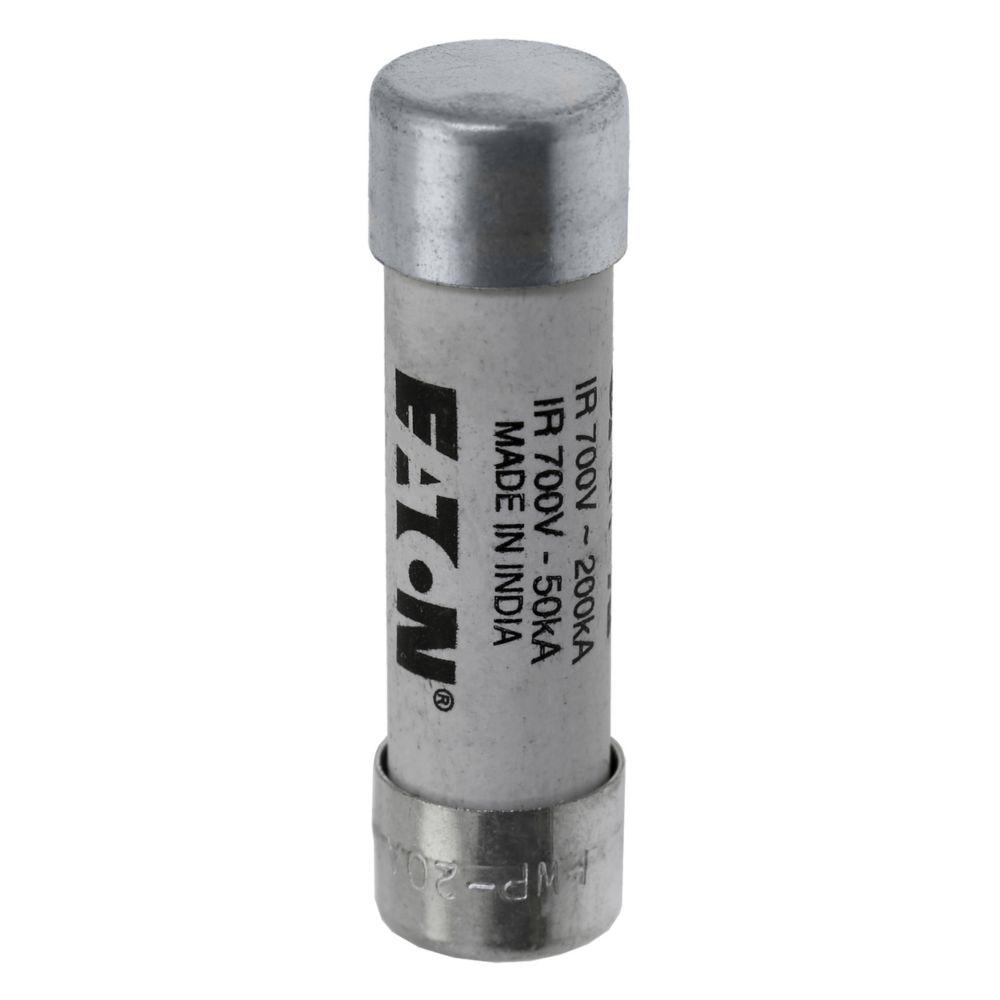

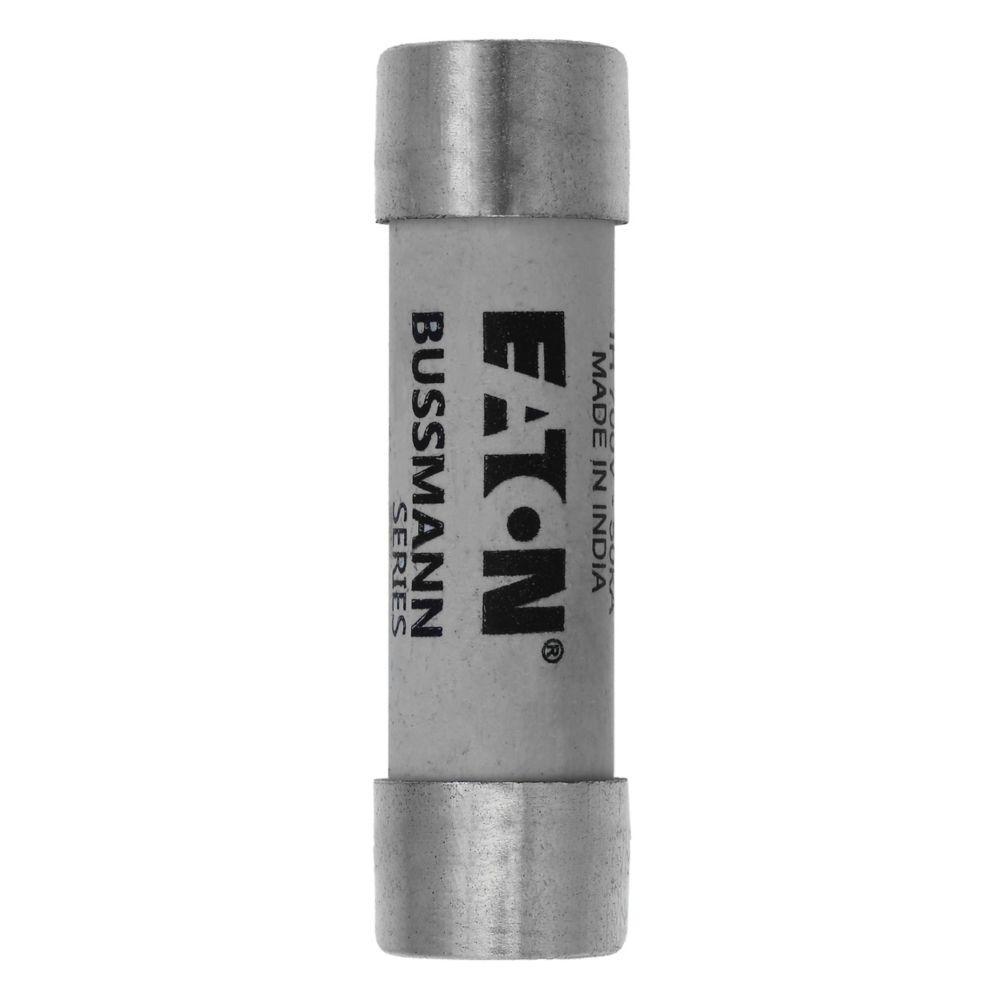

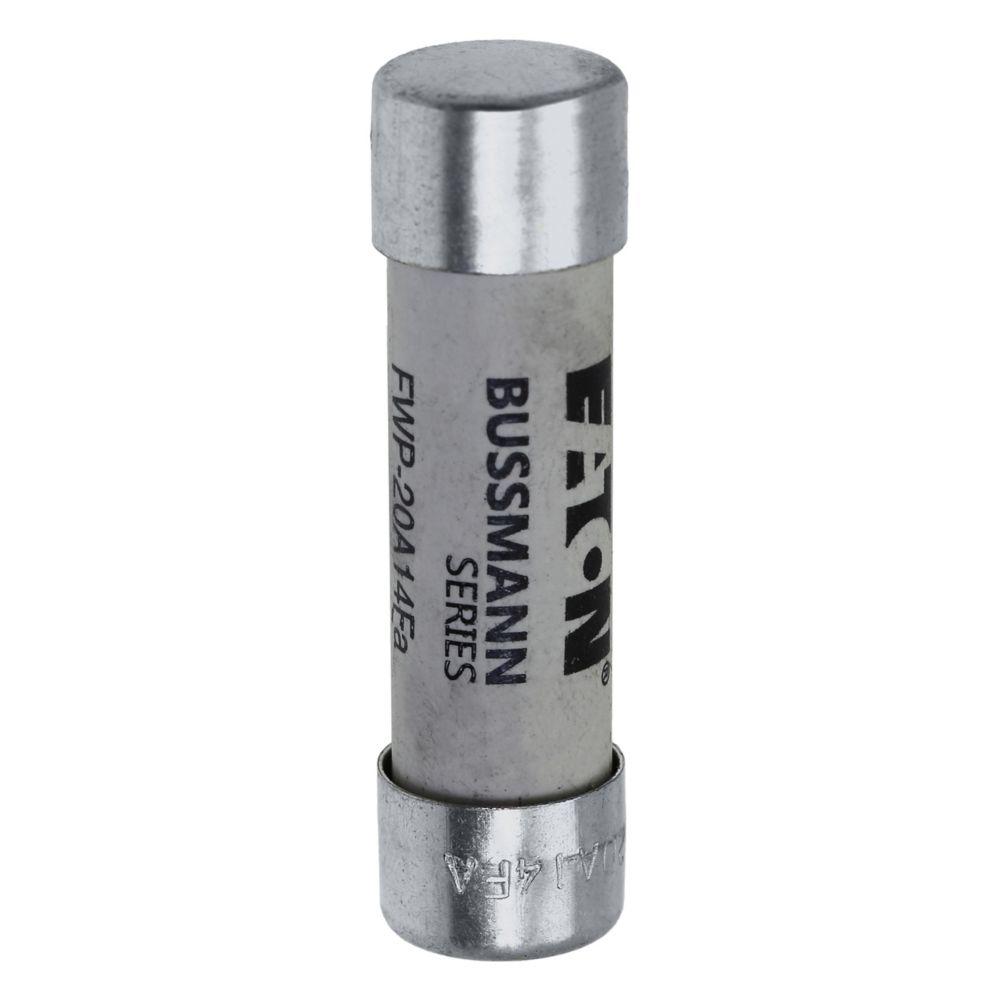

FWP-20A14F is a 20A, 700V fast acting semiconductor fuse from Eaton Bussmann, designed for high-speed protection in industrial and power distribution applications. This FWP series fuse features a ferrule mounting style, high interrupting capacity, and is UL recognized for safety and reliability. It is ideal for use in semiconductor circuits and other demanding environments requiring fast blow protection.
- Part Number: FWP-20A14F
- Manufacturer: Eaton Bussmann
- Series: FWP
- Amperage: 20A
- Voltage Rating: 700V AC, 700V DC
- Interrupt Rating: 200kAIC @ 700V AC, 50kAIC @ 700V DC
- Mounting Type: Ferrule
- Blow Characteristic: Fast Acting
- Application: Semiconductor Protection
- Certifications: UL Recognized
- Dimensions: 14mm x 51mm
- Weight: 0.04 lbs
Specifications
- Part Number: FWP-20A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 20
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712795944
- GTIN : 00051712795944
- Country of Origin : India
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04646
- Certification : CE, CSA Certified, UL Recognized
