Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWP-150

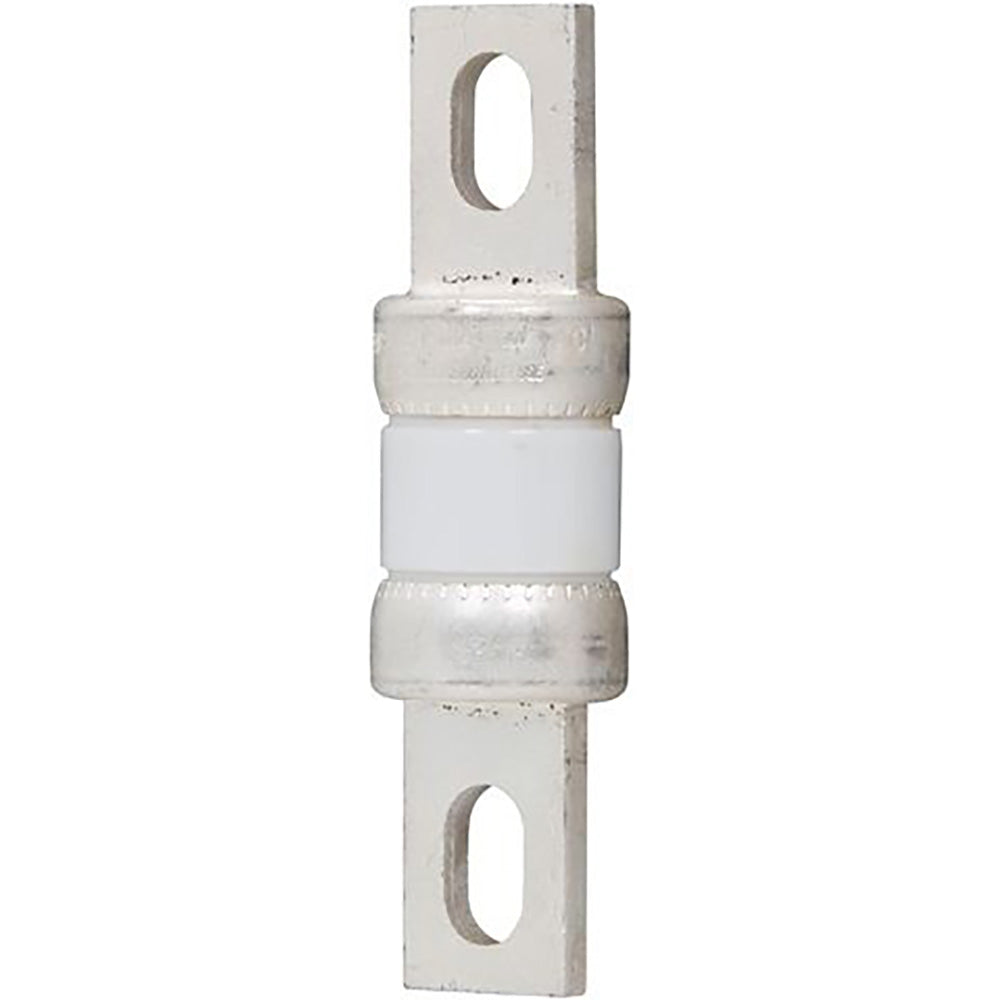

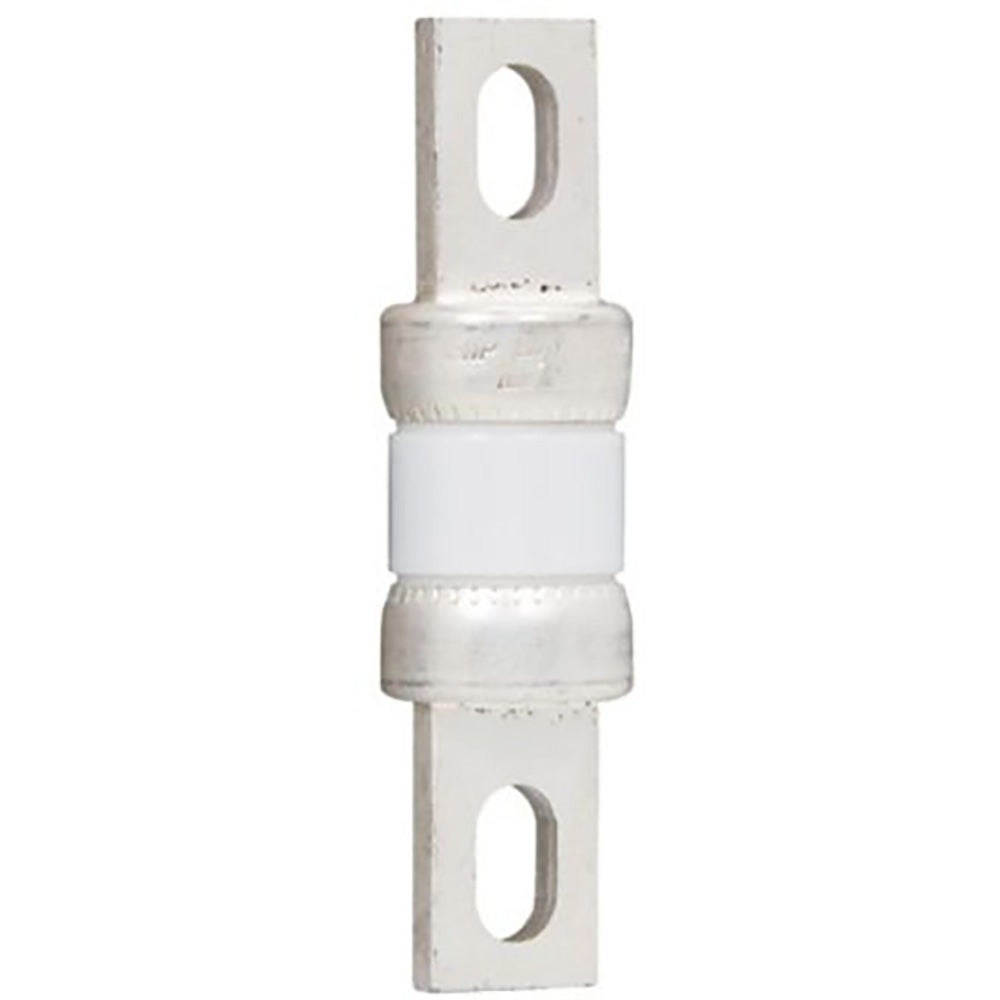

FWP-150 is a high-speed semiconductor fuse designed for demanding electrical protection applications. This Eaton Bussmann series fuse features a 150A current rating and 700VAC/VDC voltage rating, making it suitable for both AC and DC systems. The fuse is stud-mounted and features blade end connections for secure installation. The FWP-150 offers a high interrupting capacity of 200kAIC at 700VAC and 50kAIC at 700VDC, providing reliable protection in industrial and commercial power distribution systems. Its fiberglass body construction ensures durability and safety in harsh environments. The fuse is non-indicating and is UL, CSA, and CE recognized for compliance with major safety standards.
- Part Number: FWP-150
- Manufacturer: Eaton
- Series: FWP
- Amperage: 150A
- Voltage: 700VAC/VDC
- Mounting Type: Stud
- Interrupting Rating: 200kAIC at 700VAC, 50kAIC at 700VDC
- Connection Type: Blade end X blade end
- Body Material: Fiberglass
- Standards: UL, CSA, CE
- Application: Semiconductor Fuse
- Indication: Non Indicating
Specifications
- Part Number: FWP-150
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- AIC rating : 200kA@700Vac
- Connection : Bolted
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 005171250875
- GTIN : 00051712508759
- Dimensions : 5.9 in x 5.9 in x 1.25 in (Length/Depth x Height x Width)
- Weight : 0.57
- Certification : UL, CSA, CE
