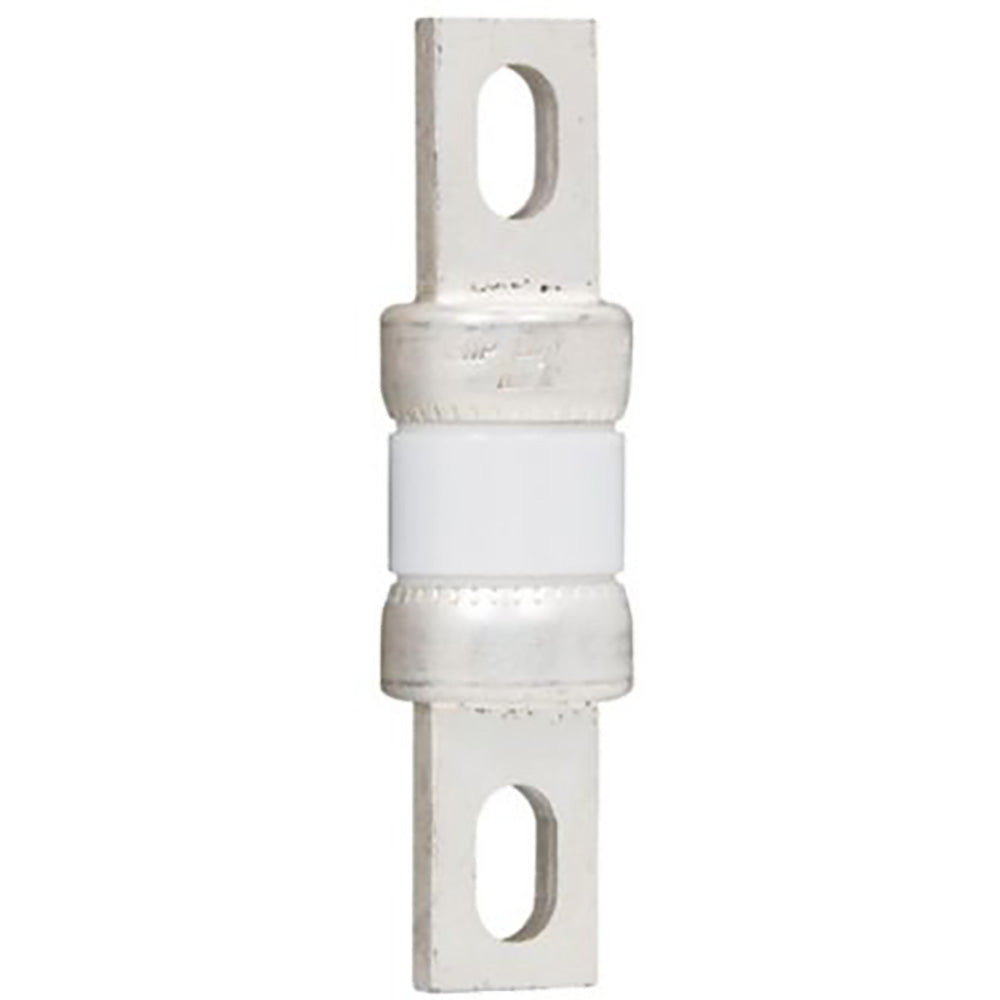

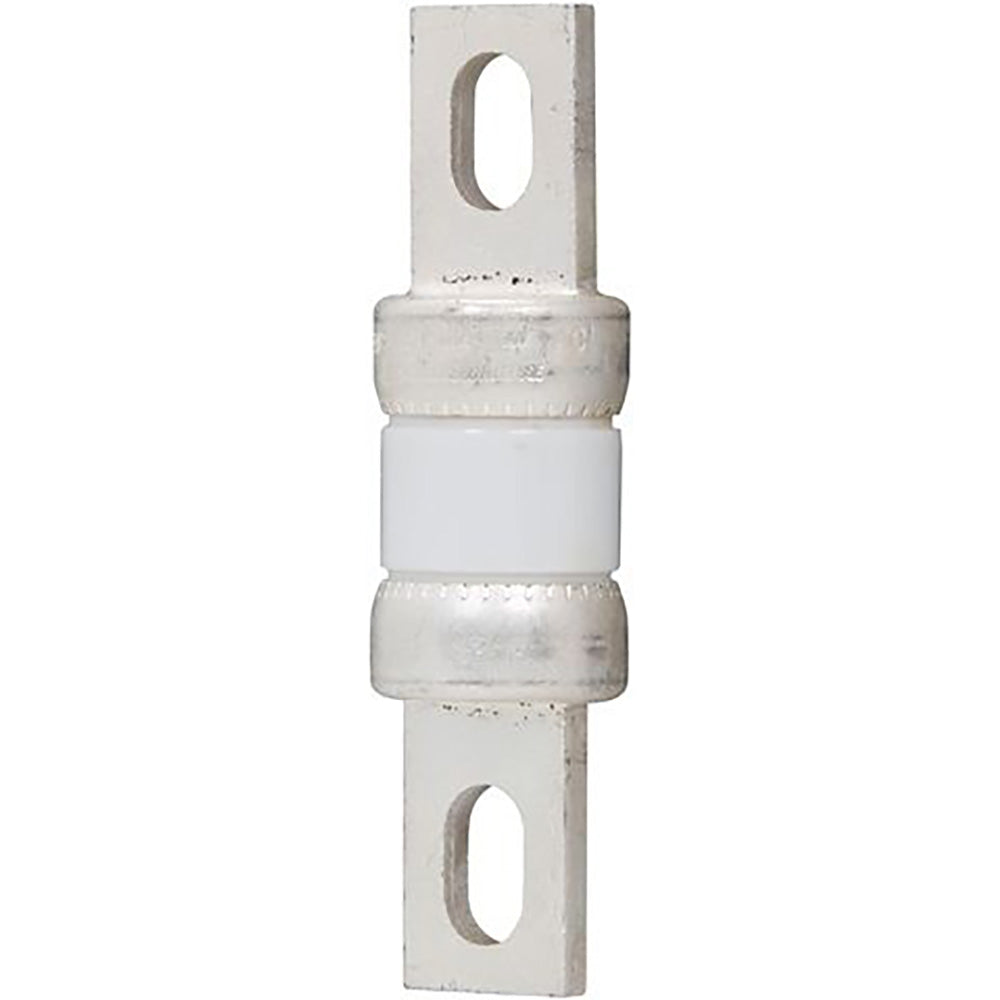

FWP-125A - Eaton Bussmann Series 125A 700V High Speed Fuse Stud Mount

FWP-125

FWP-125A is an Eaton Bussmann series high speed fuse designed for reliable circuit protection in industrial applications.FWP-125A features a 125 ampere rating with a voltage rating of 700 Vac/Vdc and a high interrupting capacity of 200 kAIC at 700 Vac and 50 kAIC at 700 Vdc. It is a non-indicating fuse with blade end to blade end connections and a stud mounting method, providing robust and secure installation. Certified by UL and CSA and compliant with CE and RoHS standards, this fuse is engineered for superior performance in DC common bus, DC drives, power converters, and reduced voltage starters.

Key Specifications
• Amperage Rating: 125A RMS
• Voltage Rating: 700 Vac/Vdc
• Interrupt Rating: 200 kAIC at 700 Vac, 50 kAIC at 700 Vdc
• Mounting Type: Stud
• Connection Type: Blade end x blade end
• Fuse Indicator: Non Indicating
• Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
• Series: Bussmann FWP
• Watt Losses: 28 W
• Product Dimensions: Approx. 5.3 in length, 1.58 in height, 1.57 in width

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWP-125
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 125
• AIC rating : 200kA@700Vac
• Connection : Bolted
• Diameter : 0.56
• Barrels : 1

Product Data

• UPC : 051712508742
• GTIN : 00051712508742
• Dimensions : 5.9 in x 5.9 in x 1.25 in (Length/Depth x Height x Width)
• Weight : 0.57
