Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWP-10A14F

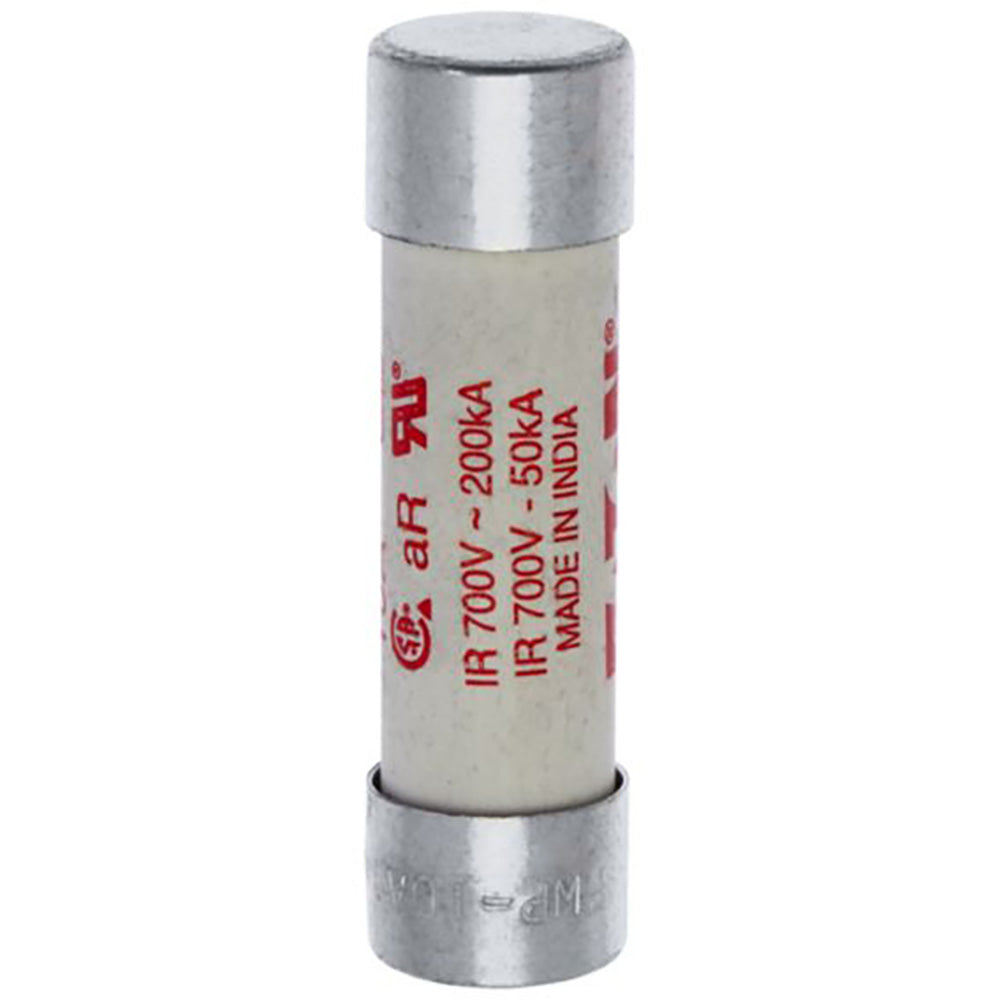

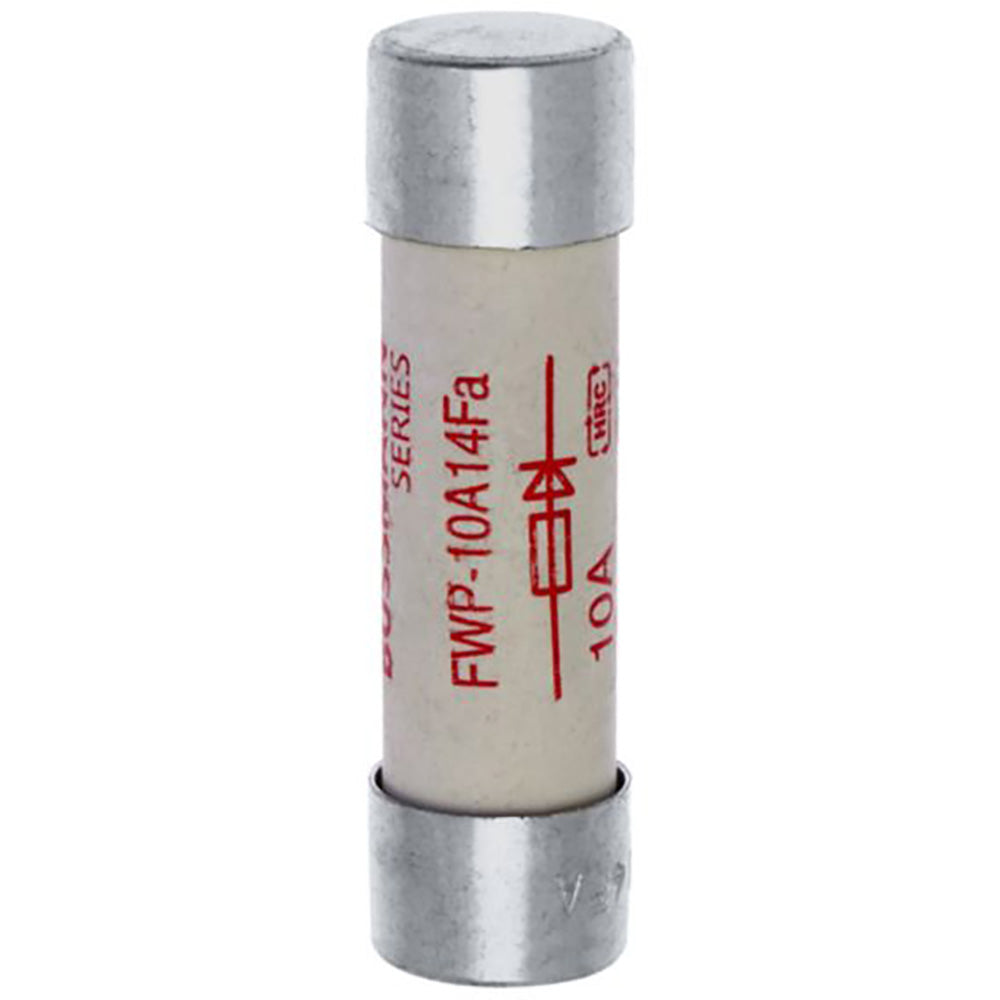

FWP-10A14F is a high-speed, fast-acting fuse designed for semiconductor protection, manufactured by Bussmann, Cooper Bussmann, and Eaton.
This fuse features a cylindrical body, non-indicating design, and is rated for high interrupting capacity in demanding electrical applications. It is suitable for use in circuits requiring rapid response to overcurrent conditions, providing reliable protection for sensitive electronic components.
-
Key Specifications
- Amperage: 10A
- Voltage: 700V AC (UL), 800V AC (some sources), 700V DC (UL), 690V AC (IEC)
- Poles: Single
- Mounting Type: Holder (ferrule/clip terminal)
- Interrupt Rating: 200,000 AIC RMS (AC), 50,000 AIC (DC)
- Series/Frame: FWP
- Trip Unit: Fast acting (high speed)
- Body Size: 0.563" dia x 2" L (14mm x 51mm)
- Class: aR (some sources list GR)
- Material: Ceramic, fiberglass
- Terminal Type: Ferrule/clip
- Certifications: UL Recognized
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWP-10A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 10
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712795920
- GTIN : 00051712795920
- Country of Origin : India
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04876
- Certification : CE, CSA Certified, UL Recognized
