FWP-100B - Eaton Bussmann 100A 700V AC/DC High Speed Semiconductor Fuse 200kA Interrupt Rating

FWP-100B

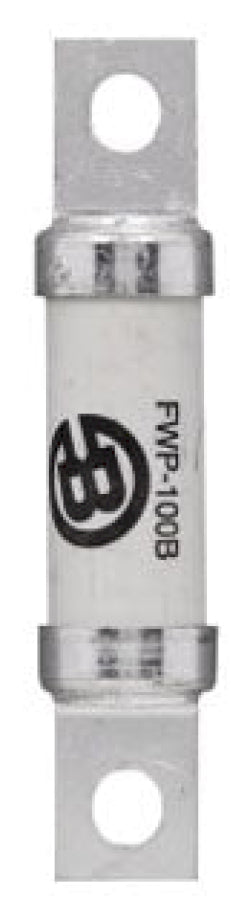

FWP-100B is a high speed semiconductor fuse from Eaton Bussmann series designed for AC/DC applications up to 700 volts with a 100 ampere rating.This cylindrical fuse features a 200 kA interrupting rating at 700 VAC and 50 kA at 700 VDC, suitable for protecting power converters, rectifiers, and DC drives. It has a 22 x 58 mm fuse size with stud mounting and complies with UL, CSA, CE, and RoHS standards.

• Amperage: 100 A
• Voltage Rating: 700 V AC / 700 V DC
• Interrupt Rating: 200 kA AC / 50 kA DC
• Fuse Type: High Speed Semiconductor
• Fuse Size: 22 x 58 mm
• Mounting Type: Stud
• Utilization Category: aR (semiconductor protection)
• Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
• Non-indicating fuse
• Weight: approx. 109 g

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWP-100B
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWP Series
• Type : FWP
• Voltage : 700
• Amperage : 100
• AIC rating : 200kA@700V
• Connection : Stud
• Diameter : 0.95
• Barrels : 1

Product Data

• UPC : 051712796040
• GTIN : 00051712796040
• Country of Origin : Hungary
• Dimensions : 112 mm x 25 mm x 25 mm (Length/Depth x Height x Width)
• Weight : 0.2507
• Certification : CE, CSA Certified, UL Recognized
