Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWP-100A22F

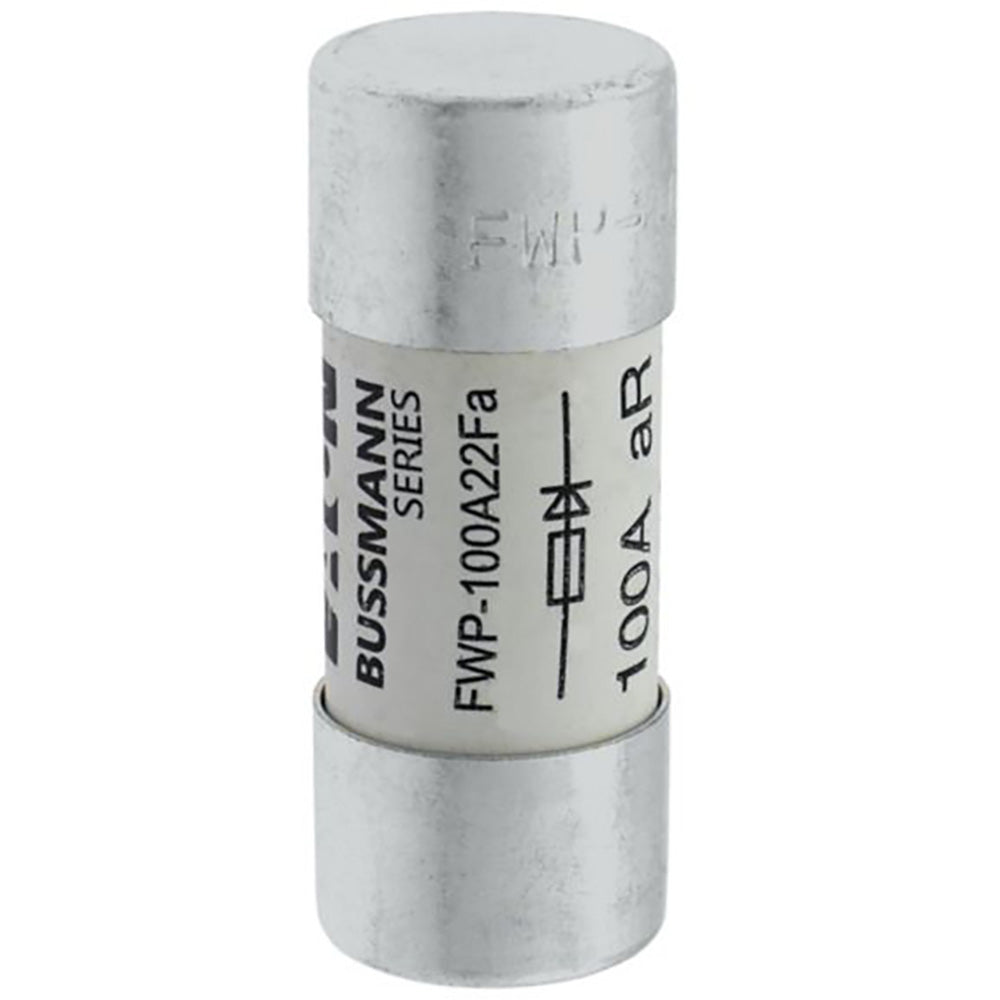

FWP-100A22F is a Bussmann semiconductor fuse rated for 100 amps and 700 volts AC/DC, designed for fast acting protection in high-speed applications.This fuse features a cylindrical cartridge design with a physical size of 0.875" x 2.283" and provides an interrupting rating of 200,000 AIC RMS at 700 VAC and 50,000 AIC at 700 VDC. It is UL Recognized and suitable for semiconductor circuit protection requiring fast response.
- Amperage: 100 Amps
- Voltage: 700 Volts AC/DC
- Fuse Type: Semiconductor
- Fast Acting
- Physical Size: 0.875" x 2.283"
- Interrupting Rating: 200,000 AIC RMS at 700 VAC
- Interrupting Rating: 50,000 AIC at 700 VDC
- Mounting Style: Cartridge Fuse Holder
- UL Recognized
- Non-Indicating
- Series: FWP
Specifications
- Part Number: FWP-100A22F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 100
- AIC rating : 200kA@700V
- Connection : Ferrule
- Diameter : 0.88
- Barrels : 1
Product Data
- UPC : 051712370882
- GTIN : 00051712370882
- Country of Origin : India
- Dimensions : 58 mm x 23 mm x 23 mm (Length/Depth x Height x Width)
- Weight : 0.1426
- Certification : CE, CSA Certified, UL Recognized
