Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

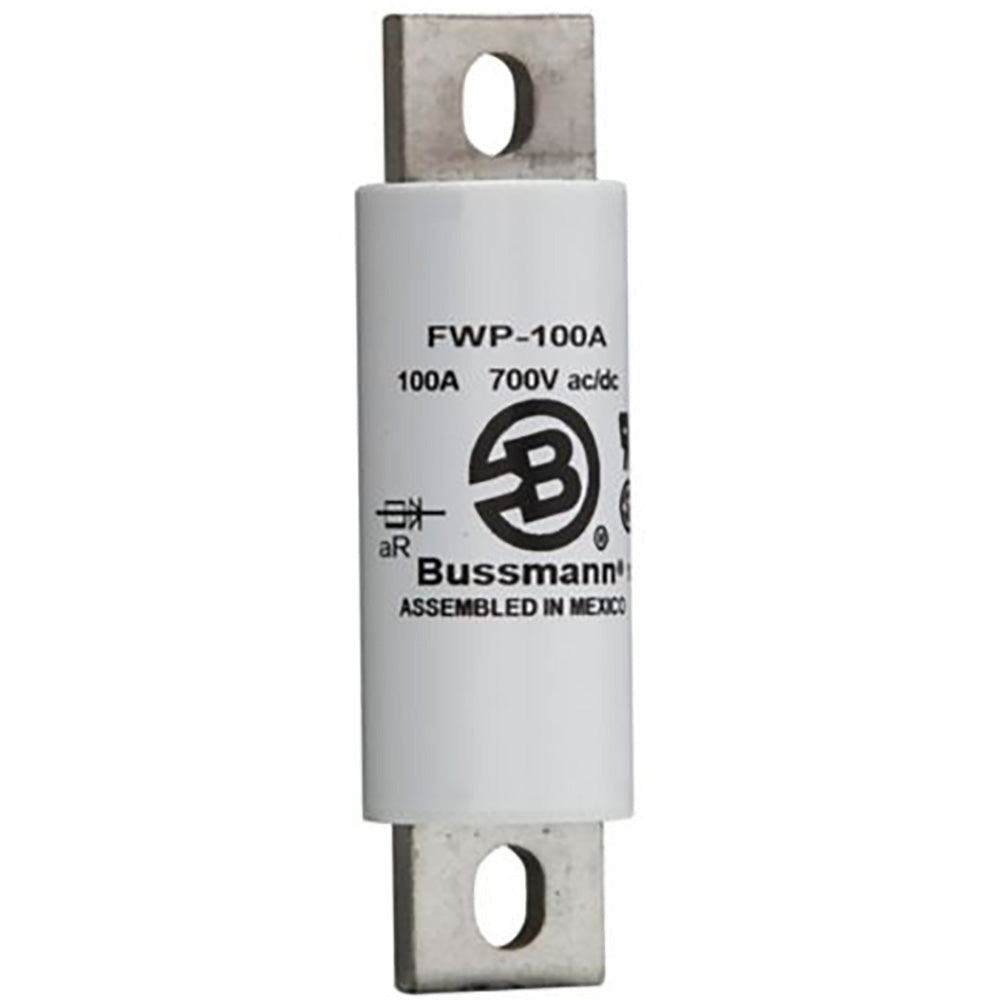

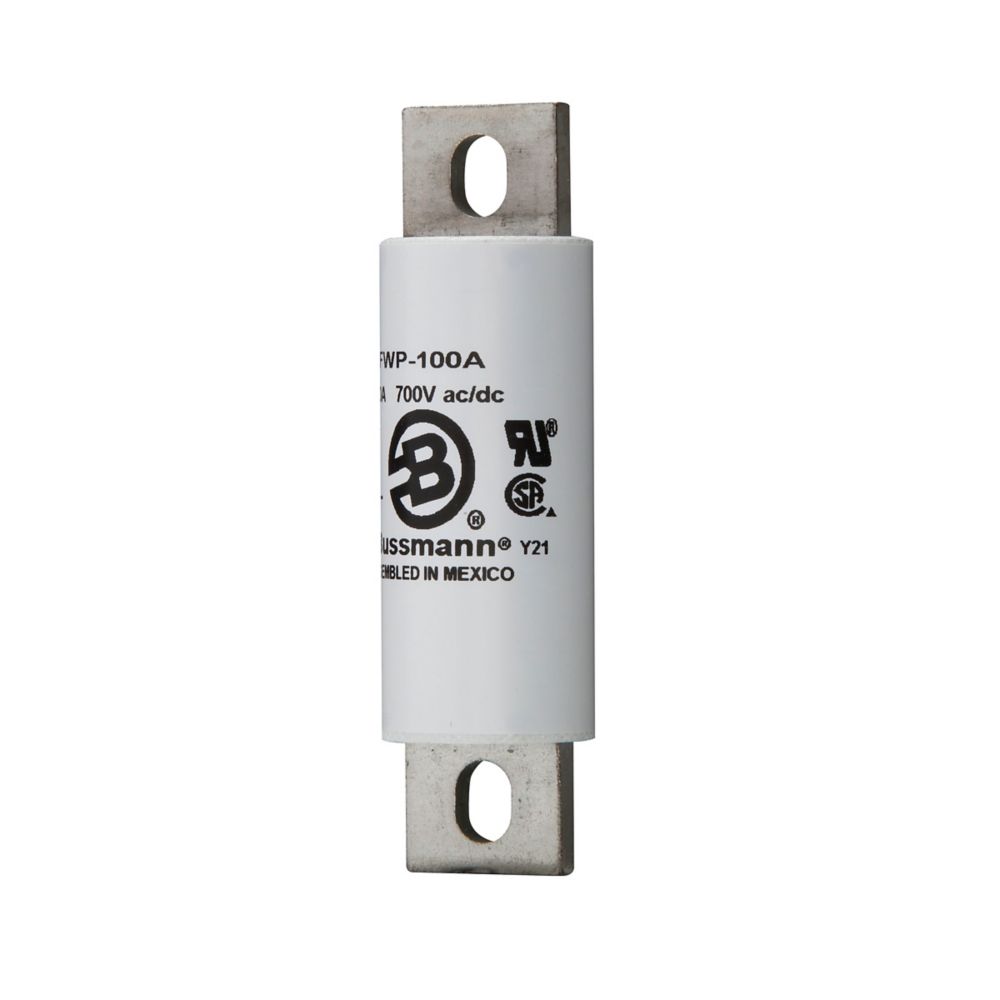

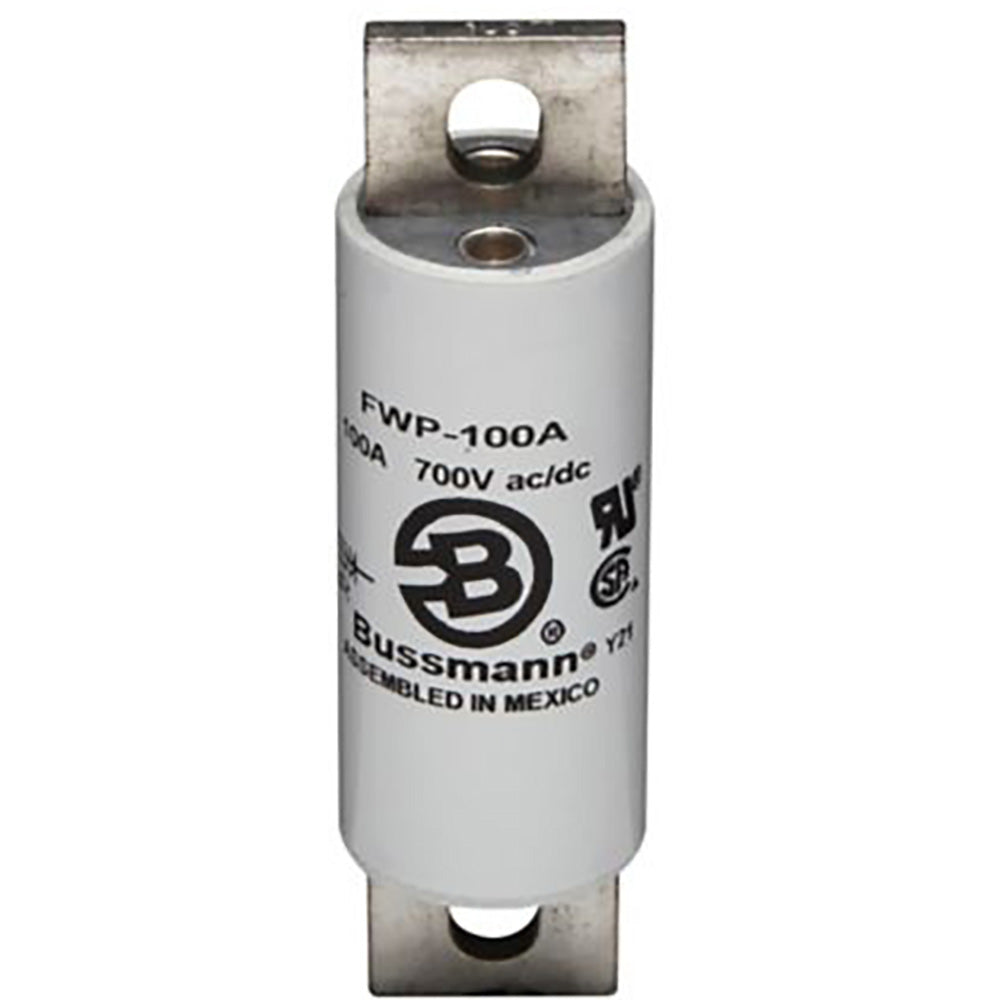

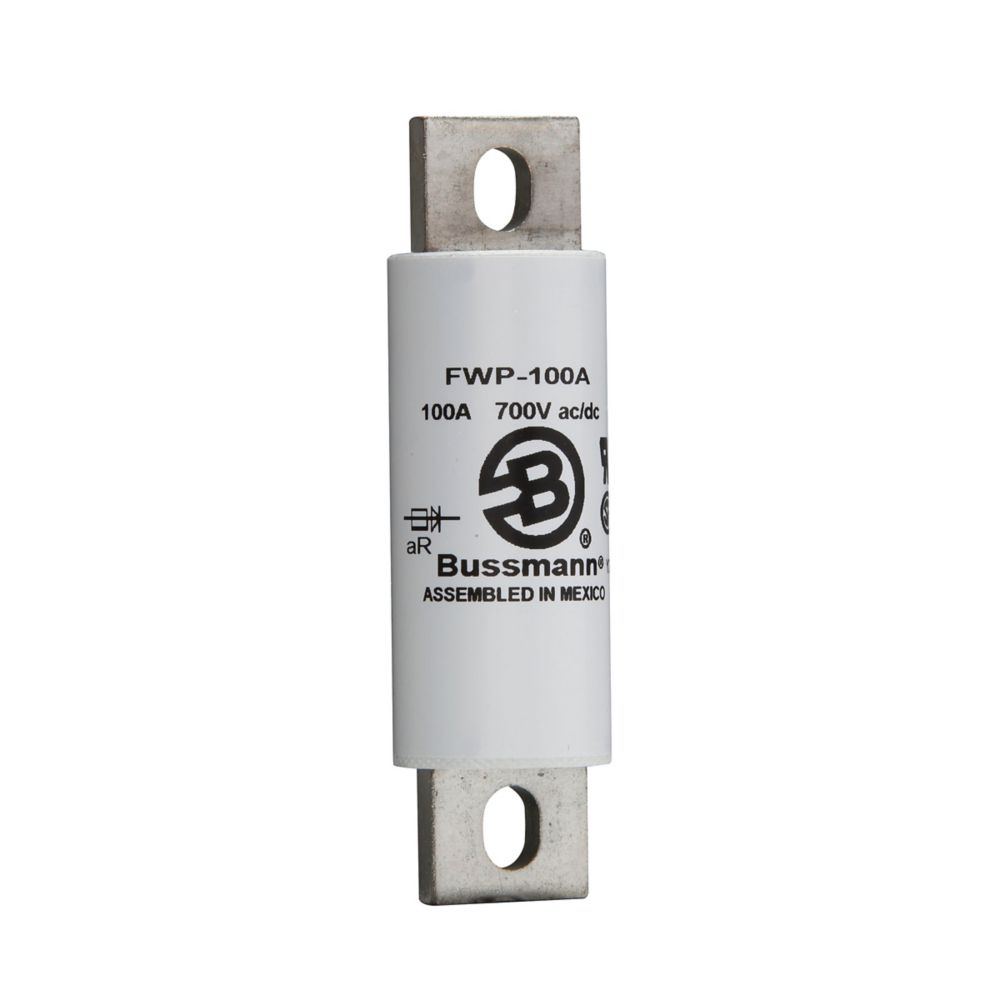

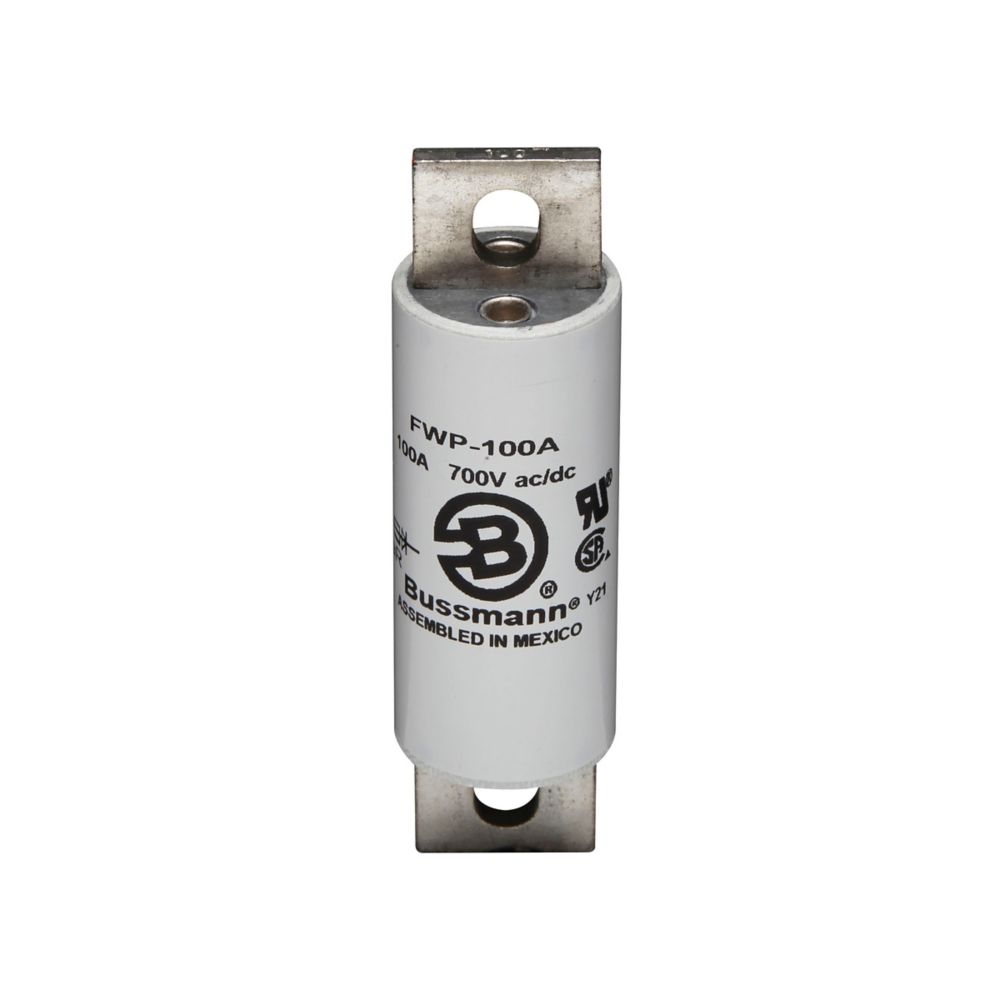

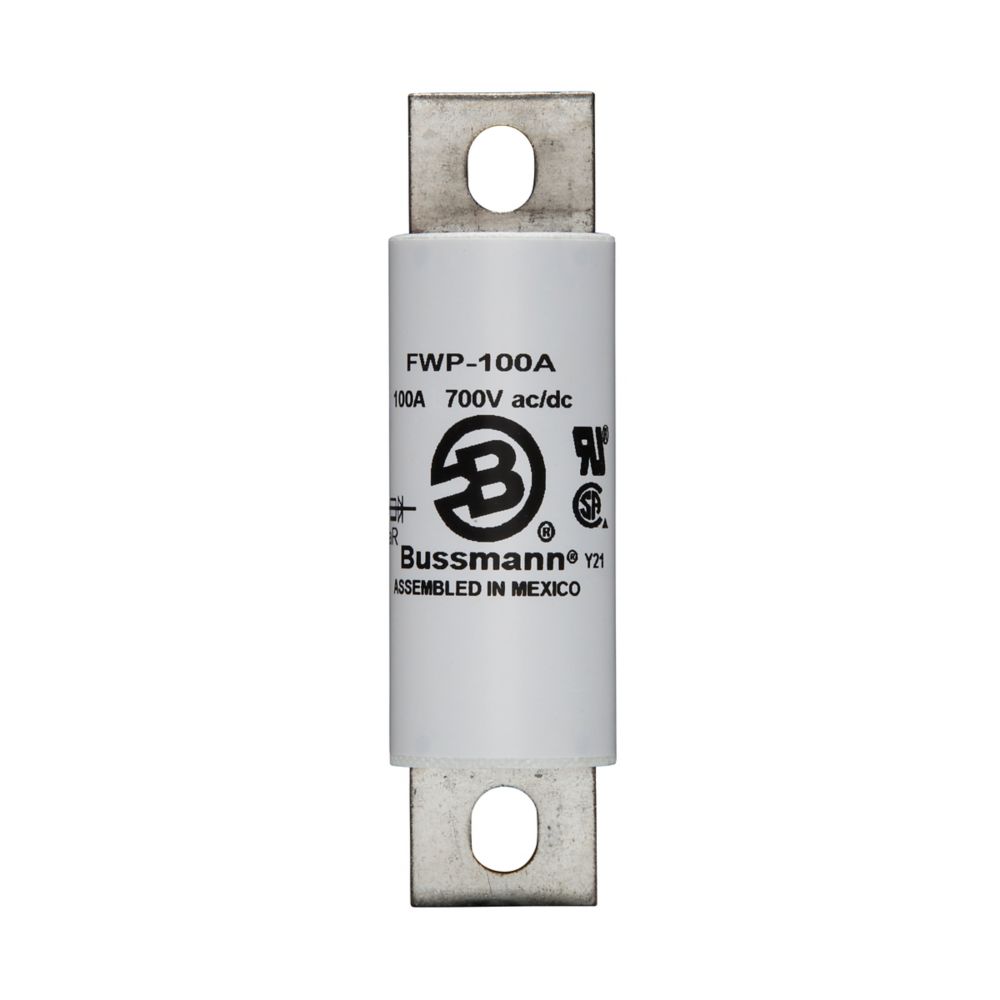

FWP-100A
FWP-100A is a high speed fuse from Eaton Bussmann series designed for semiconductor protection with a 100 amp rating and 700 volts AC/DC capacity.This fuse features a stud mounting method, fast-acting trip characteristics, and a high interrupting rating of up to 200,000 AIC at 480V AC and 50,000 AIC at 700 VDC. It is UL Recognized and RoHS compliant, making it suitable for demanding industrial and electronic applications.
- Amperage: 100 A
- Voltage Rating: 700 V AC/DC
- Mounting Type: Stud
- Fuse Type: High Speed Semiconductor
- Interrupting Rating: 200,000 AIC RMS at 480V AC
- Interrupting Rating: 50,000 AIC at 700 VDC
- Trip Unit: Fast Acting
- Dimensions: Approx. 4.59 in length, 1.35 in height, 1.32 in width
- UL Recognized
- RoHS Compliant
- Weight: 0.39 lbs
Specifications
- Part Number: FWP-100A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWP Series
- Type : FWP
- Voltage : 700
- Amperage : 100
- AIC rating : 200kA@700V
- Connection : Stud
- Diameter : 0.81
- Barrels : 1
Product Data
- UPC : 051712150354
- GTIN : 00051712150354
- Country of Origin : Mexico
- Dimensions : 4.59 in x 1.35 in x 1.32 in (Length/Depth x Height x Width)
- Weight : 0.39
- Certification : CE, CSA Certified, UL Recognized
