Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

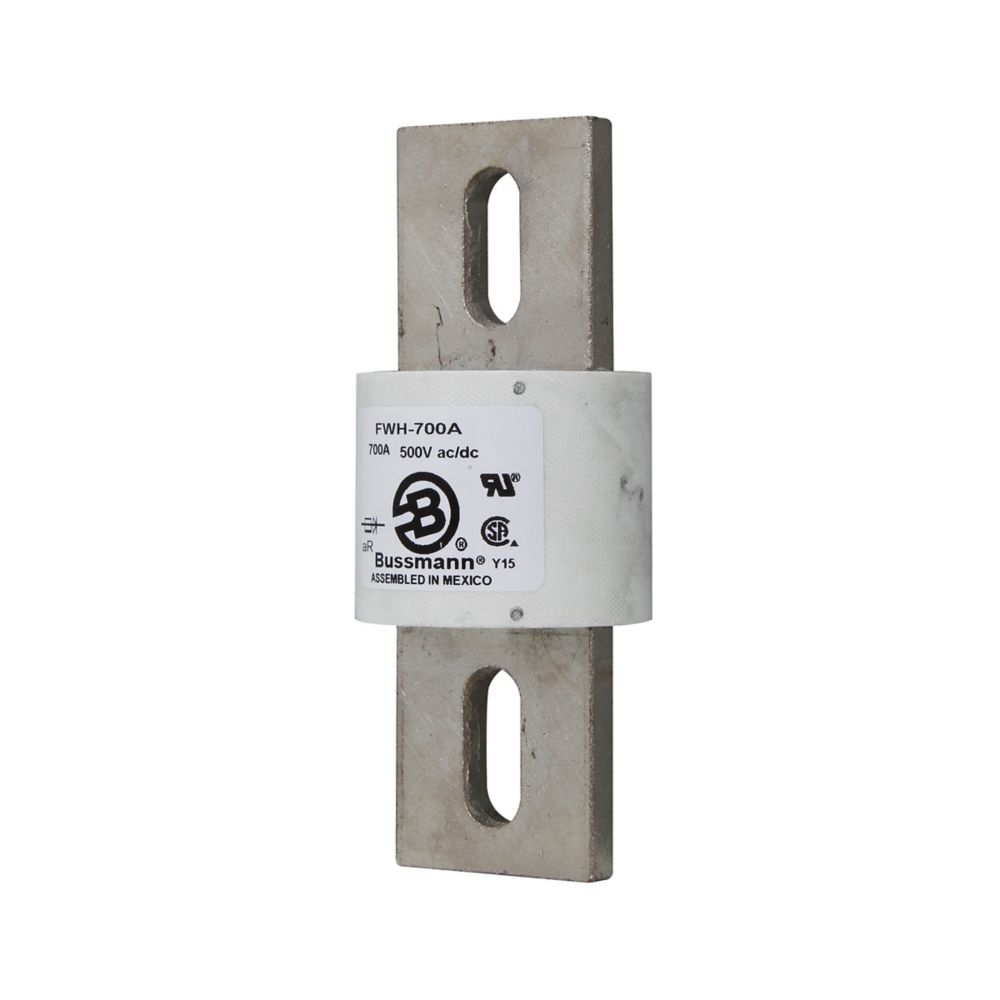

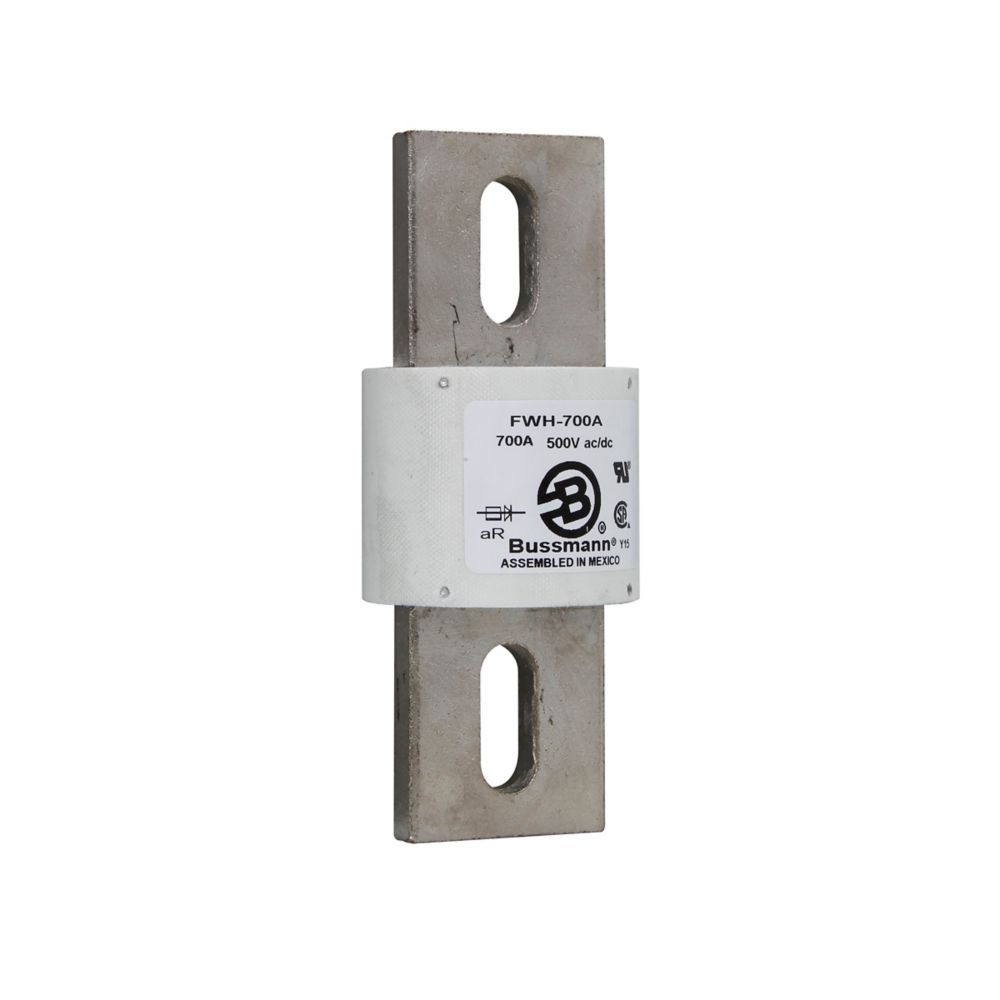

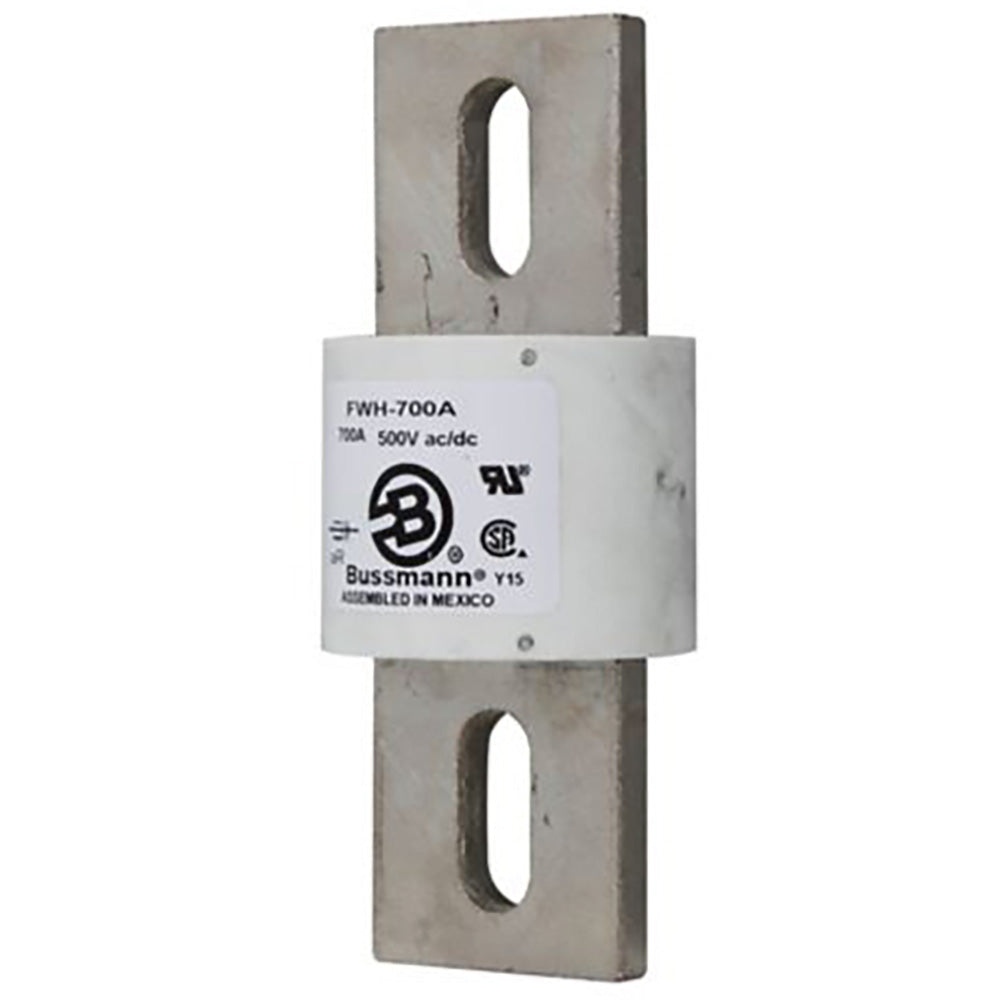

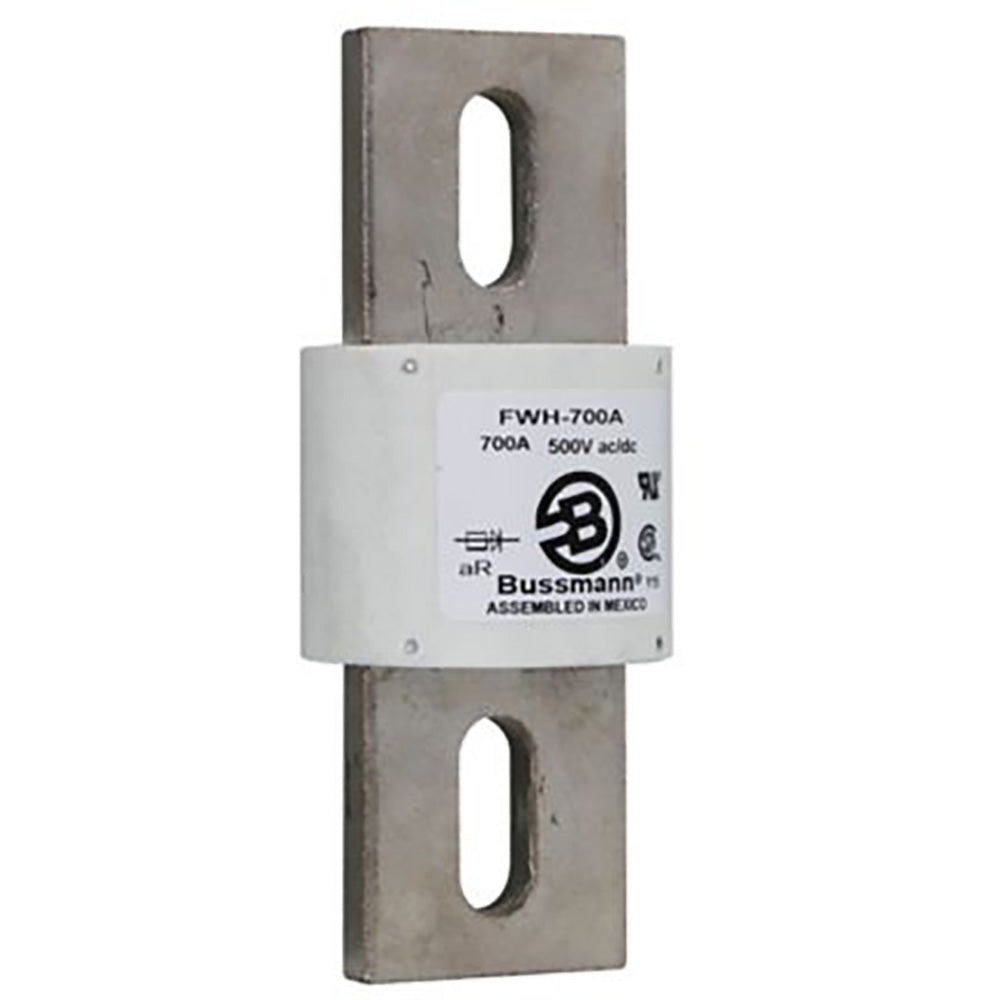

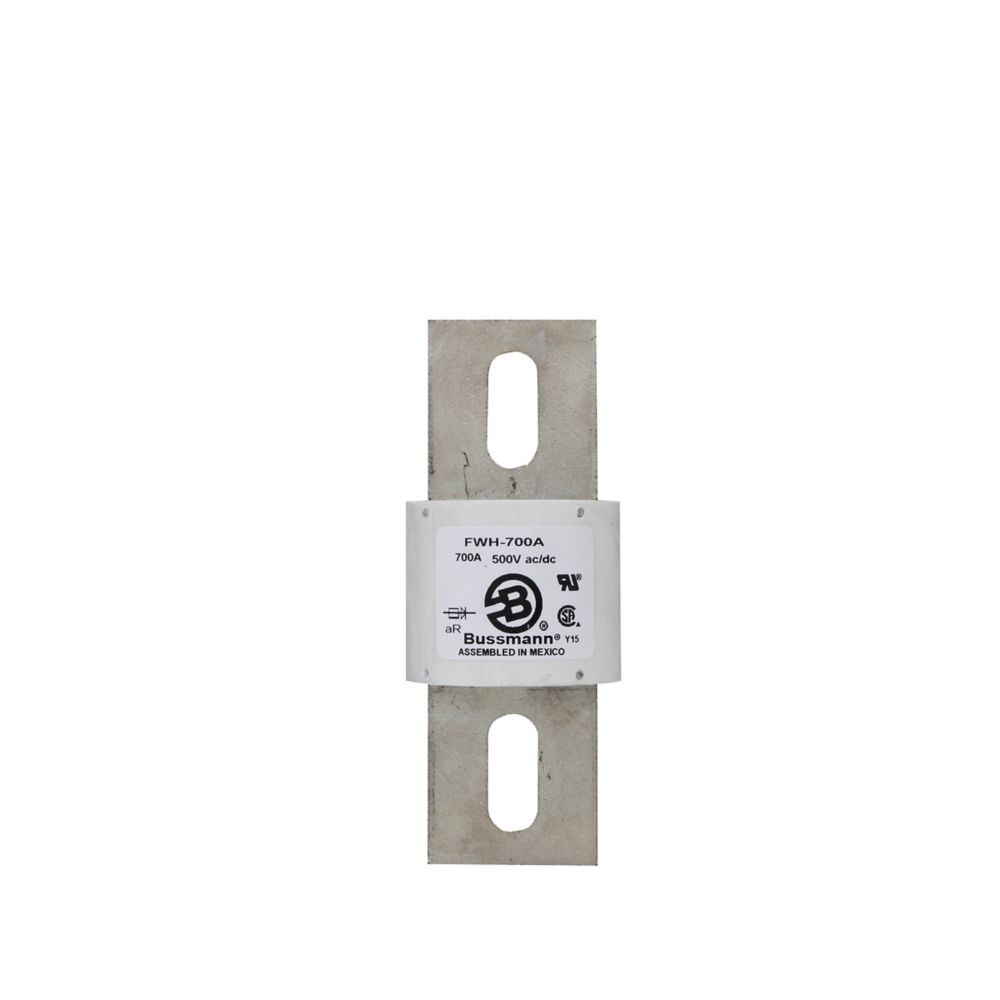

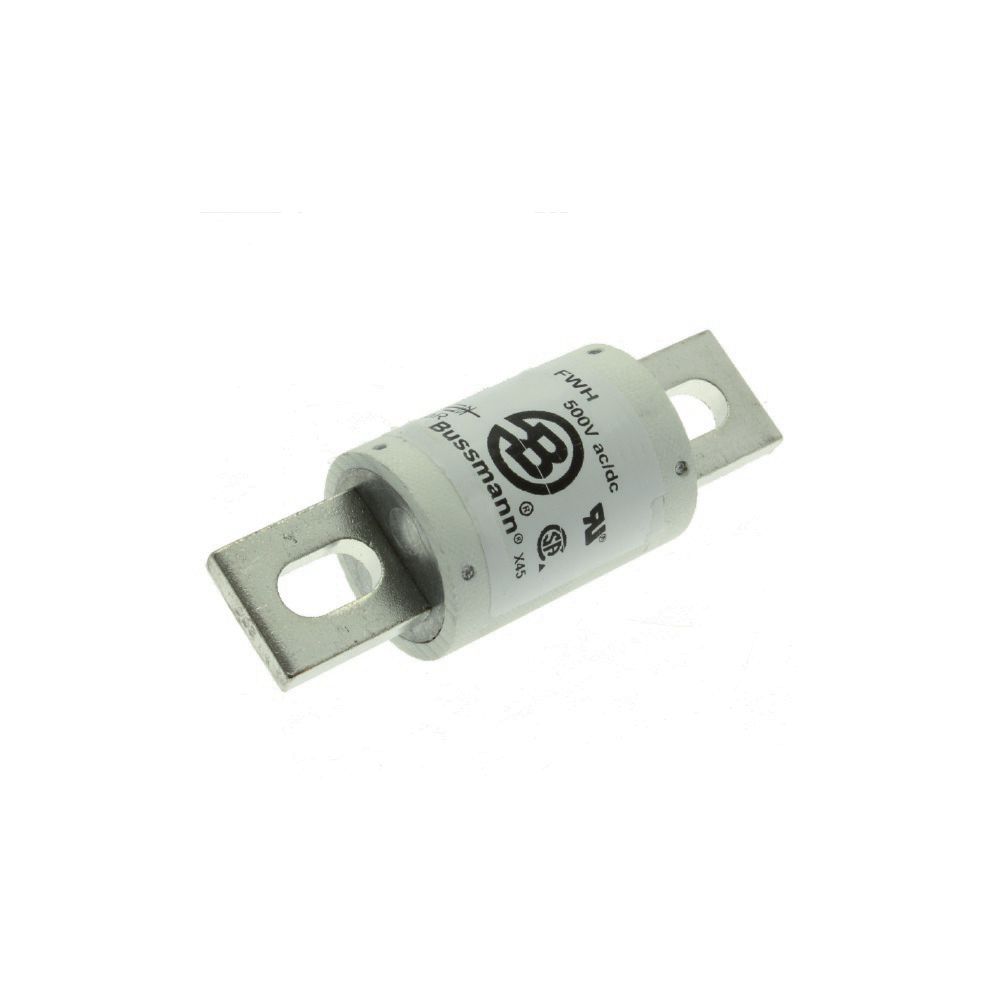

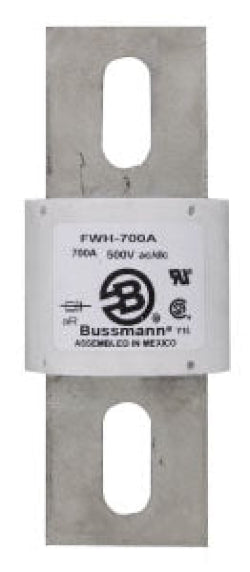

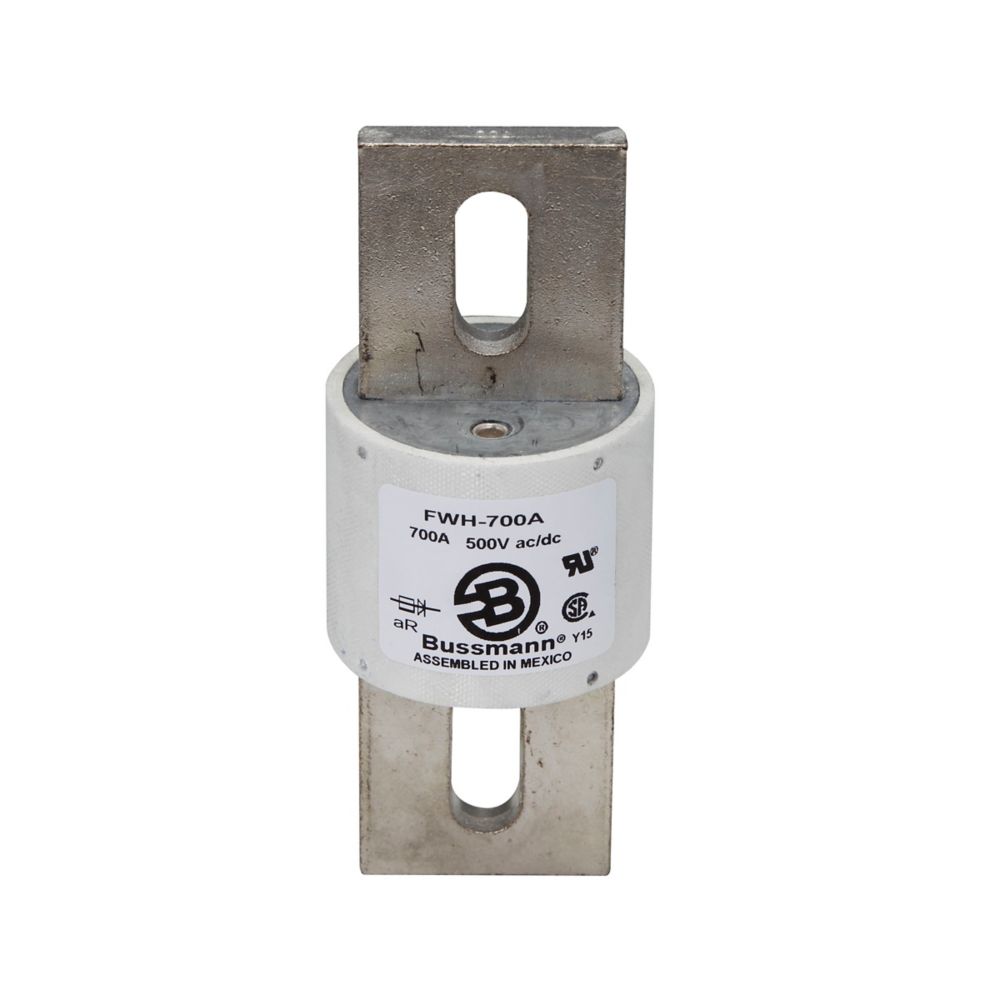

FWH-700A
FWH-700A is a high speed fuse from Eaton Bussmann series rated for 700A RMS with a 200 kA interrupt rating at 1000 Vac.
This fuse features a stud mounting method with blade end to blade end connection, designed for semiconductor protection. It has a 120W power loss, measures 6.5 inches in length, and is non-indicating. Certified by CSA and UL, it is CE marked and RoHS compliant for safety and environmental standards.
- Key Specifications
- Amperage Rating: 700A RMS
- Voltage Rating: 1000 Vac / 500 Vdc
- Interrupt Rating: 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc
- Mounting Type: Stud
- Connection: Blade end x blade end
- Fuse Indicator: Non Indicating
- Power Loss: 120 W
- Length: 6.5 in
- Width/Height: 2.5 in
- Weight: 1.895 lb
- Certifications: CSA Certified, UL Recognized, CE Marked, RoHS Compliant
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWH-700A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 700
- AIC rating : 200kA@500V
- Connection : Stud
- Diameter : 2.5
- Barrels : 1
Product Data
- UPC : 051712150231
- GTIN : 00051712150231
- Country of Origin : Mexico
- Dimensions : 6.5 in x 2.5 in x 2.5 in (Length/Depth x Height x Width)
- Weight : 1.895
- Certification : CE, CSA Certified, UL Recognized
