Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

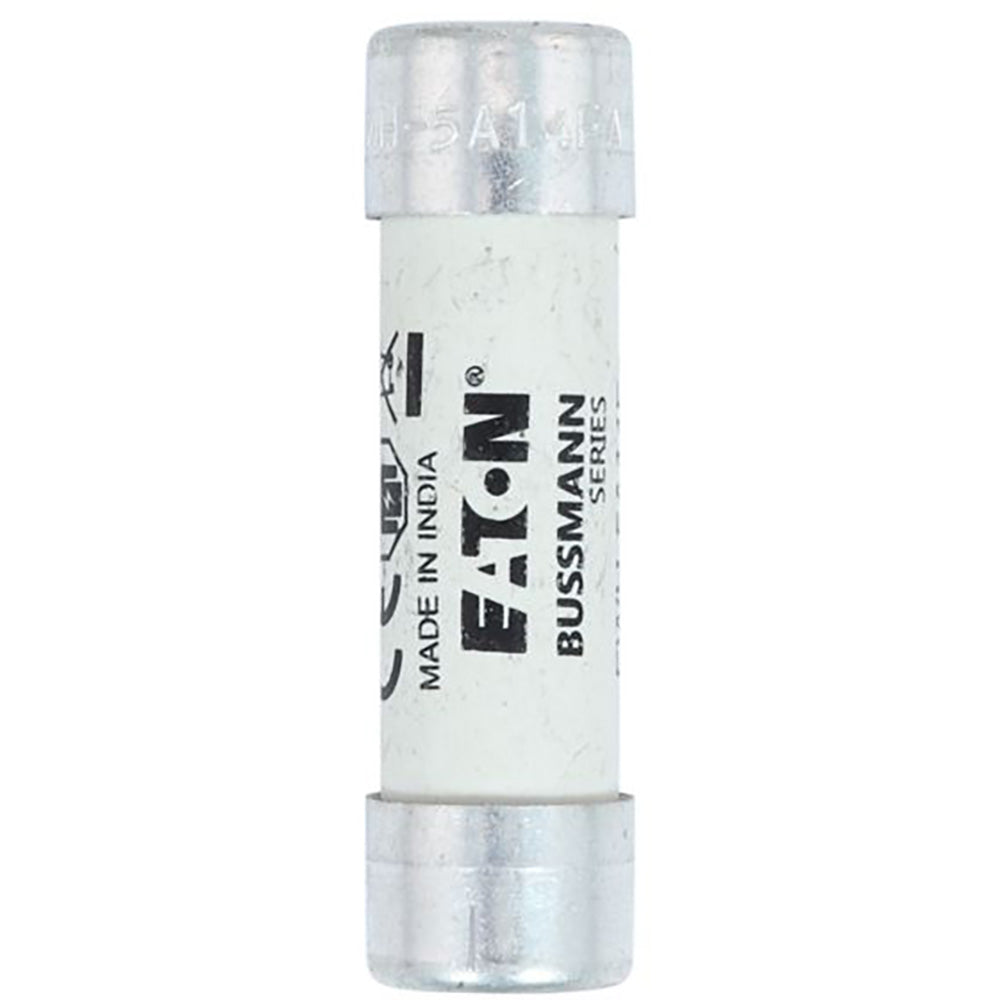

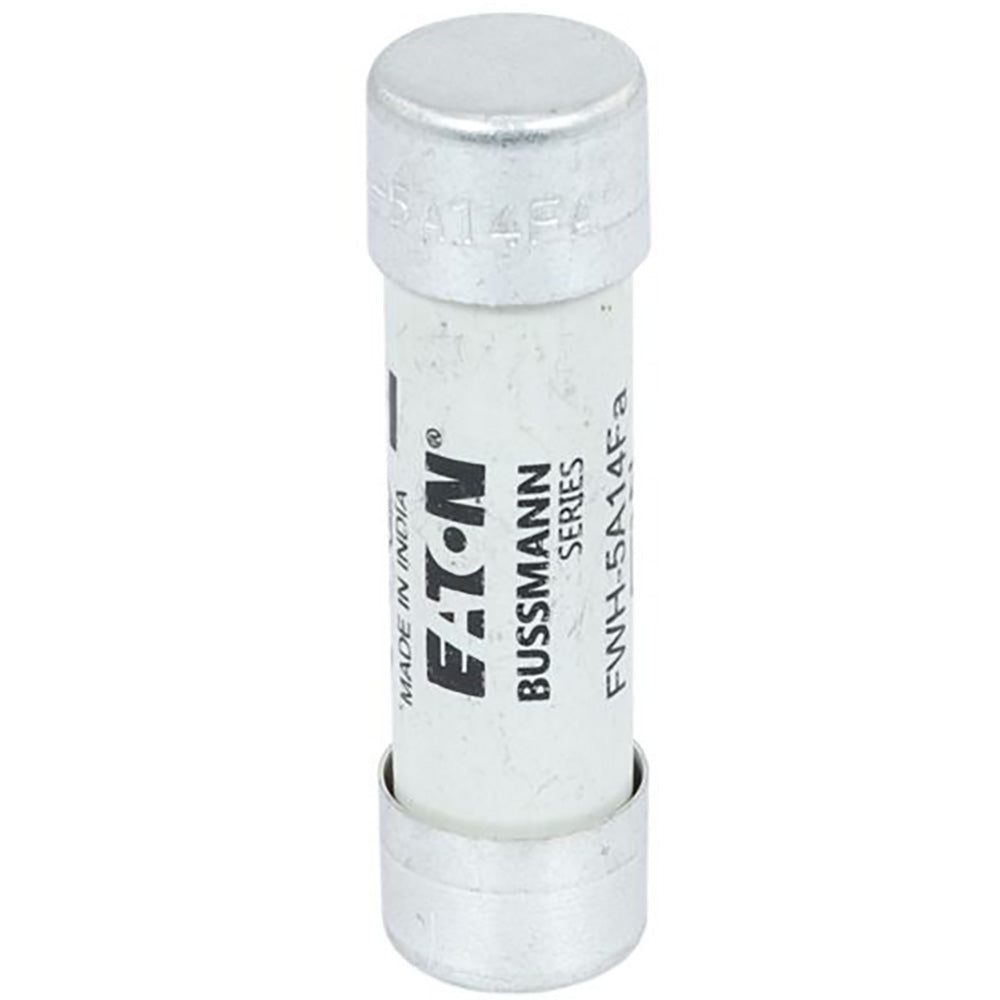

FWH-5A14F
FWH-5A14F is a high speed fuse from Eaton's Bussmann series designed for fast and reliable circuit protection.This 5 amp fuse features a 1200V AC voltage rating with a ferrule end to ferrule end connection type. It offers a high interrupt rating of 200 kAIC at 1200V AC and 50 kAIC at 500V DC, suitable for demanding industrial applications. The fuse is non-indicating and requires a holder for mounting. It is part of Eaton's FWH series known for high speed response and robust performance.
- Key Specifications
- Amperage: 5A
- Voltage Rating: 1200V AC
- Mounting Type: Requires Holder
- Fuse Type: Cartridge
- Connection: Ferrule End X Ferrule End
- Interrupt Rating: 200 kAIC at 1200V AC, 50 kAIC at 500V DC
- Series: Bussmann FWH
- Indication: Non-Indicating
- Clearing I2T: 6.4 at 500V
- Frequency Rating: Minimum 45 Hz
- Part Number: FWH-5A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 5
- AIC rating : 200kA@500V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
- UPC : 05171237079
- GTIN : 00051712370790
- Country of Origin : India
- Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
- Weight : 0.04876
- Certification : CSA Certified ,UL Recognized,CE Marked
