Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

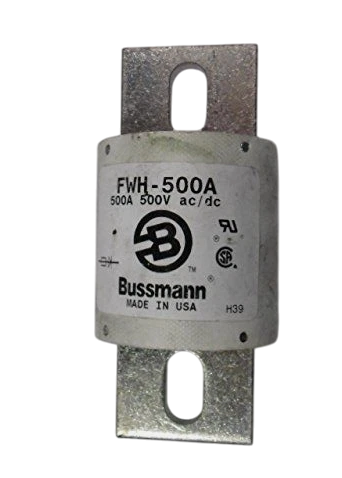

FWH-500
FWH-500 is a high speed fuse from the Eaton Bussmann series, designed for reliable circuit protection in demanding electrical applications. This fuse features a blade end to blade end connection and is non-indicating, providing fast-acting protection for sensitive equipment. The FWH-500 is rated for 500A RMS current, 750VAC and 750VDC voltage, and offers an interrupting rating of 200kAIC at 1000VAC and 50kAIC at 500VDC. It is suitable for use in industrial, commercial, and power distribution systems where high-speed protection is required. The fuse is CE marked, RoHS compliant, CSA certified, and UL recognized.
- Part Number: FWH-500
- Manufacturer: Eaton
- Series: Bussmann Series FWH
- Amperage Rating: 500A RMS
- Voltage Rating: 750VAC, 750VDC
- Interrupting Rating: 200kAIC at 1000VAC, 50kAIC at 500VDC
- Mounting Type: Blade End X Blade End
- Indication Type: Non-Indicating
- Compliance: CE, RoHS, CSA, UL
- Application: High Speed Fuse for Power Distribution
- Product Weight: 0.92 lb
- Product Length: 5.3 in
Specifications
- Part Number: FWH-500
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 500
Product Data
- Weight : 5.19
