Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWH-40B

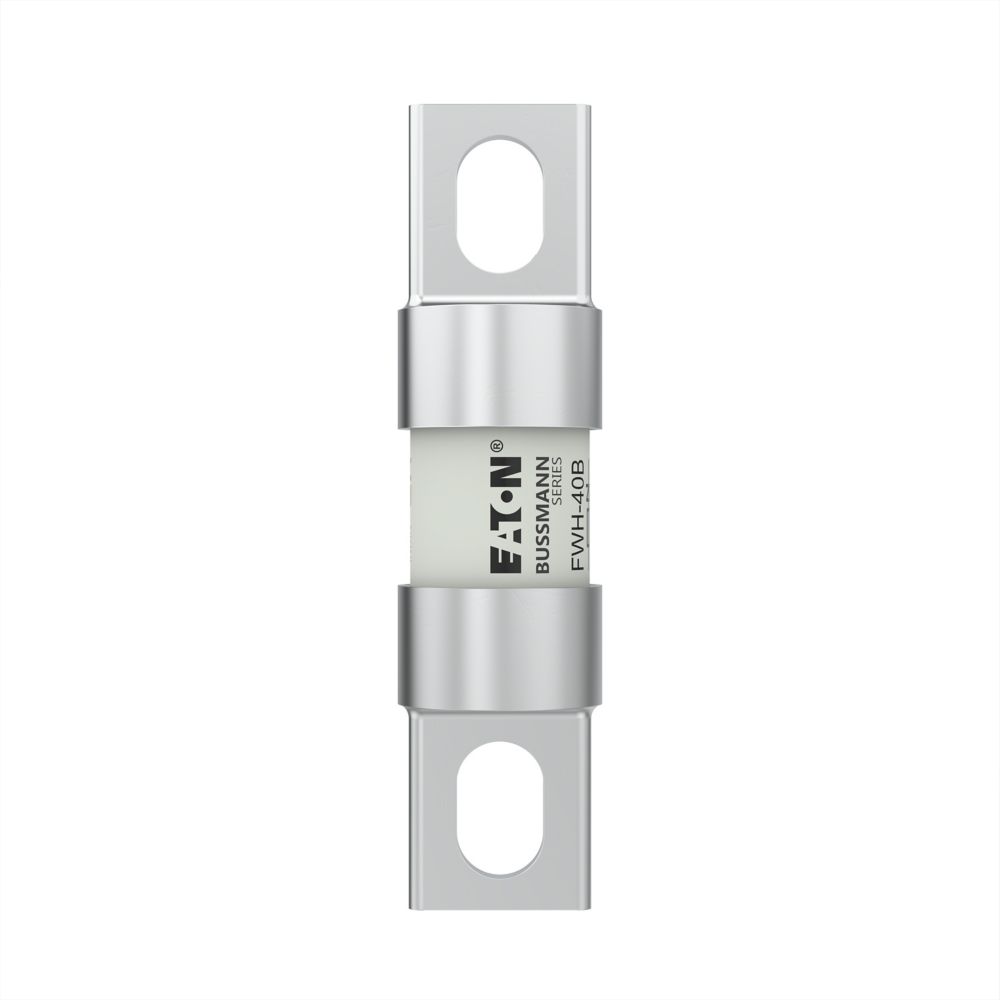

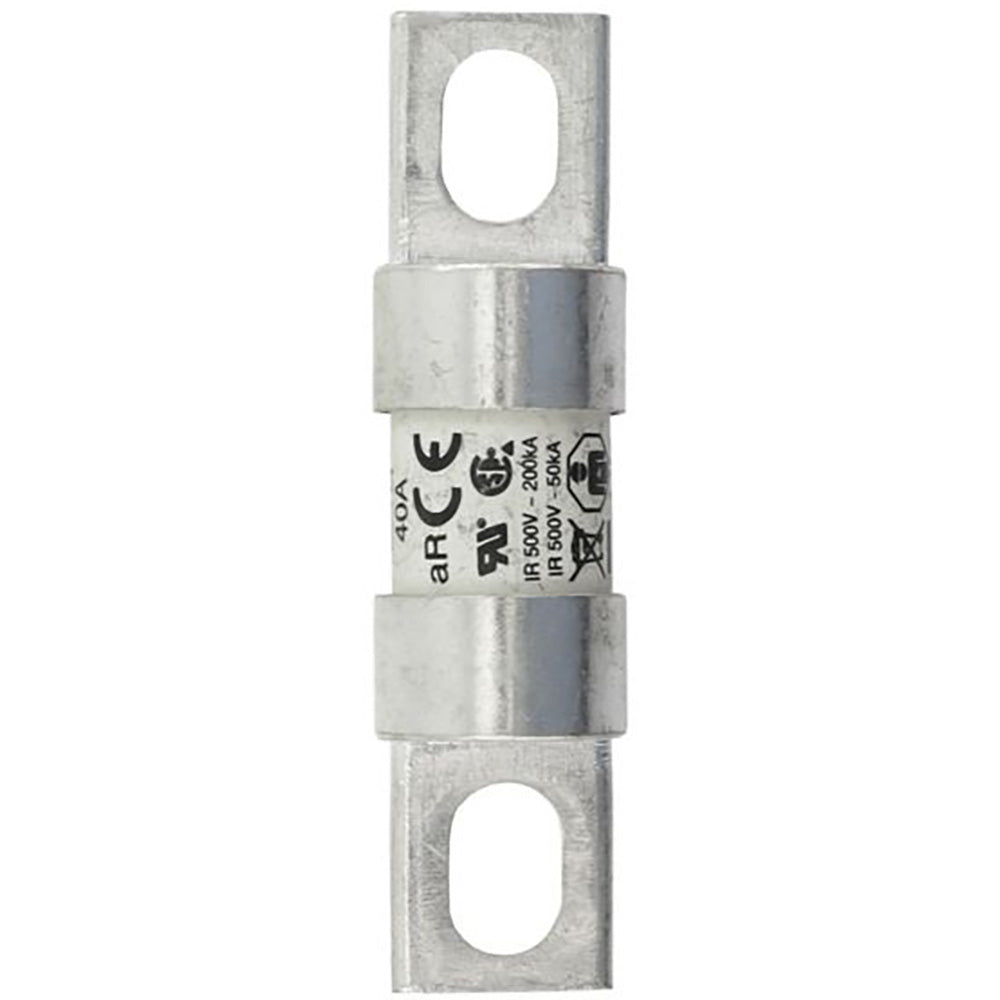

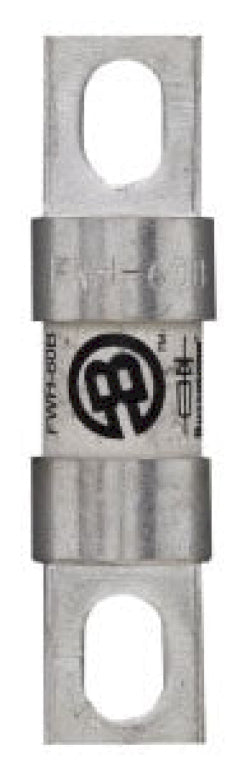

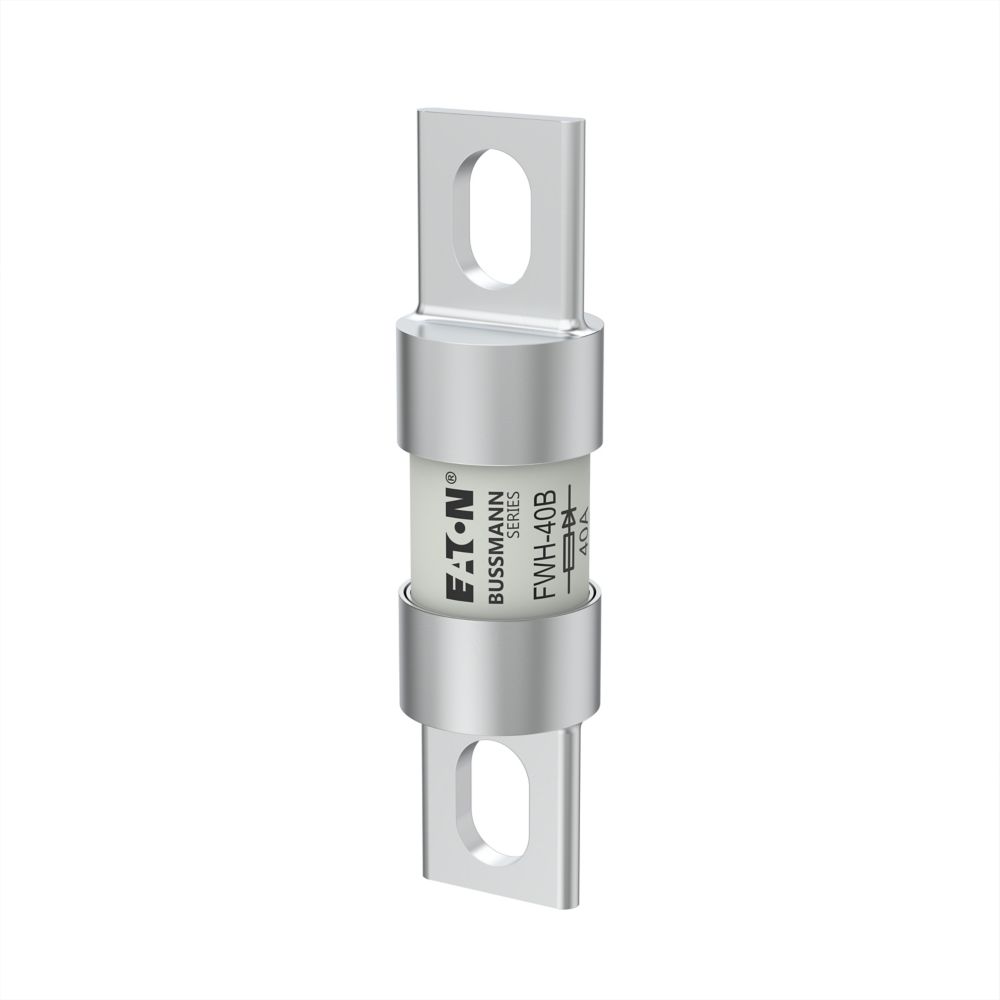

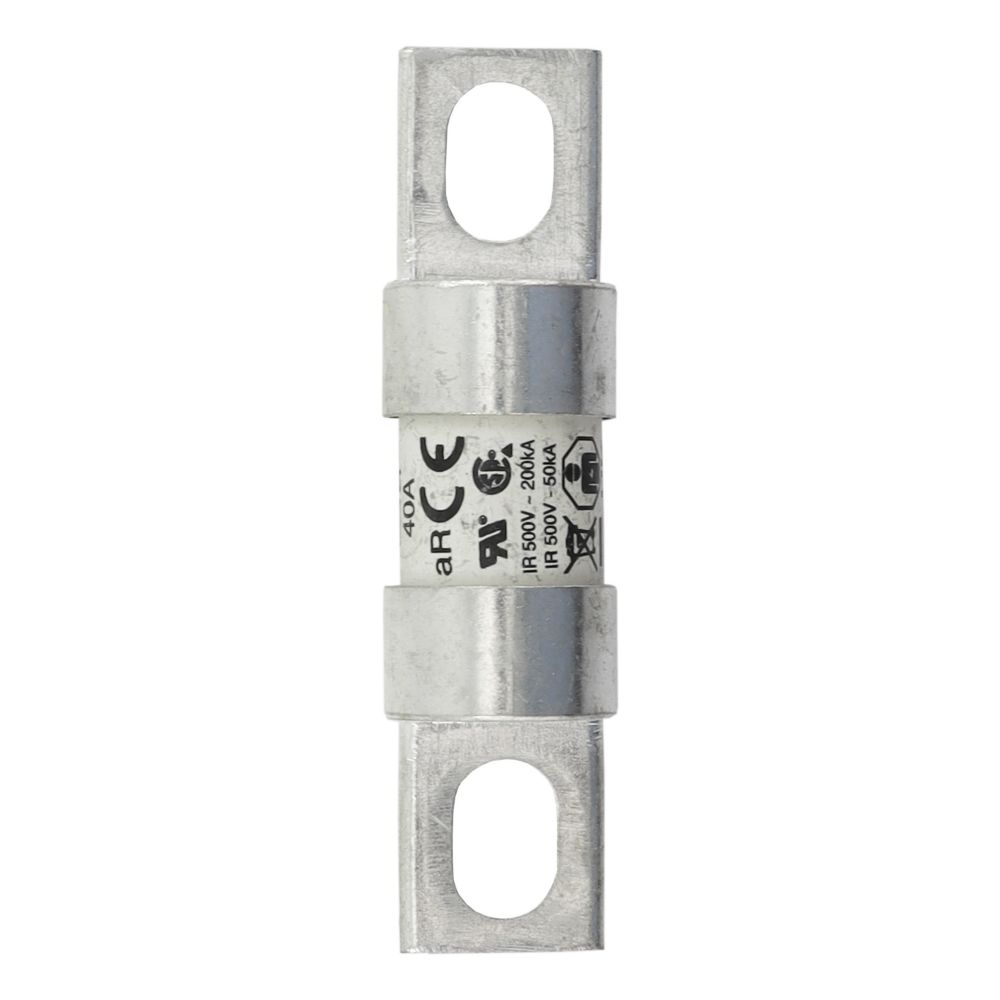

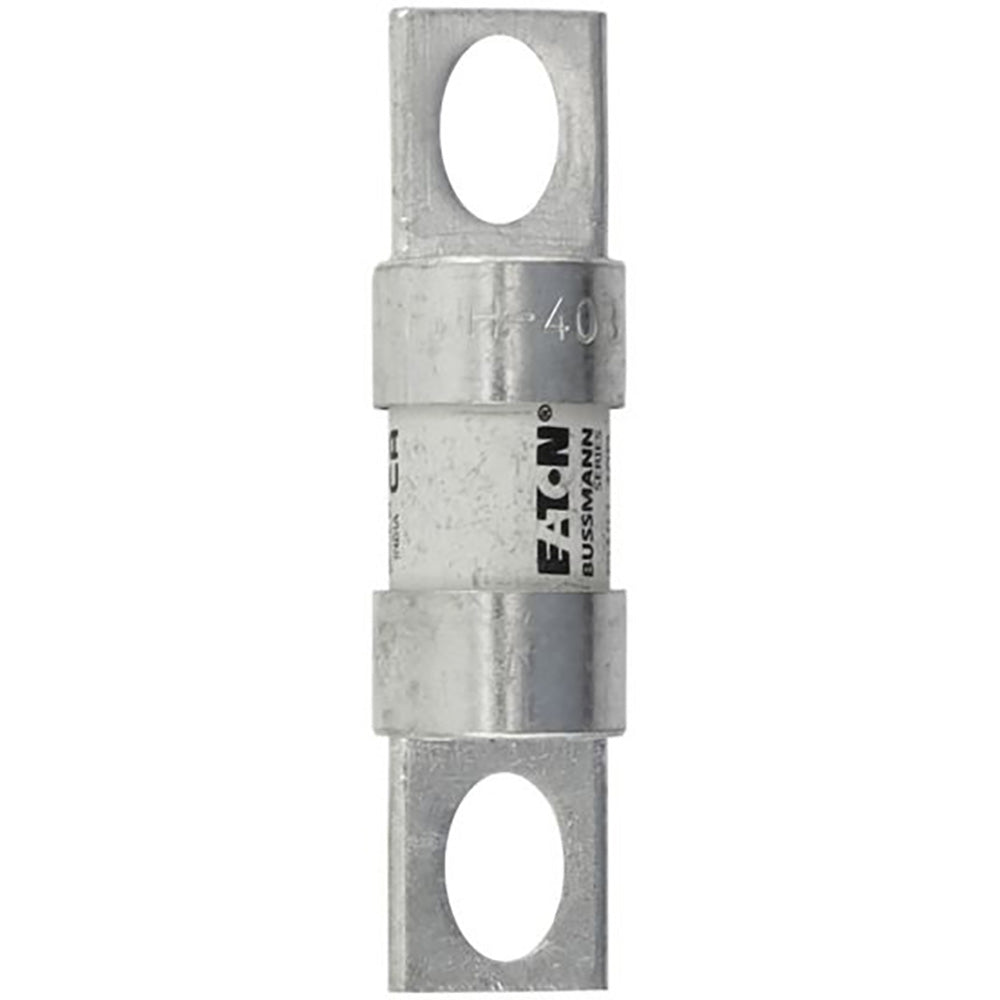

FWH-40B is a high speed semiconductor fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a 40 ampere rating with a voltage capacity of 500 VAC and 500 VDC. It is a cartridge blade style fuse with a fast-acting characteristic, suitable for semiconductor protection applications. The fuse has a high interrupt rating of 200 kA at 1000 VAC and 50 kA at 500 VDC, ensuring safe interruption of fault currents. It is constructed with blade ends and designed for stud mounting. The FWH series is recognized for its fast response and durability in protecting sensitive electronic components.
- Key Specifications
- Amperage: 40 A
- Voltage Rating: 500 VAC / 500 VDC
- Interrupt Rating: 200 kA at 1000 VAC, 50 kA at 500 VDC
- Fuse Type: High Speed Semiconductor
- Body Style: Cartridge Blade
- Mounting Type: Stud
- Blade End Configuration: Blade end x Blade end
- Series: FWH
- Fast Acting
- Certifications: Eaton Bussmann standards
- Part Number: FWH-40B
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 40
- AIC rating : 200kA@500V
- Connection : Stud
- Diameter : 0.81
- Barrels : 1
- UPC : 051712795753
- GTIN : 00051712795753
- Country of Origin : India
- Dimensions : 108 mm x 28 mm x 90 mm (Length/Depth x Height x Width)
- Weight : 0.14628
- Certification : CE, CSA Certified, UL Recognized
