FWH-35B - Eaton Bussmann 35A 500V High Speed DC Fuse, Stud Mount, 200kA Interrupt Rating

FWH-35B

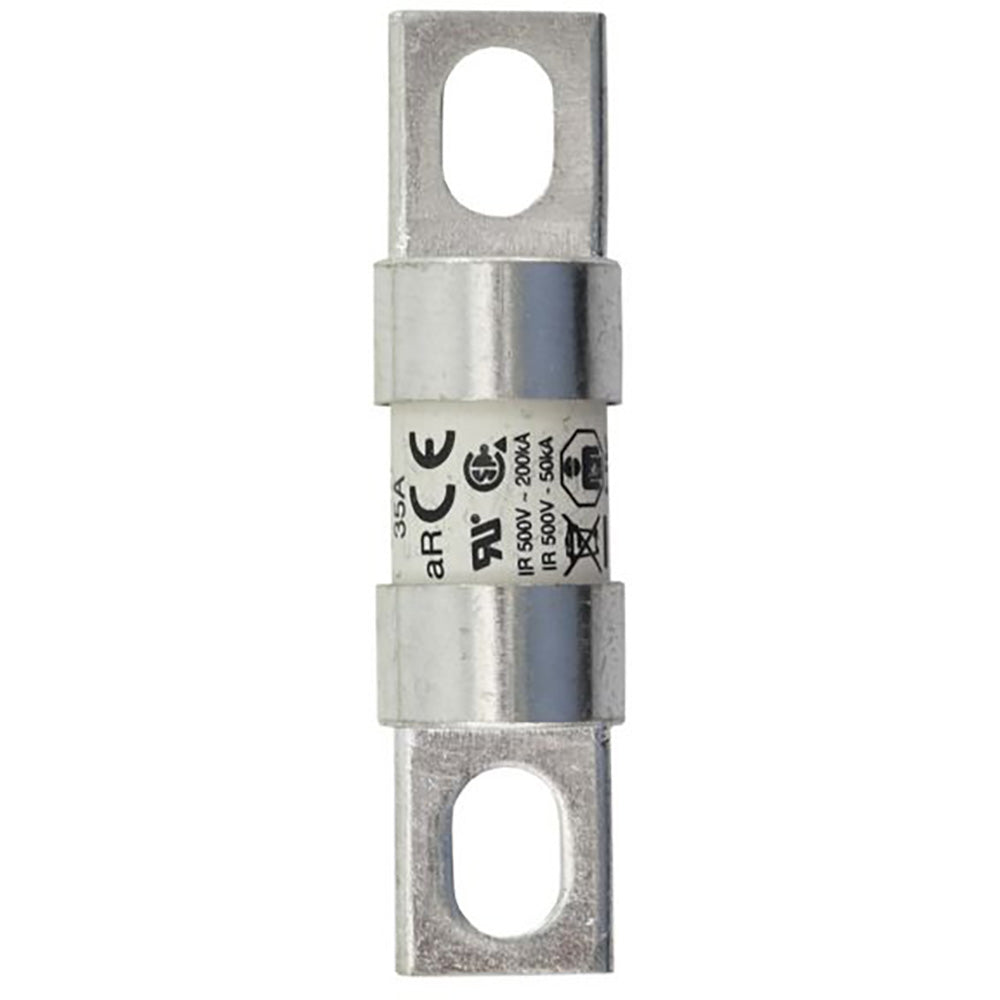

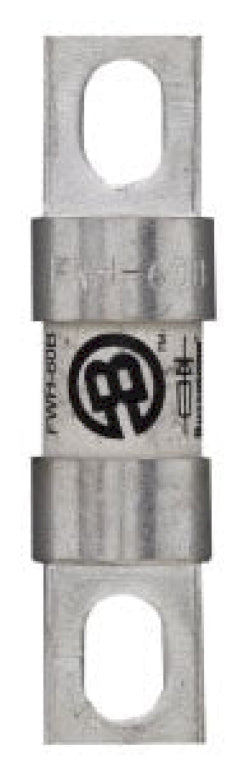

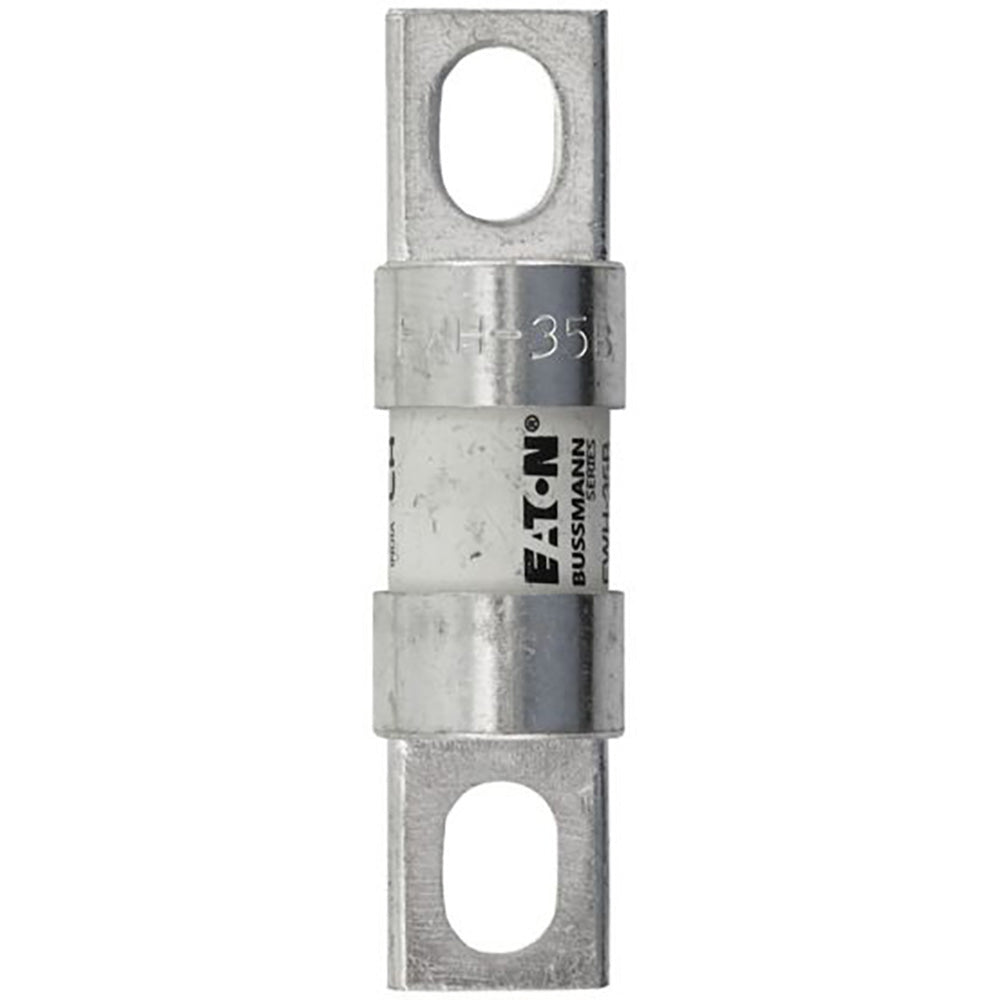

FWH-35B is a high speed DC fuse from Eaton Bussmann designed for semiconductor and DC power applications.This 35 amp, 500 volt fuse features a stud mount design and offers a high interrupt rating of 200,000 amps RMS symmetrical at 1000 VAC and 50,000 amps at 500 VDC. It measures 108mm in length, 28mm in height, and 90mm in width, weighing 63.8 grams. The fuse is UL Recognized and CSA certified, suitable for protecting battery modules, power converters, and DC drives with low arc voltage and energy let-through.

Key Specifications
• Amperage: 35A
• Voltage Rating: 500V AC/DC
• Interrupt Rating: 200kA RMS Symmetrical at 1000 VAC, 50kA at 500 VDC
• Mounting Type: Stud Mount
• Fuse Type: High Speed (Fast Acting)
• Dimensions: 108mm L x 28mm H x 90mm W
• Weight: 63.8 grams
• Certifications: UL Recognized, CSA, CE
• Application: Semiconductor protection, DC common bus, DC drives, power converters/rectifiers
• Series: Eaton Bussmann FWH

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWH-35B
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWH Series
• Type : FWH
• Voltage : 500
• Amperage : 35
• AIC rating : 200kA@500V
• Connection : Stud
• Diameter : 0.81
• Barrels : 1

Product Data

• UPC : 051712795746
• GTIN : 00051712795746
• Country of Origin : India
• Dimensions : 108 mm x 28 mm x 90 mm (Length/Depth x Height x Width)
• Weight : 0.14674
• Certification : CE, CSA Certified, UL Recognized
