Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

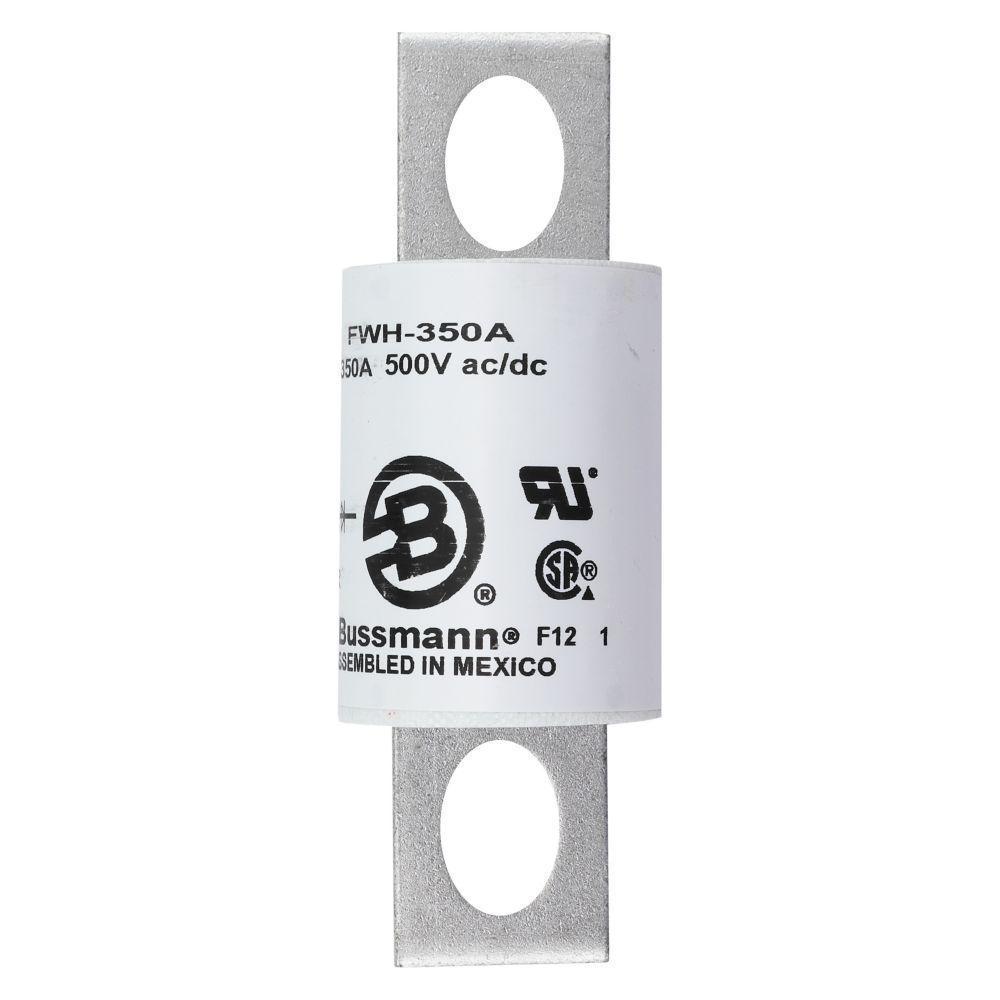

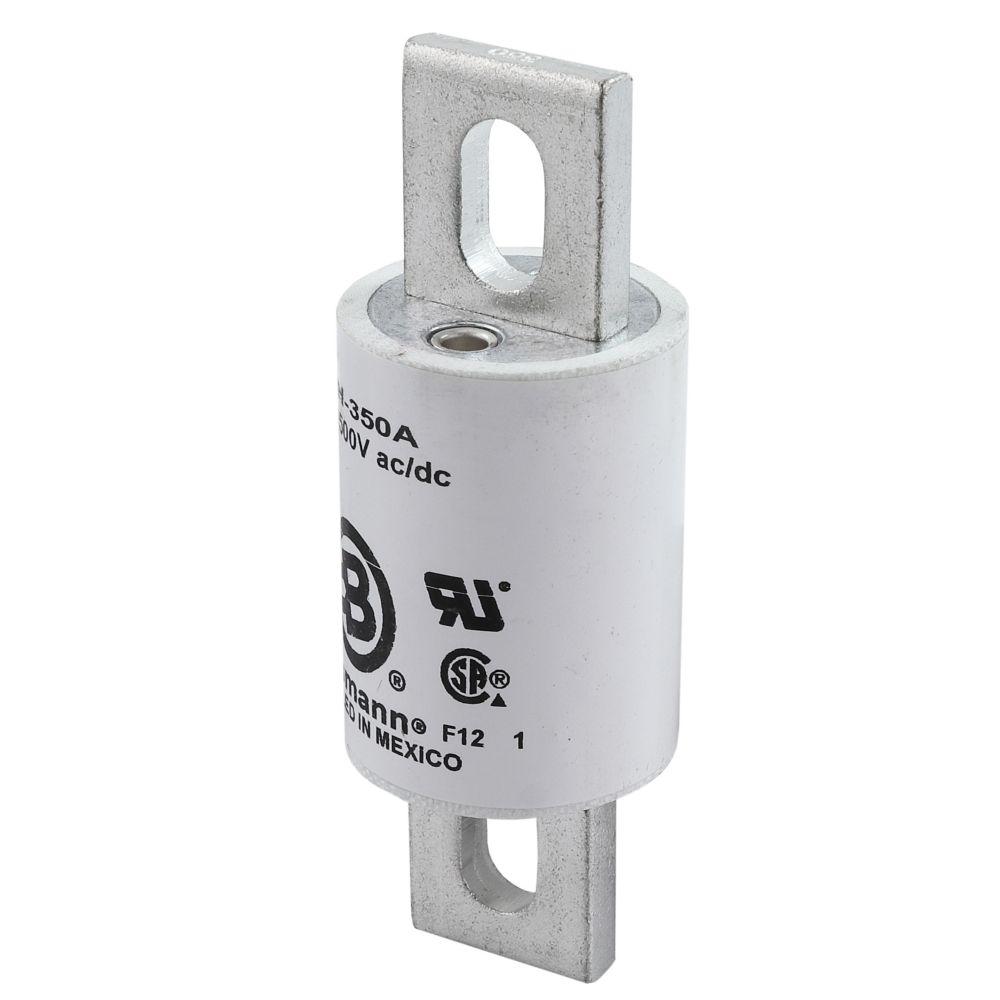

FWH-350A
FWH-350A is an Eaton Bussmann series high speed fuse designed for reliable overcurrent protection in power distribution systems.This fuse features a 350A RMS current rating, voltage ratings of 1000 Vac and 800 Vdc, and a high interrupt rating of 200 kAIC at 1000 Vac and 50 kAIC at 500 Vdc. It is a non-indicating fuse with blade end connections and a stud mounting method, suitable for demanding industrial applications. The fuse complies with CE marking, RoHS, CSA certification, and UL recognition.
- Key Specifications
- Amperage Rating: 350A RMS
- Voltage Rating: 1000 Vac, 800 Vdc
- Interrupt Rating: 200 kAIC at 1000 Vac, 50 kAIC at 500 Vdc
- Mounting Type: Stud
- Connection Type: Blade end x blade end
- Fuse Indicator: Non Indicating
- Series: Bussmann FWH
- Certifications: CSA Certified, UL Recognized, CE Marked, RoHS Compliant
- Watt Losses: 58 W
- Body Material: Fiberglass
Specifications
- Part Number: FWH-350A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 350
- AIC rating : 200kA@500V
- Connection : Stud
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 051712150170
- GTIN : 00051712150170
- Country of Origin : Mexico
- Dimensions : 1.69 in x 1.61 in x 4.52 in (Length/Depth x Height x Width)
- Weight : 0.52
- Certification : CE, CSA Certified, UL Recognized
