Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWH-30A14F

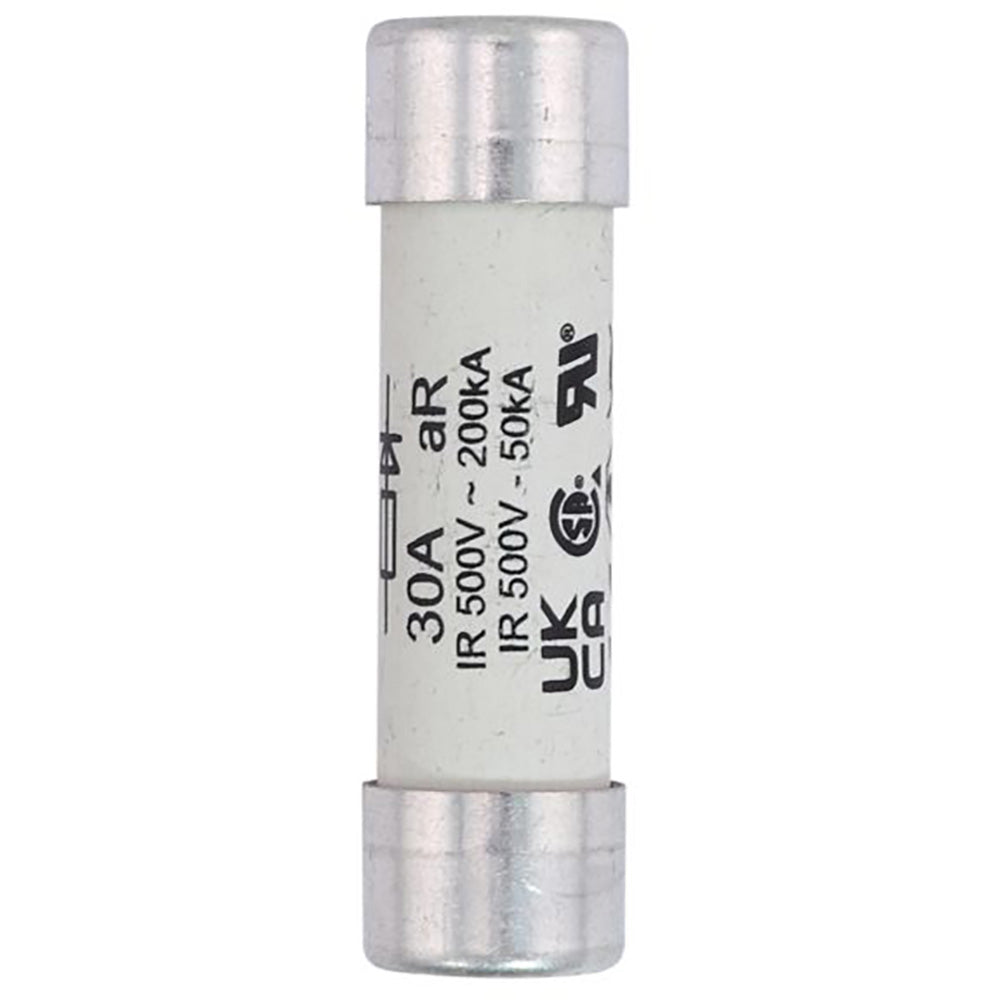

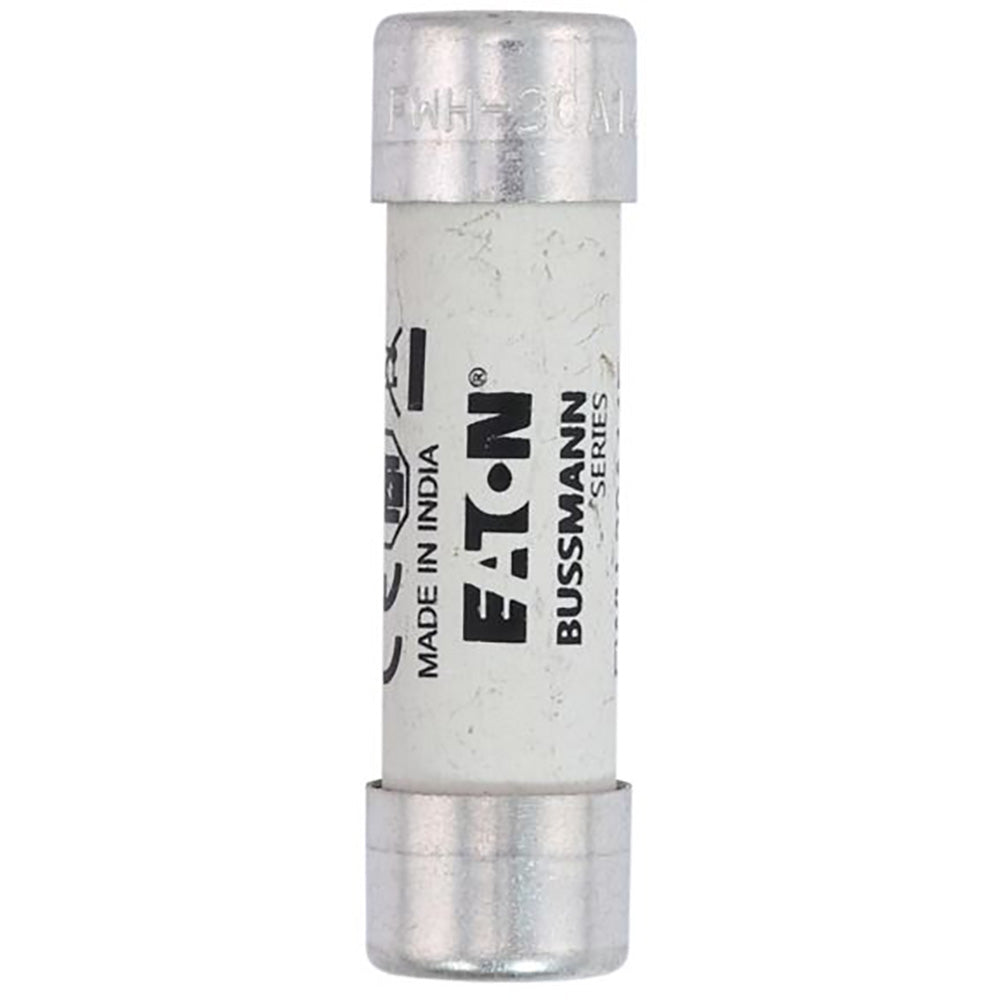

FWH-30A14F is a high speed semiconductor fuse rated for 30 amps and 500 volts AC with a 14 x 51 mm cylindrical body.This Cooper Bussmann fuse features fast-acting characteristics designed for semiconductor protection. It has an interrupting rating of 200,000 AIC RMS at AC and 50,000 AIC at 500 VDC, suitable for high fault current applications. The fuse is UL recognized for amperages 35A and above and provides reliable protection in industrial and power distribution systems.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 500V AC / 500V DC
- Fuse Type: Semiconductor, High Speed
- Physical Size: 14 mm x 51 mm
- Interrupting Rating: 200,000 AIC RMS AC
- Interrupting Rating: 50,000 AIC at 500 VDC
- Mounting Type: Cylindrical Body
- Series: FWH
- UL Recognized (35A and above)
Specifications
- Part Number: FWH-30A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 30
- AIC rating : 200kA@500V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712370844
- GTIN : 00051712370844
- Country of Origin : India
- Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
- Weight : 0.04692
- Certification : CE, CSA Certified, UL Recognized
