Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description

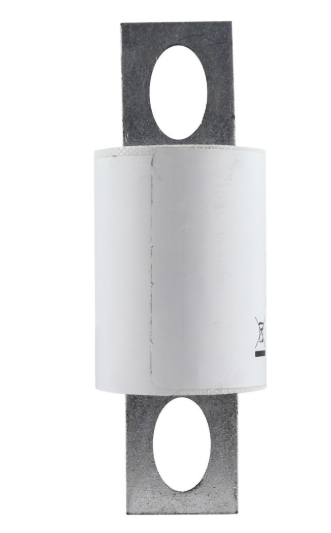

FWH-300
FWH-300 is a high speed fuse from the Eaton Bussmann FWH series, designed for demanding electrical protection applications. This fuse features a 300A RMS current rating, 1000VAC and 800VDC voltage ratings, and a robust interrupting capacity for reliable circuit protection. The non-indicating design with blade end x blade end connection and stud mounting ensures secure installation in industrial and commercial systems. Eaton Bussmann FWH fuses are recognized for their fast-acting response and high reliability in protecting sensitive equipment. The FWH-300 is engineered for high-speed protection of semiconductor devices and other critical loads. Its cylindrical body and blade end x blade end configuration provide a secure fit in compatible fuse holders. The fuse is suitable for use in AC and DC circuits, with a frequency rating from 45 to 1000 Hz. The stud mounting method allows for easy installation and removal, while the non-indicating feature means no visual indication of fuse status is provided.
- 300A RMS current rating
- 1000VAC, 800VDC voltage rating
- 200 kAIC interrupting rating at 1000VAC
- 50 kAIC interrupting rating at 500VDC
- Non-indicating design
- Blade end x blade end connection
- Stud mounting method
- Cylindrical body
- Frequency rating: 45 to 1000 Hz
- UL Recognized
- CSA Certified
- CE Marked
- RoHS Compliant
Specifications
- Part Number: FWH-300
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage
- Type : FWH
- Voltage : 500
- Amperage : 300
Product Data
- Weight : 5.19
