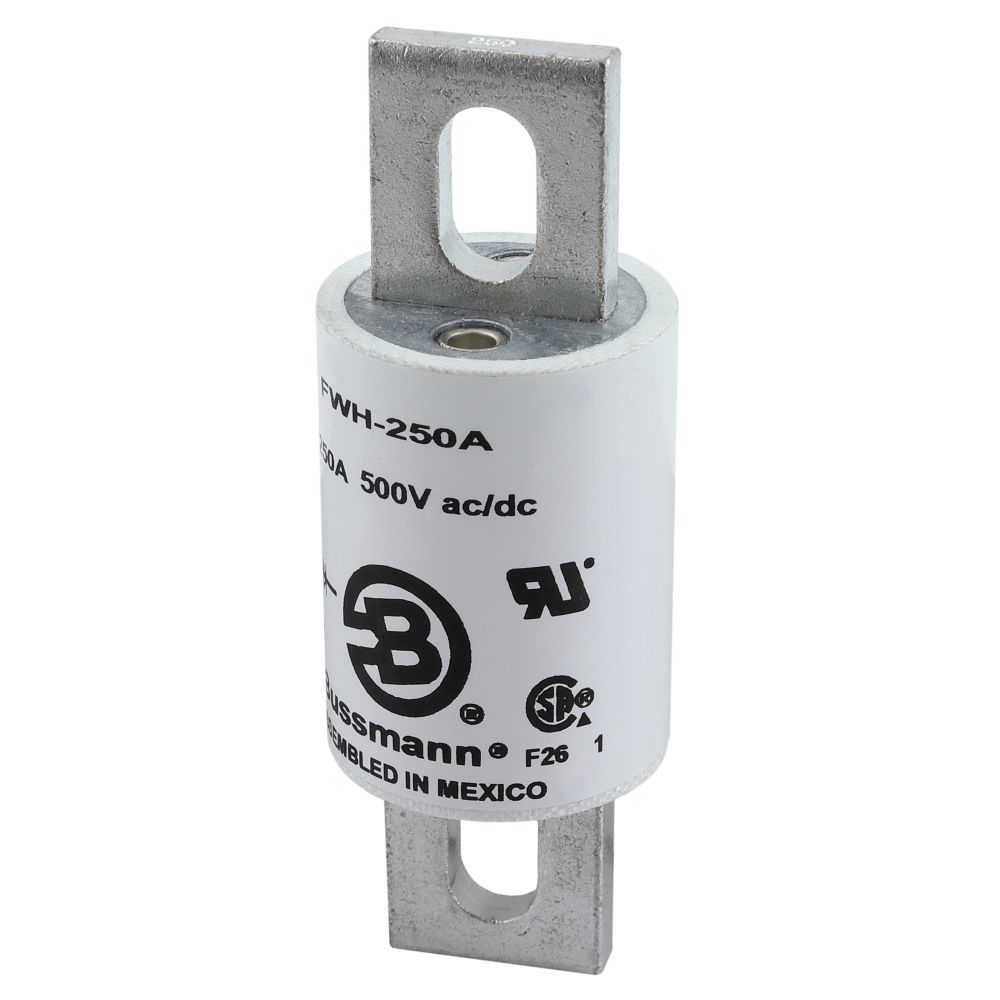

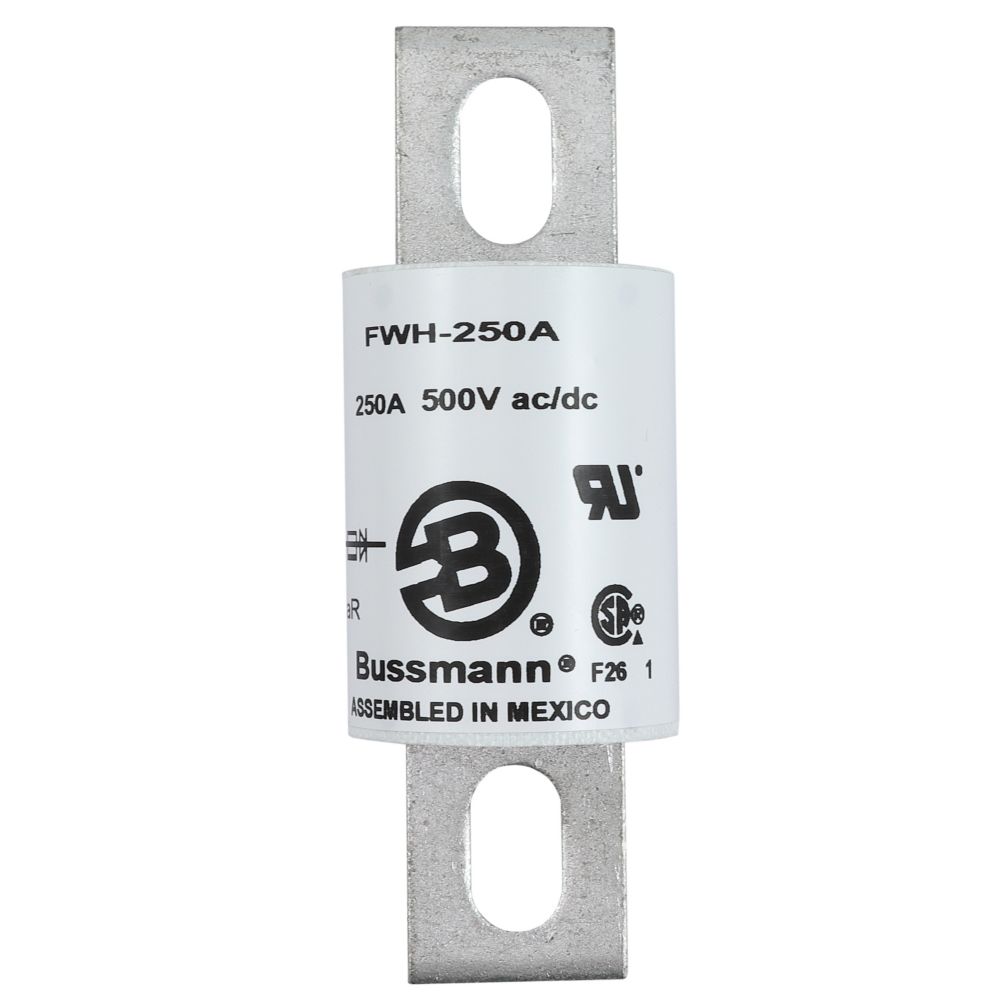

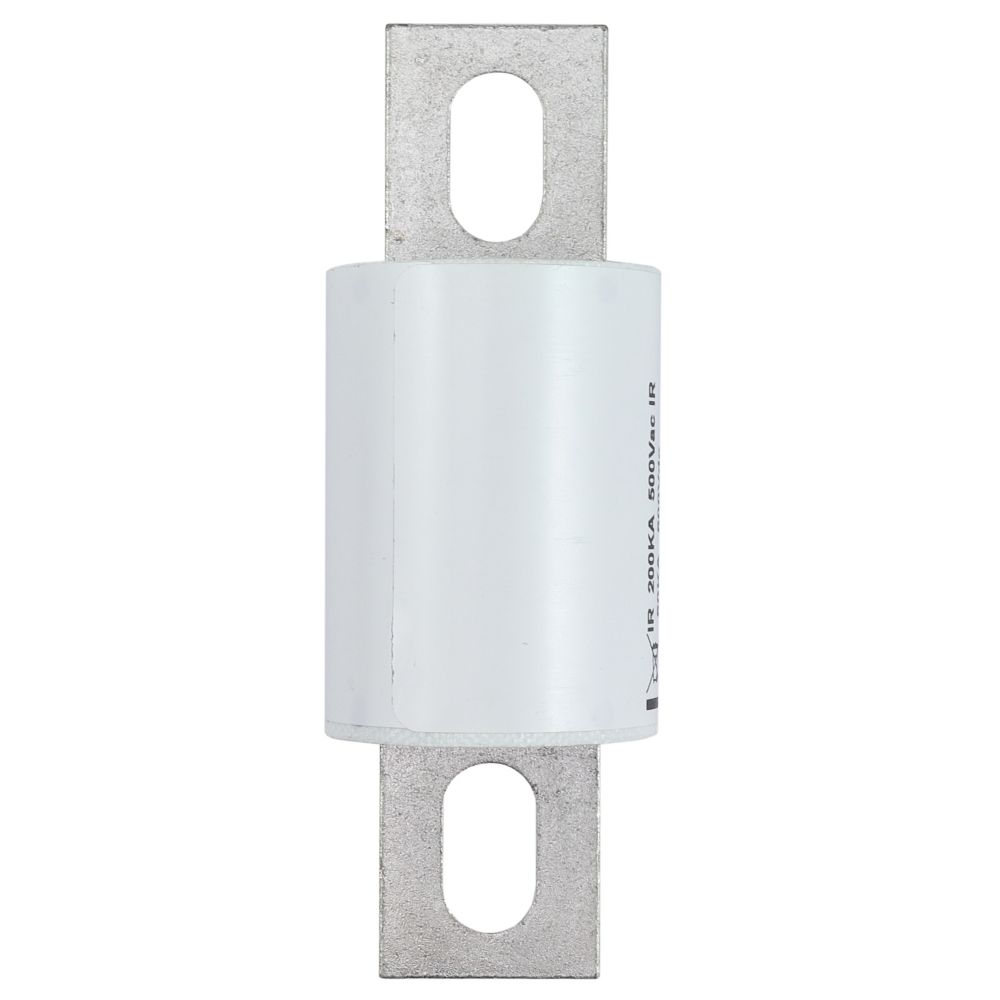

FWH-250A - Eaton Bussmann FWH 250A 1000VAC 800VDC High Speed Semiconductor Fuse Non-Indicating Blade End Stud Mount

FWH-250A

FWH-250A is a high speed semiconductor fuse from Eaton Bussmann series, designed for fast-acting protection in demanding electrical applications. This fuse features a 250A RMS current rating, 1000VAC and 800VDC voltage ratings, and a robust interrupting capacity of 200 kAIC at 1000VAC and 50 kAIC at 500VDC. The blade end x blade end connection and stud mounting method ensure secure installation in industrial and commercial power systems. Non-indicating design provides reliable operation without visual fault indication. Eaton Bussmann FWH series fuses are engineered for high-speed protection of sensitive semiconductor equipment, offering fast response to overcurrent events and minimizing equipment downtime. The cylindrical body construction and RoHS compliance make this fuse suitable for a wide range of applications requiring high reliability and safety.

• Part Number: FWH-250A
• Manufacturer: Eaton Bussmann
• Series: FWH
• Amperage Rating: 250A RMS
• Voltage Rating: 1000VAC, 800VDC
• Interrupt Rating: 200 kAIC at 1000VAC, 50 kAIC at 500VDC
• Mounting Type: Stud
• Connection: Blade end x blade end
• Fuse Indicator: Non Indicating
• Watt Losses: 41 W
• Compliance: CE Marked, RoHS Compliant
• Certifications: CSA Certified, UL Recognized

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWH-250A
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWH Series
• Type : FWH
• Voltage : 500
• Amperage : 250
• AIC rating : 200kA@500V
• Connection : Stud
• Diameter : 1.5
• Barrels : 1

Product Data

• UPC : 051712150149
• GTIN : 00051712150149
• Country of Origin : Mexico
• Dimensions : 1.69 in x 1.61 in x 4.52 in (Length/Depth x Height x Width)
• Weight : 0.52
• Certification : CE, CSA Certified, UL Recognized
