Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWH-200B

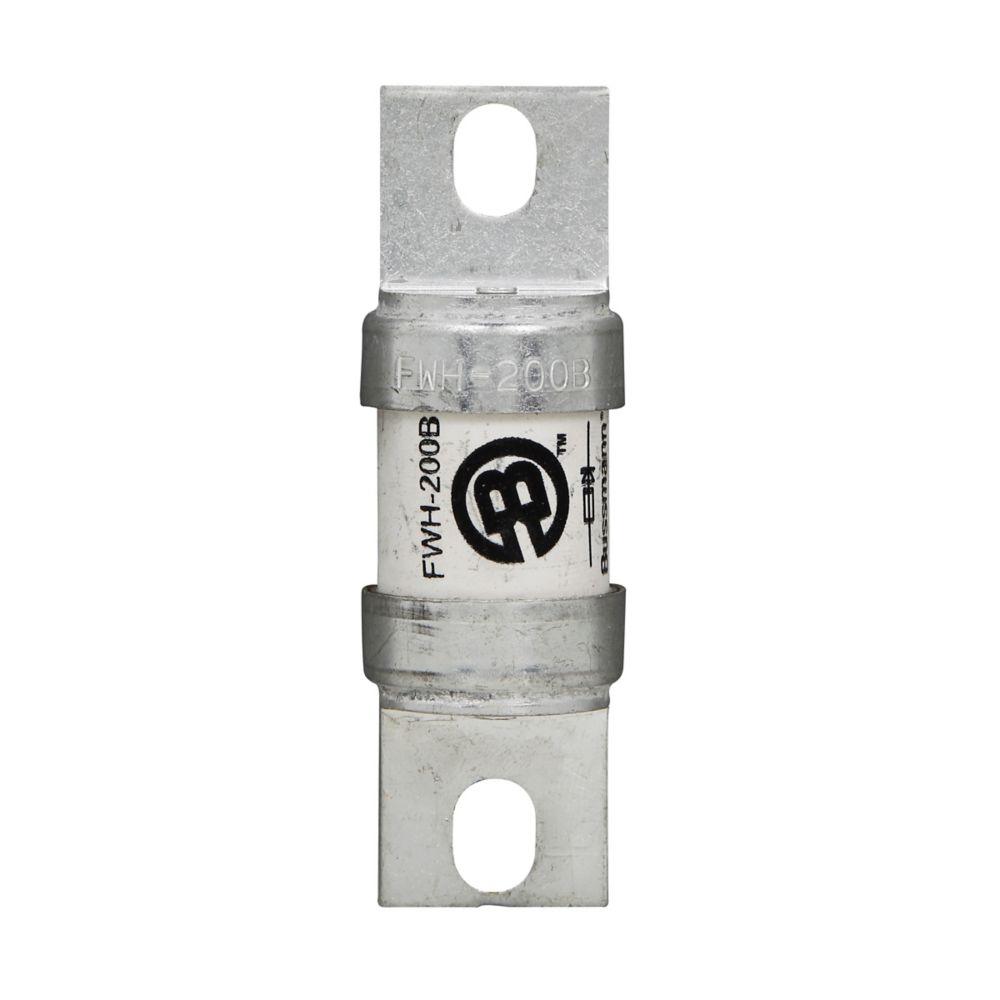

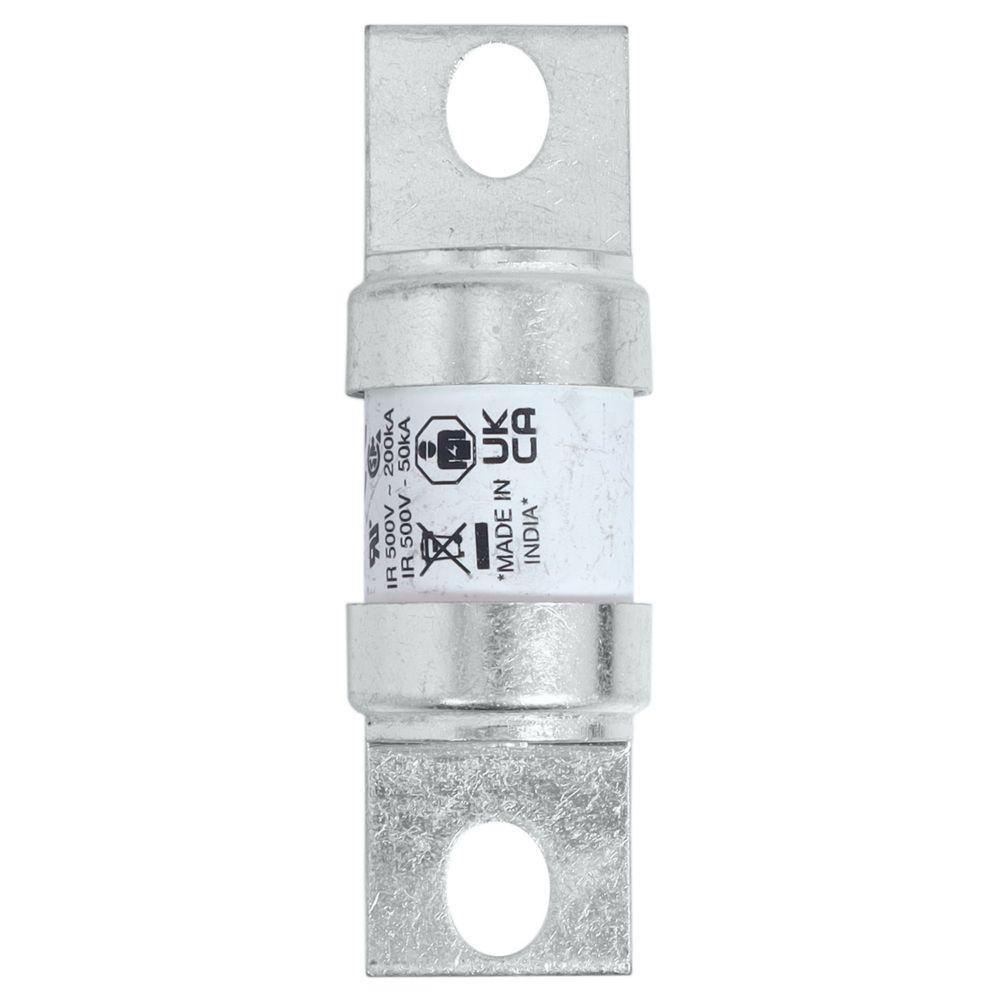

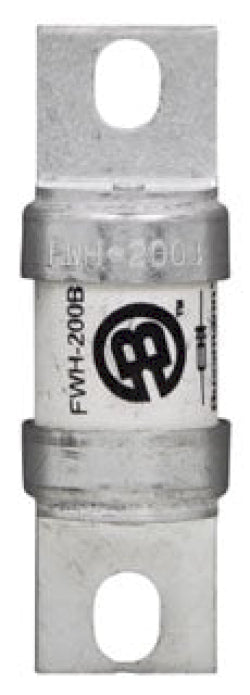

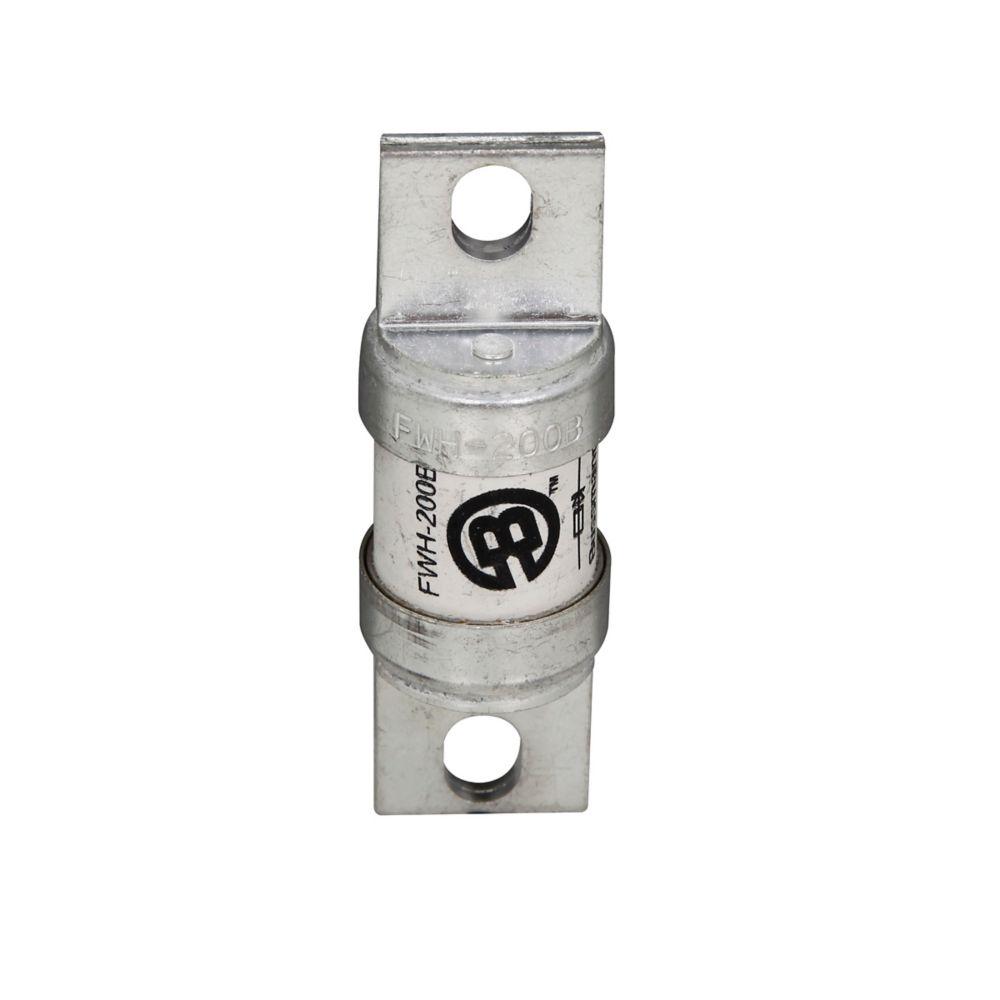

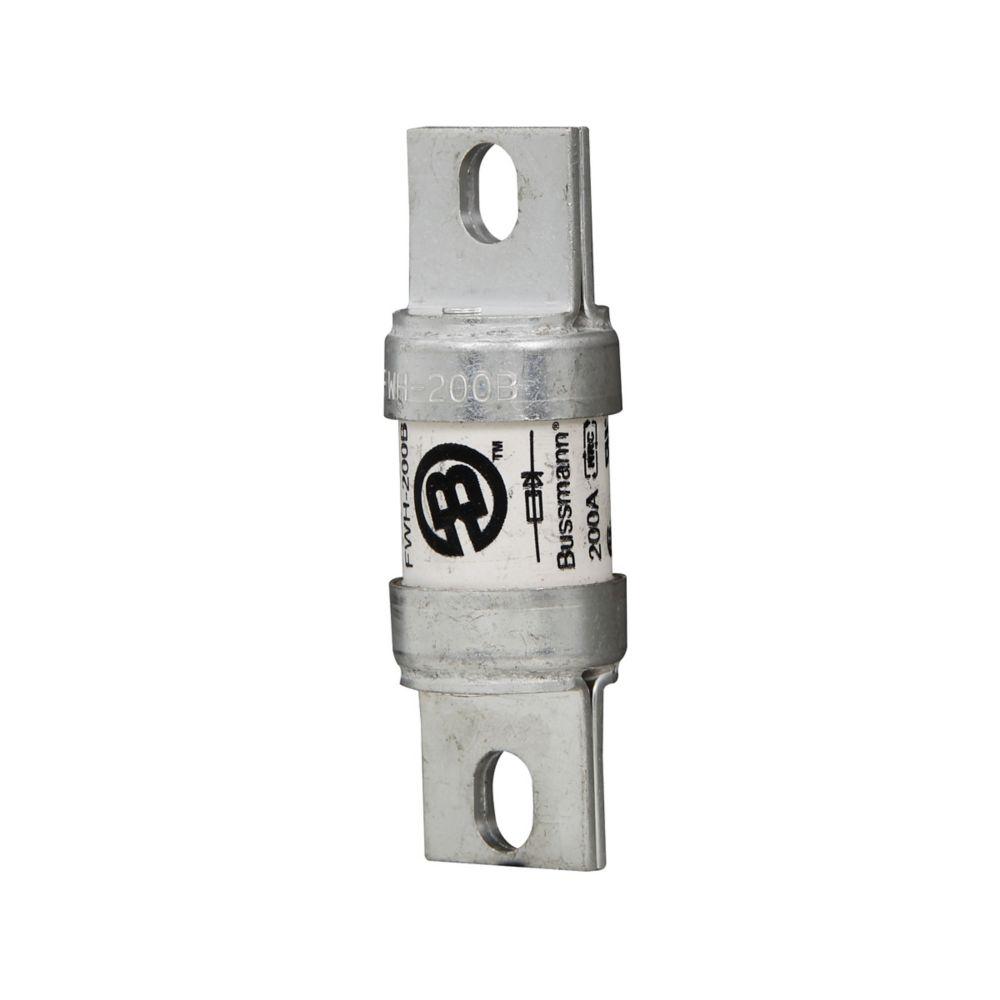

FWH-200B is a high speed semiconductor fuse from Bussmann Eaton designed for 200 amps and 500 volts AC/DC applications.This fuse features a cartridge blade body style with a stud mounting type, providing reliable semiconductor protection with a high interrupt rating of 200,000 AIC at 300 VDC and 50,000 AIC at 500 VDC. It is UL and CSA certified and belongs to the FWH series known for fast acting characteristics.
- Key Specifications
- Amperage: 200 A
- Voltage Rating: 500 VAC / 500 VDC
- Fuse Type: High Speed Semiconductor
- Mounting Type: Stud Mount
- Interrupt Rating: 200 kAIC at 300 VDC, 50 kAIC at 500 VDC
- Body Style: Cartridge Blade
- Series: FWH
- Certifications: UL, CSA
- Trip Unit: None
- Poles: Single Pole
- Physical Size: Approx. 1" x 3.625"
Specifications
- Part Number: FWH-200B
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 200
- AIC rating : 200kA@500V
- Connection : Stud
- Diameter : 1.16
- Barrels : 1
Product Data
- UPC : 051712795869
- GTIN : 00051712795869
- Country of Origin : India
- Dimensions : 91 mm x 30 mm x 30 mm (Length/Depth x Height x Width)
- Weight : 0.3496
- Certification : CE, CSA Certified, UL Recognized
