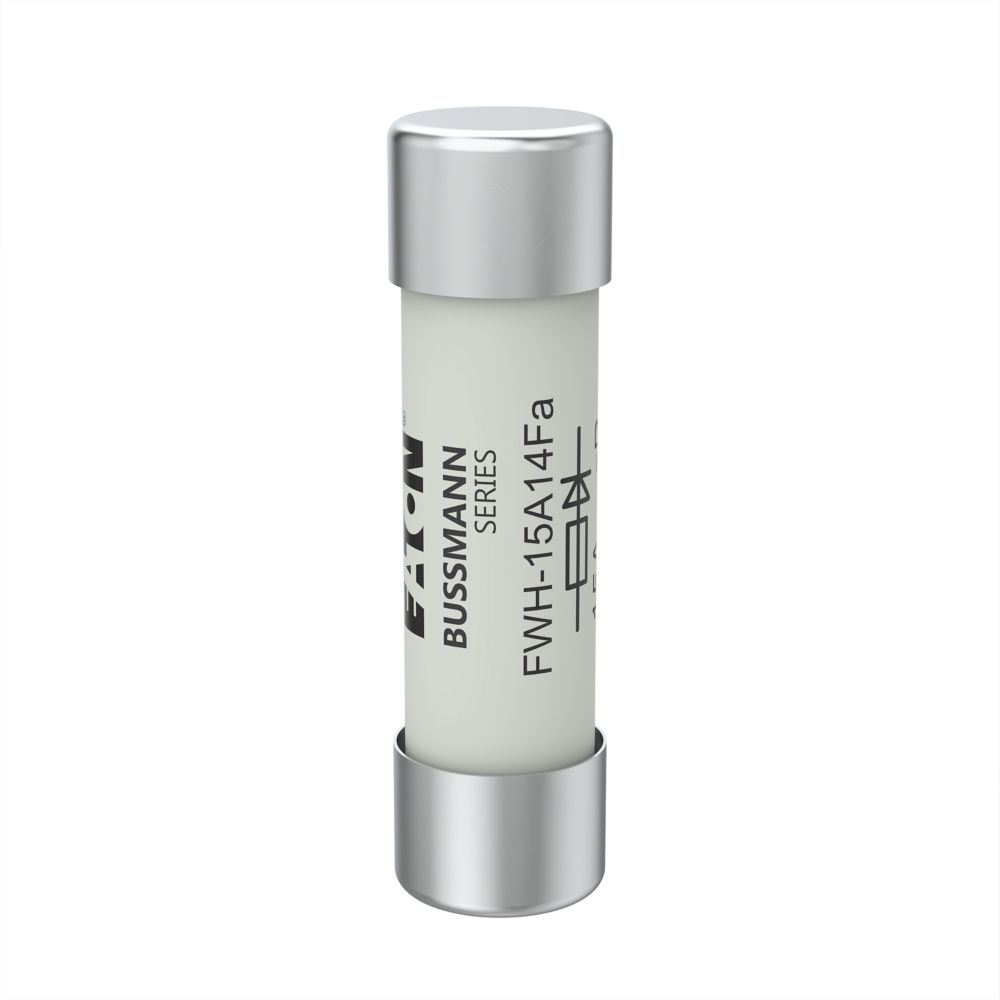

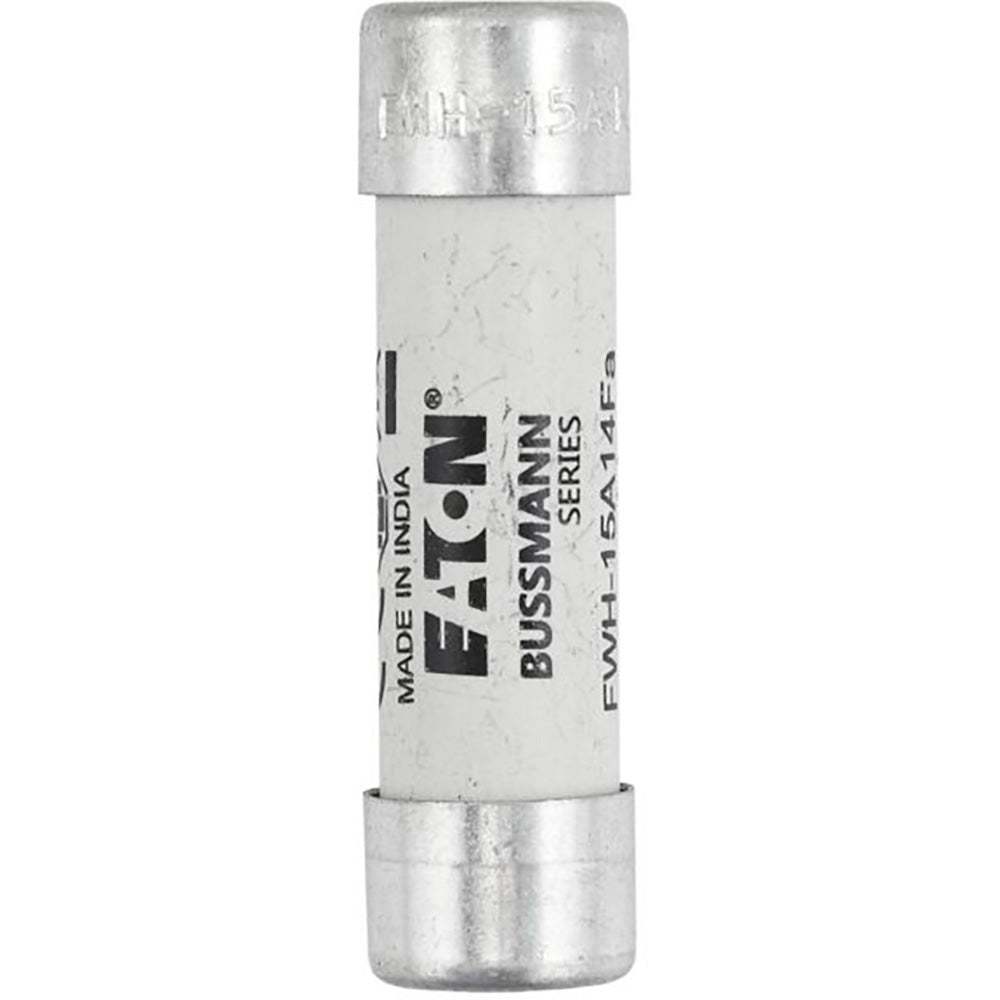

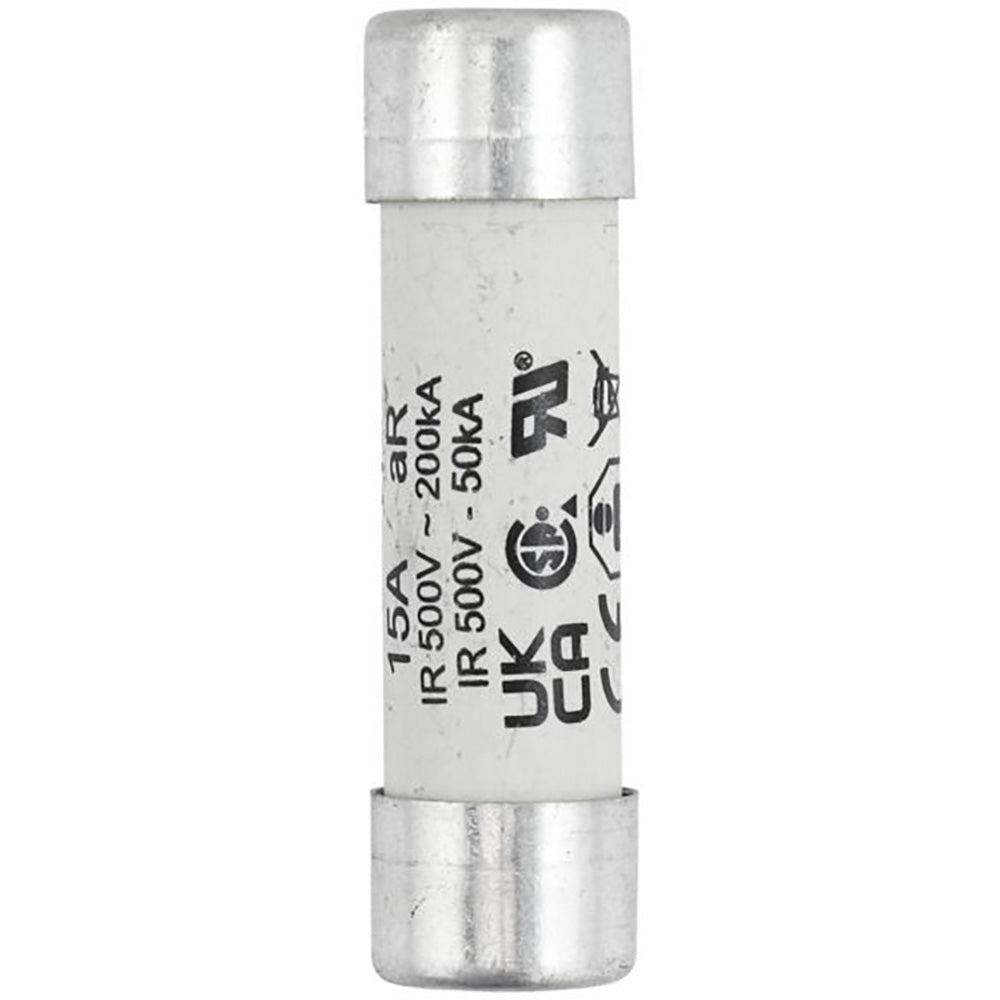

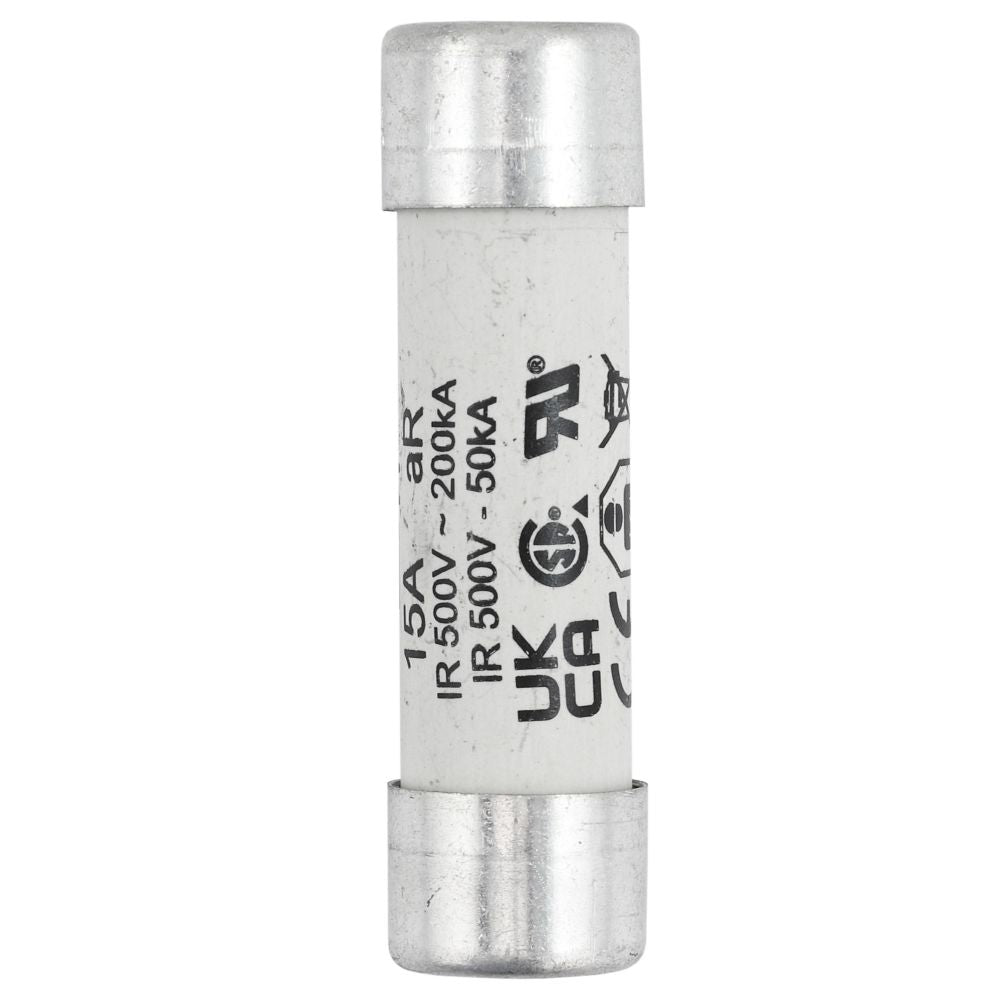

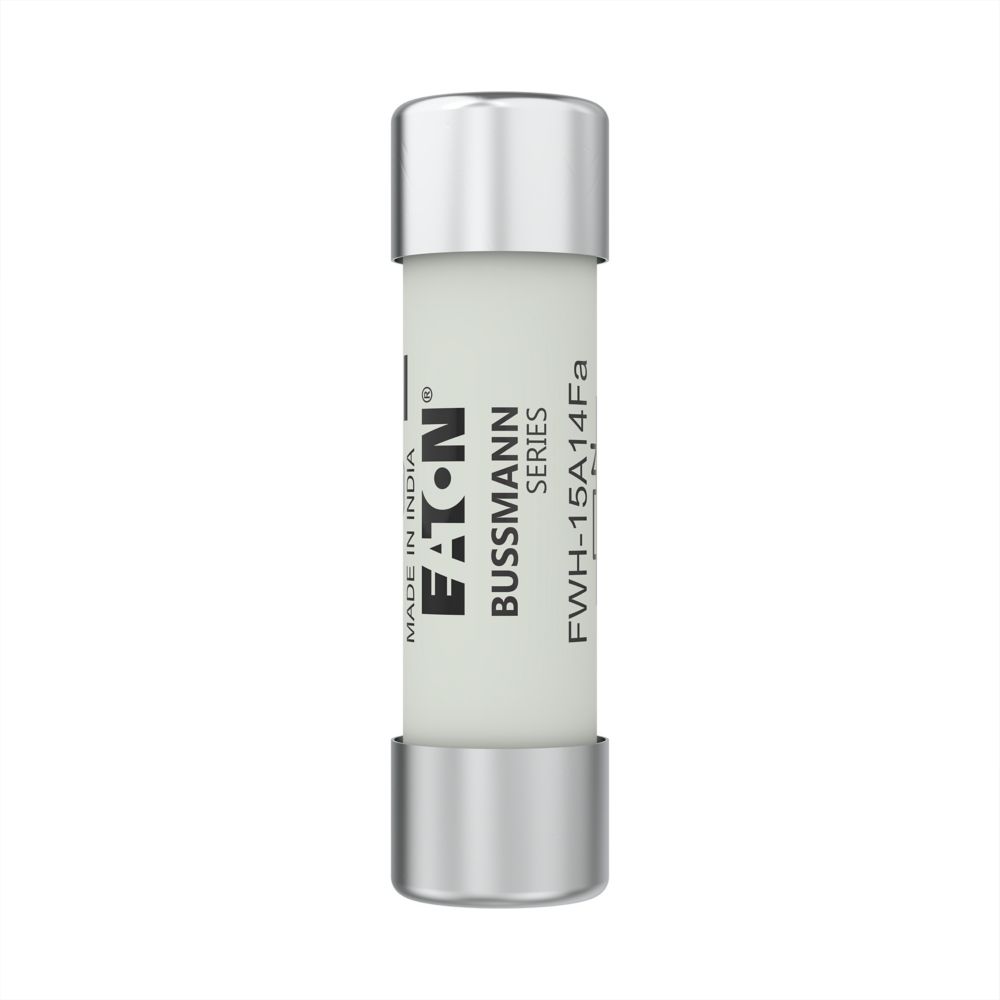

FWH-15A14F - Eaton Bussmann 15A 500V AC/DC High Speed Semiconductor Fuse 14x51mm Ferrule End

FWH-15A14F

FWH-15A14F is a high speed semiconductor fuse from Eaton Bussmann series designed for AC/DC applications up to 500 volts.This 15 amp fuse features a cylindrical 14 x 51 mm ceramic body with ferrule end connections. It offers a high interrupt rating of 200 kA at AC and 50 kA at 500 VDC, suitable for semiconductor protection and power converter circuits. The fuse is UL recognized, CSA certified, and CE marked, ensuring compliance with industry standards.

• Amperage Rating: 15 A
• Voltage Rating: 500 V AC / 800 V DC
• Fuse Size: 14 x 51 mm
• Interrupt Rating: 200 kA AC, 50 kA DC
• Fuse Type: High Speed Semiconductor
• Connection Type: Ferrule end x ferrule end
• Class: aR (semiconductor protection)
• Material: Ceramic body
• Certifications: UL Recognized, CSA Certified, CE Marked
• Watt Loss: 5.5 W
• Frequency Rating: 45-62 Hz
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWH-15A14F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : FWH Series
• Type : FWH
• Voltage : 500
• Amperage : 15
• AIC rating : 200kA@500V
• Connection : Ferrule
• Diameter : 0.56
• Barrels : 1

Product Data

• UPC : 051712370813
• GTIN : 00051712370813
• Country of Origin : United Kingdom
• Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
• Weight : 0.04669
• Certification : CE, CSA Certified, UL Recognized
