Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWH-125B

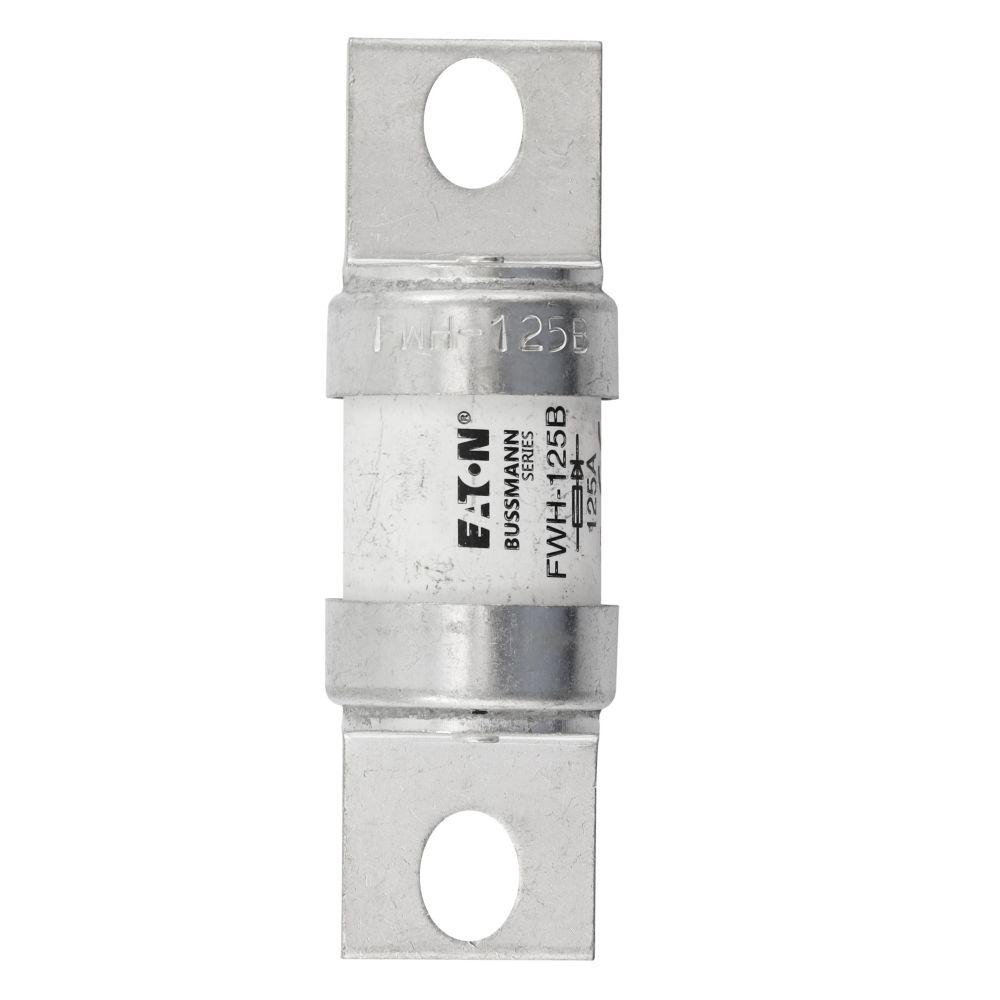

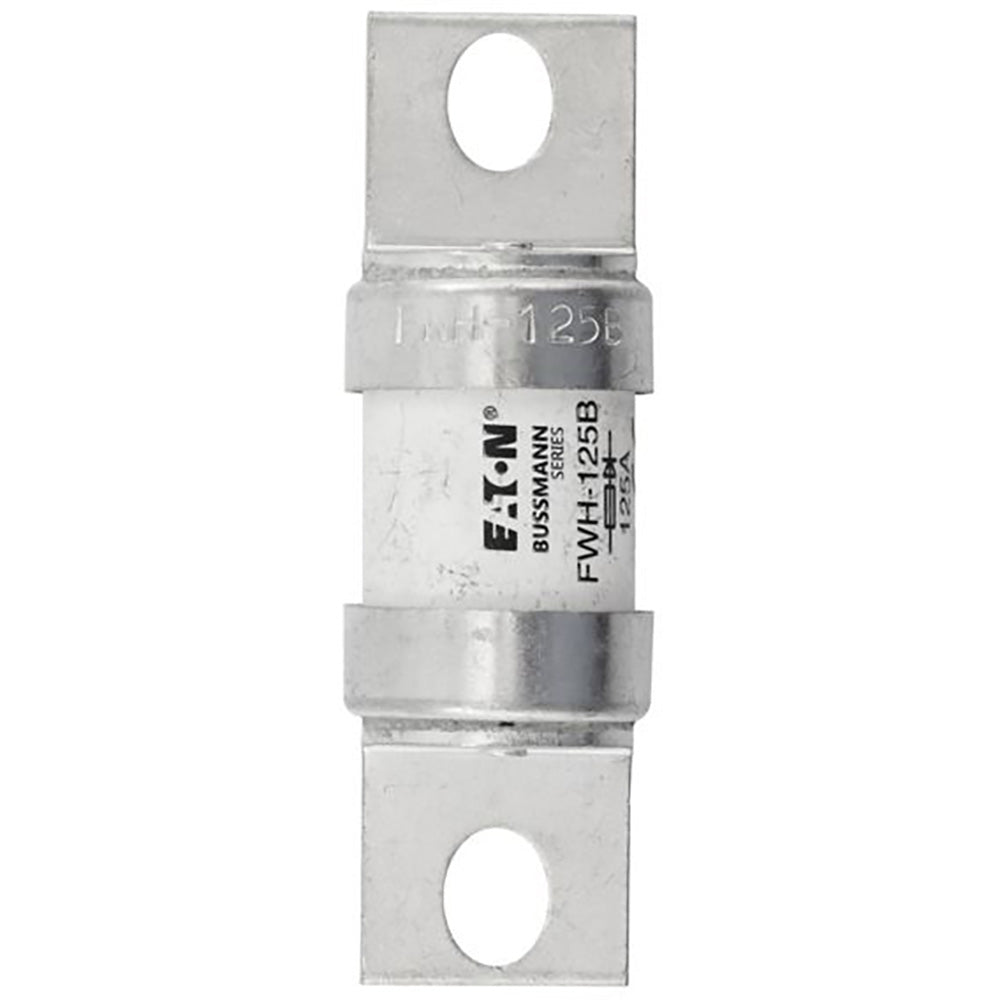

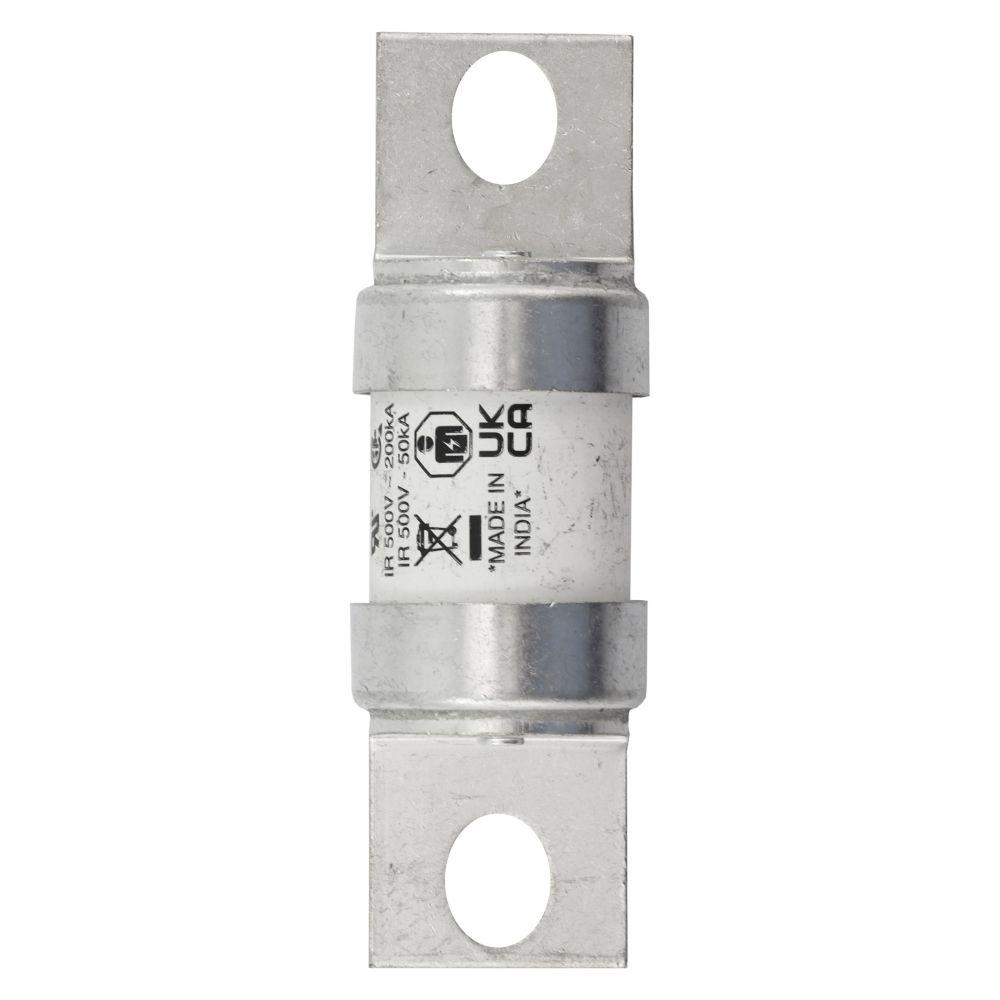

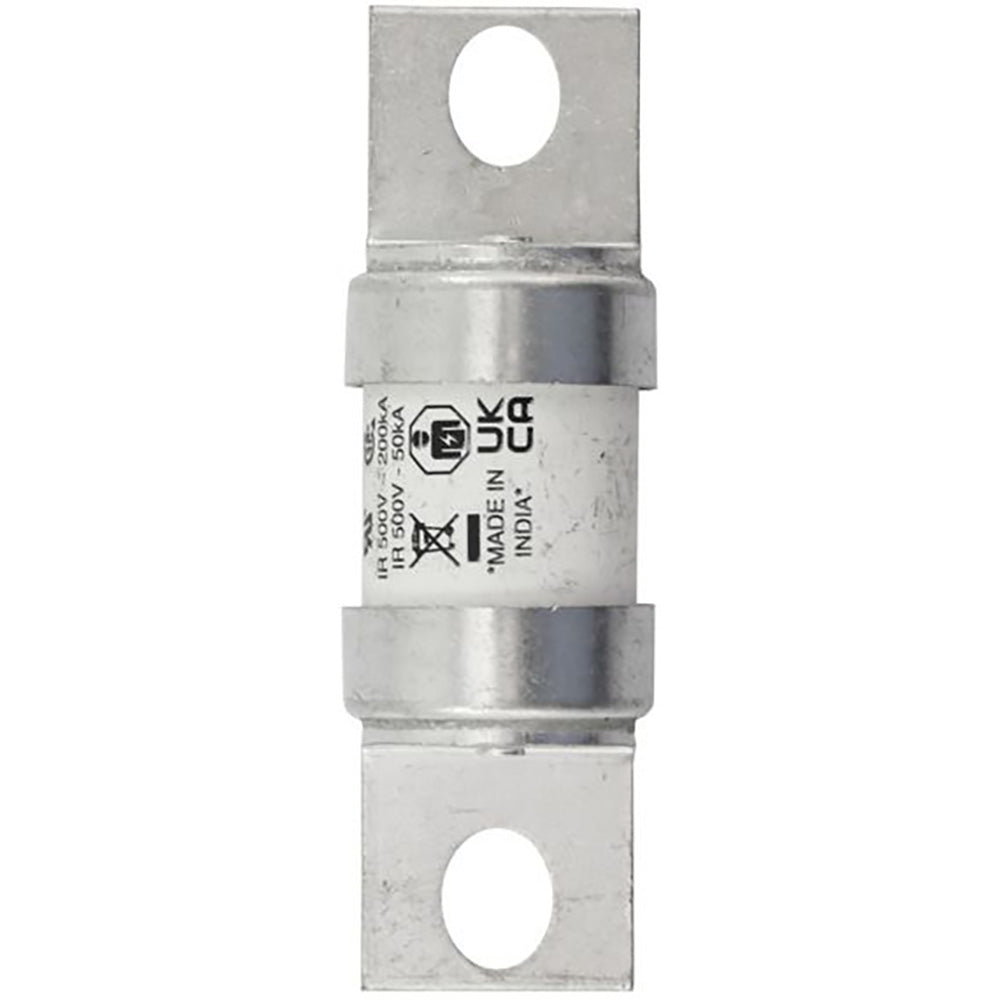

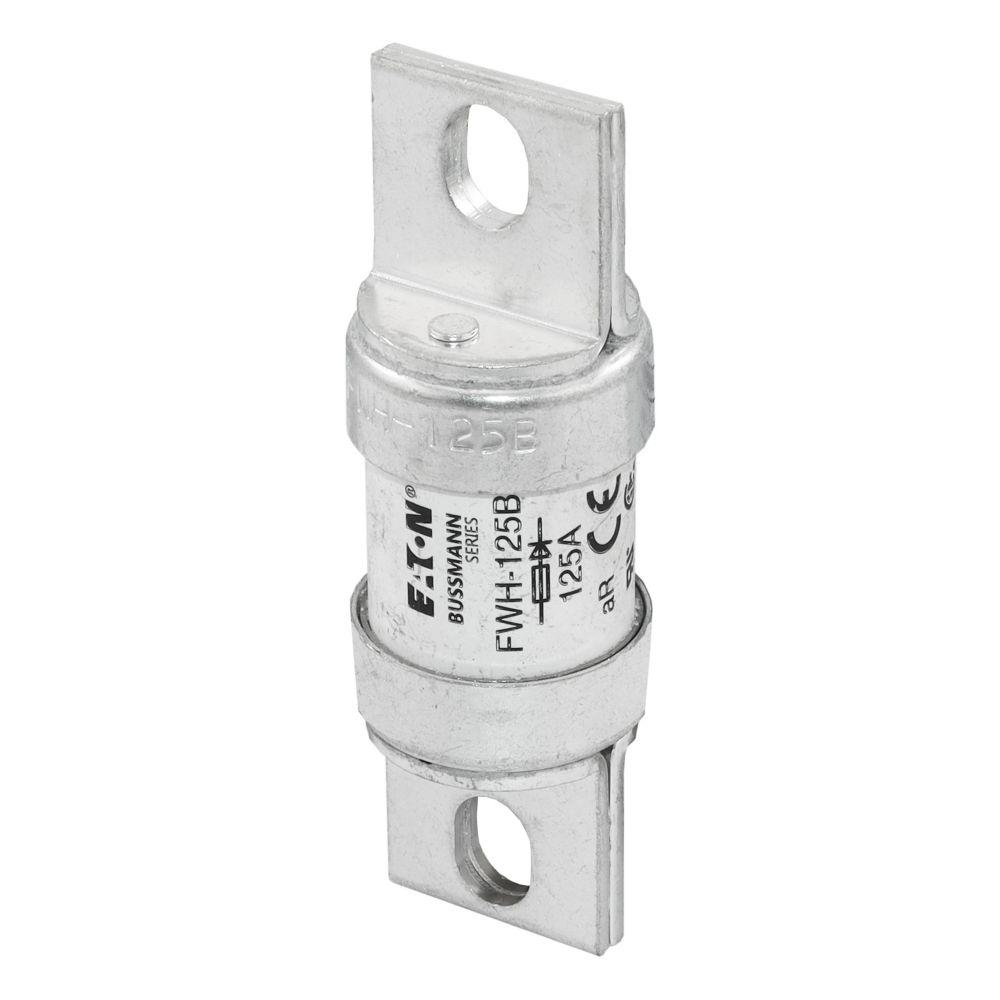

FWH-125B is a Bussmann high speed semiconductor fuse rated for 125 amperes and 500 volts AC/DC with stud mount design.
This fast-acting fuse from the Eaton Bussmann FWH series features a cylindrical ceramic body with blade end terminals, designed for semiconductor protection in industrial and power applications. It supports a 50 kA interrupt rating at 500 VDC and 200 kA at 500 VAC, ensuring reliable circuit protection. The fuse is non-indicating and non-rejection type, UL and CSA certified, suitable for use in DC drives, power converters, rectifiers, and reduced voltage starters.
- Key Specifications
- Amperage: 125 A
- Voltage Rating: 500 VAC / 500 VDC
- Interrupt Rating: 50 kA at 500 VDC, 200 kA at 500 VAC
- Fuse Type: Semiconductor High Speed
- Mounting Type: Stud Mount
- Body Type: Cylindrical Ceramic
- Terminals: Blade End
- Series: FWH
- Approvals: UL, CSA
- Non-Indicating, Non-Rejection
- Dimensions: Approx. 1.15 in Dia x 3.63 in Length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWH-125B
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 125
- AIC rating : 200kA@500V
- Connection : Stud
- Diameter : 1.16
- Barrels : 1
Product Data
- UPC : 051712795838
- GTIN : 00051712795838
- Country of Origin : India
- Dimensions : 91 mm x 30 mm x 30 mm (Length/Depth x Height x Width)
- Weight : 0.3496
- Certification : CE, CSA Certified, UL Recognized
