Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

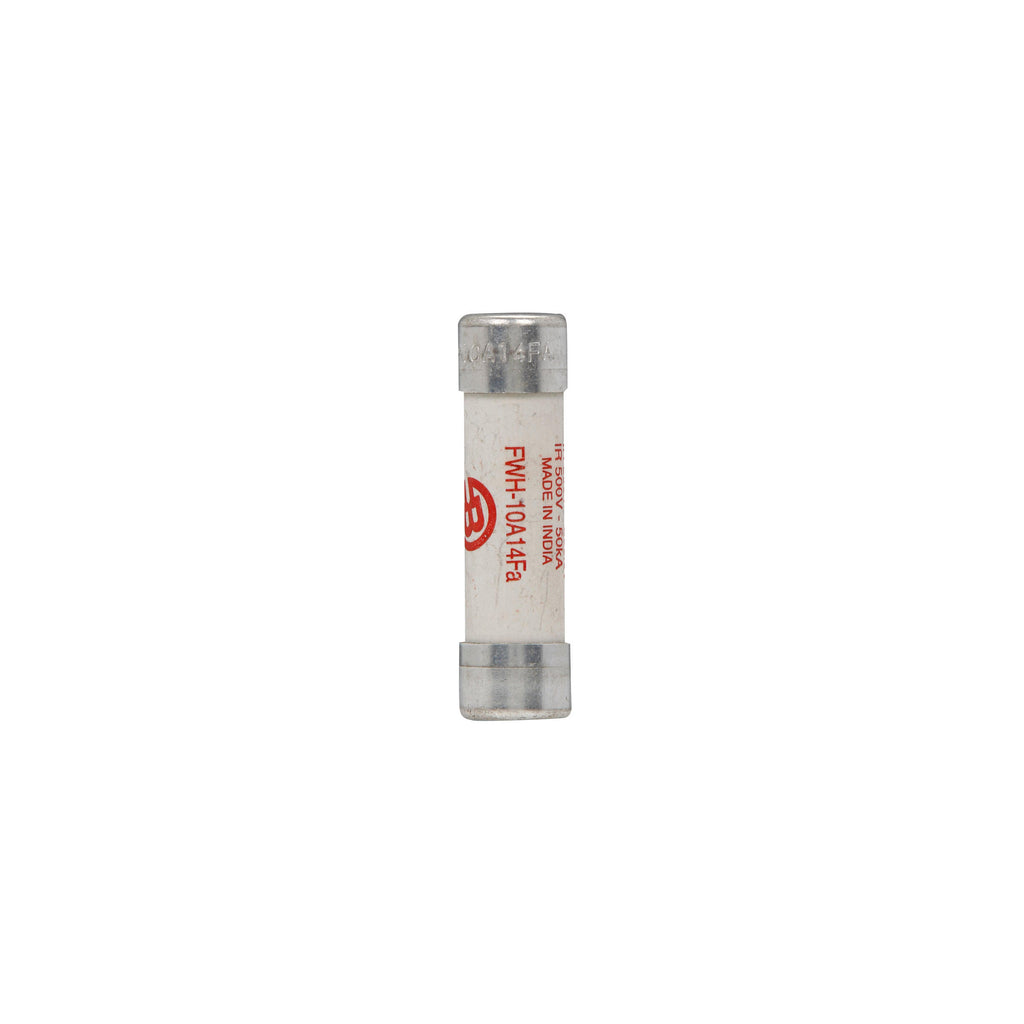

FWH-10A14F
FWH-10A14F is a high speed semiconductor fuse from Eaton Bussmann designed for fast and reliable circuit protection.This 10 amp, 500 volt AC fuse features a ferrule style cylindrical design measuring 14 x 51 mm. It offers a high interrupt rating of 200,000 AIC at AC and 50,000 AIC at DC, suitable for semiconductor protection applications. The fuse is classified as Class aR with a clearing I2T of 13 at 500 V and watt losses of 4 W. It provides excellent cycling capability and DC performance.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 500 V AC
- Fuse Size: 14 x 51 mm
- Interrupt Rating: 200,000 AIC AC, 50,000 AIC DC
- Fuse Type: High Speed Semiconductor
- Style: Ferrule End
- Class: aR
- Clearing (I2T): 13 at 500 V
- Watt Losses: 4 W
- Mounting Type: Ferrule Style
- Manufacturer: Eaton Bussmann
Specifications
- Part Number: FWH-10A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWH Series
- Type : FWH
- Voltage : 500
- Amperage : 10
- AIC rating : 200kA@500V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 051712370806
- GTIN : 00051712370806
- Country of Origin : United Kingdom
- Dimensions : 55 mm x 32 mm x 73 mm (Length/Depth x Height x Width)
- Weight : 0.04692
- Certification : CE, CSA Certified, UL Recognized
