Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

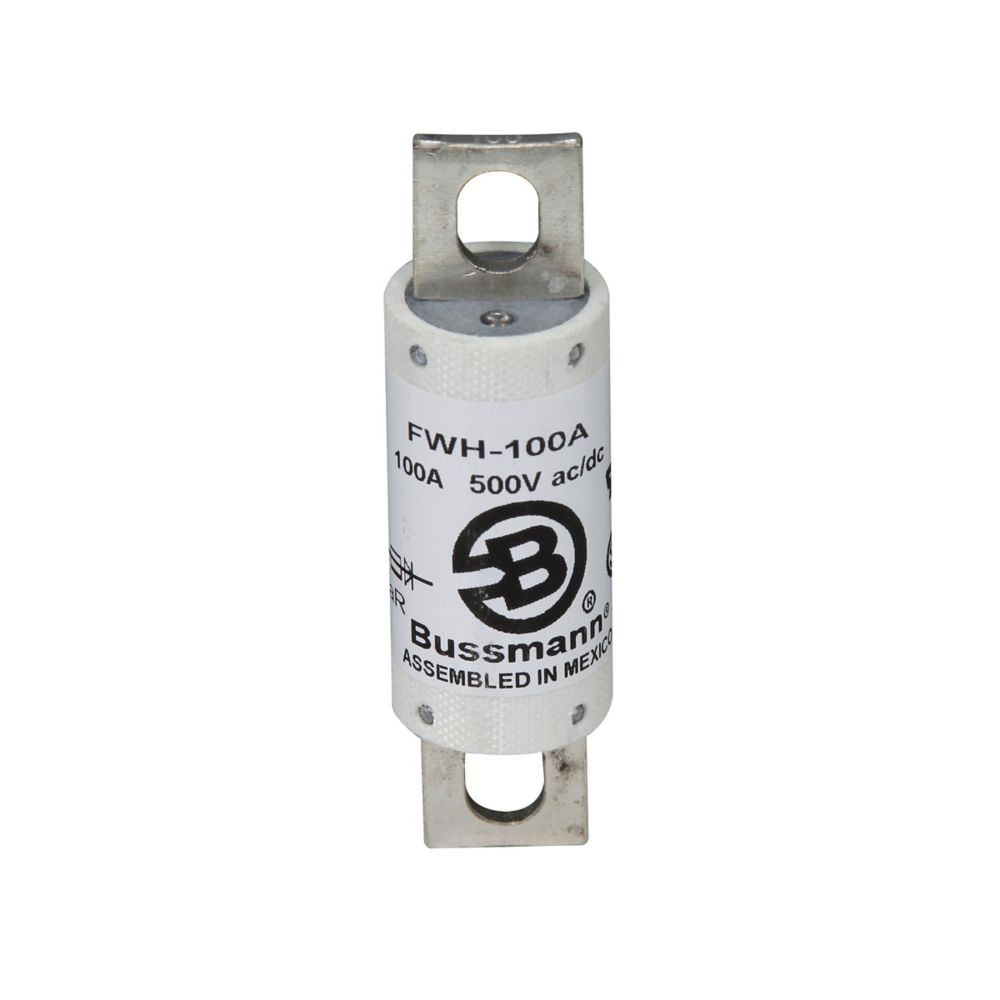

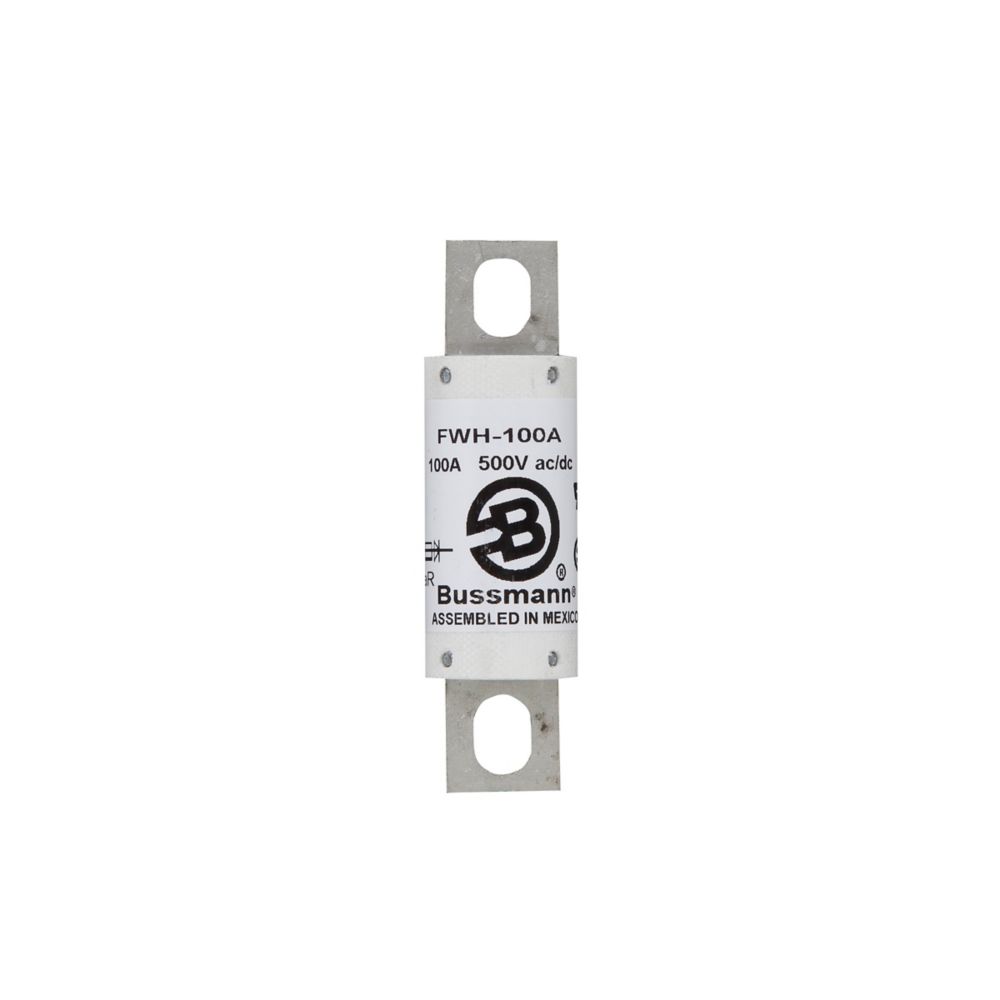

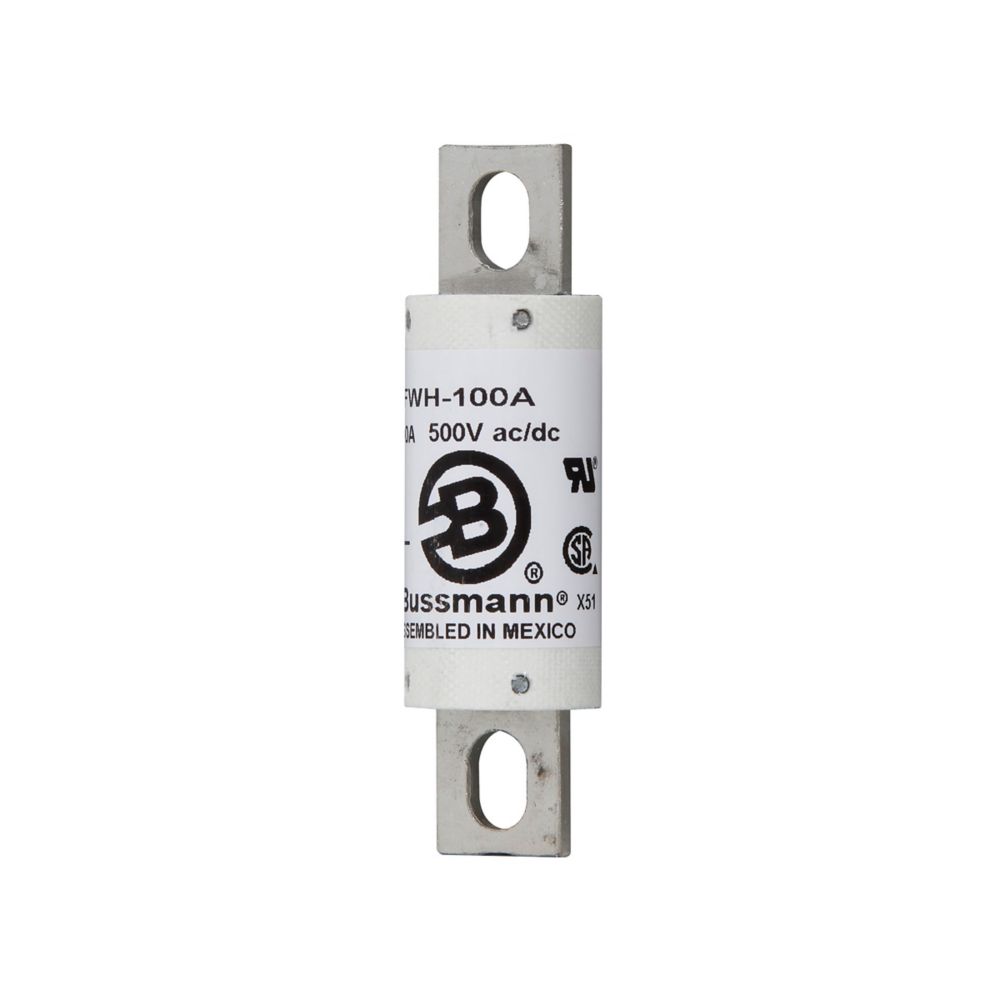

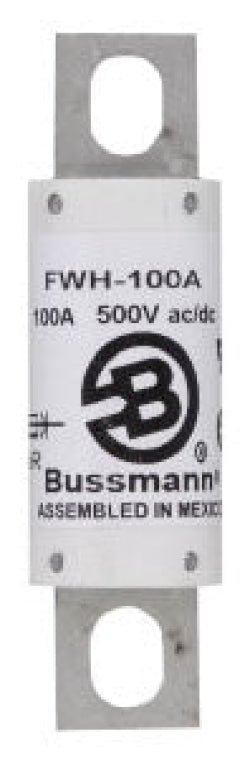

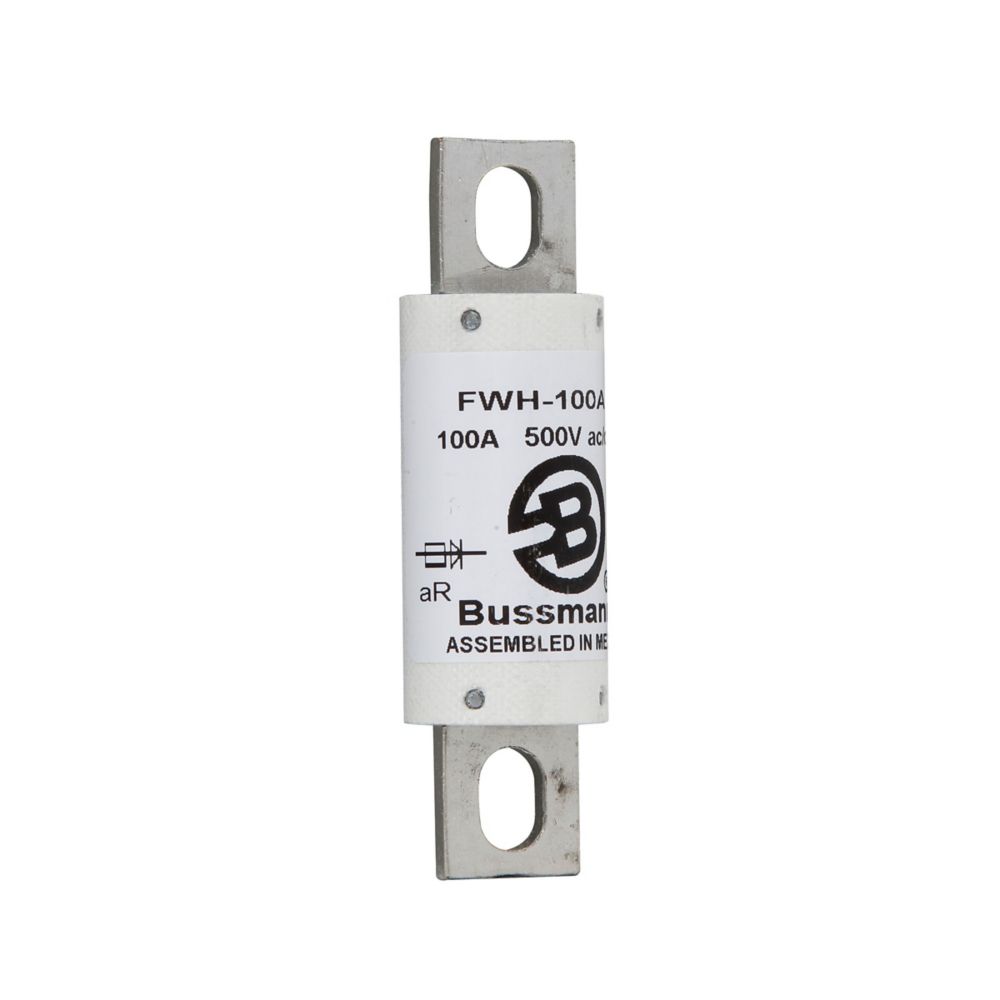

FWH-100A
FWH-100A is a high speed semiconductor fuse from Eaton Bussmann series rated for 100 amps and 1000 volts AC/DC with stud mounting.
This fuse features a non-indicating design, stud mounting method, and is suitable for high speed circuit protection applications. It supports up to 1000 VAC and 800 VDC voltage ratings with a 100 ampere current rating. The fuse provides reliable protection for semiconductor devices with fast-acting characteristics and complies with RoHS standards. It has a compact size and robust construction for industrial use.
- Key Specifications
- Amperage: 100 A
- Voltage Rating: 1000 VAC, 800 VDC
- Mounting Type: Stud Mount
- Fuse Type: High Speed Semiconductor
- Indication: Non Indicating
- Interrupting Rating: High (per Eaton standards)
- Series: Bussmann FWH
- Compliance: RoHS Compliant
- Physical Size: Approx. 1.12 in H x 1.8 in W x 4.6 in D
- Weight: 0.2 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWH-100A
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Type : FWH
- Voltage : 500
- Amperage : 100
- AIC rating : 200kA@500V
- Connection : Stud
Product Data
- UPC : 051712150088
- GTIN : 00051712150088
- Country of Origin : Mexico
- Dimensions : 4.6 in x 1.12 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.2
- Certification : CE, CSA Certified, UL Recognized
