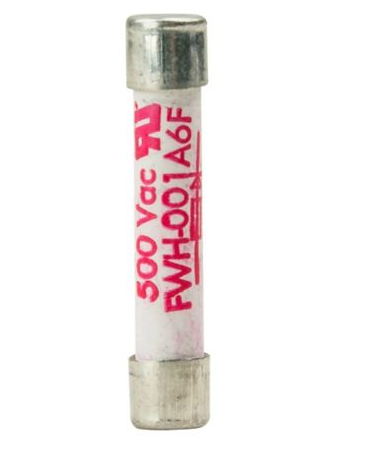

FWH-001A6F - Eaton Bussmann High Speed Cylindrical Fuse 1A 500V

FWH-001A6F

FWH-001A6F is an Eaton Bussmann series high speed cylindrical fuse designed for DC common bus and DC drive protection applications. This fast-blow fuse delivers reliable circuit protection with a 1A rating and supports both AC and DC voltages for versatile industrial use.Technical Specifications: The FWH-001A6F operates at 500 Vac for amperage ratings from 0.25A to 6.3A, and 500 Vdc for 2A to 5A ratings. It features a 50 kAIC (50,000 Amperes Interrupting Capacity) at 0.25A to 20A, and 20 kAIC at 25A to 30A. The fuse employs a clip termination style and comes without an indicator. Dimensions are 6.3 mm x 32 mm (3AG size), with a body length of approximately 31.8 mm. Opening time at 300% of rated current is less than or equal to 10 seconds for the 0.25A to 7A range.

• Amperage Rating: 1A
• Voltage Rating: 500 Vac / 500 Vdc
• Interrupting Capacity: 50 kAIC (0.25-20A), 20 kAIC (25-30A)
• Fuse Type: High Speed / Fast Blow
• Size: 6.3 mm x 32 mm (3AG)
• Termination: Clip
• Indicator: Non Indicating
• Series: Bussmann FWH
• Opening Time at 300%: Less than or equal to 10 seconds
• Application: DC common bus and DC drive protection

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FWH-001A6F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Voltage : 500
• Amperage : 1
• AIC rating : 50kA@500V
• Connection : Ferrule
• Diameter : 0.25
• Barrels : 1

Product Data

• UPC : 05171279664
• GTIN : 00051712796644
• Dimensions : 33 mm x 7 mm x 7 mm (Length/Depth x Height x Width)
• Weight : 0.00644
