Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

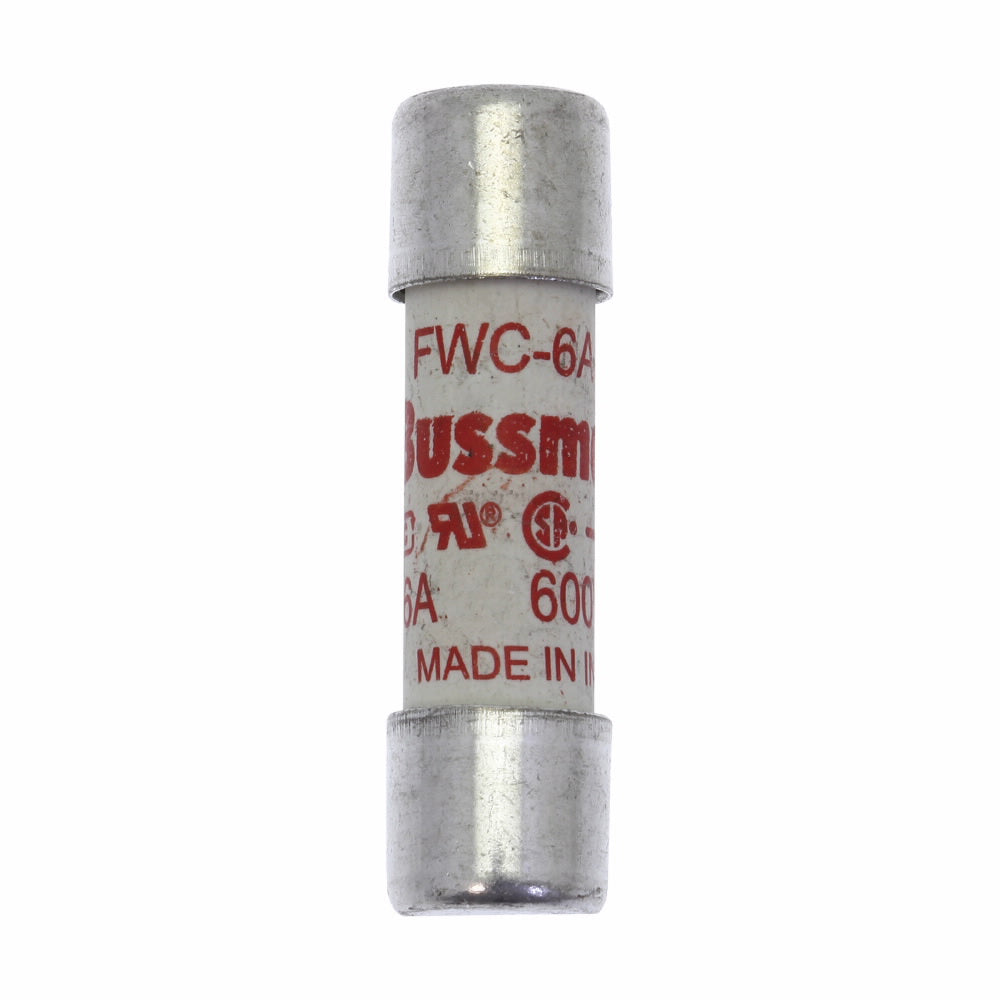

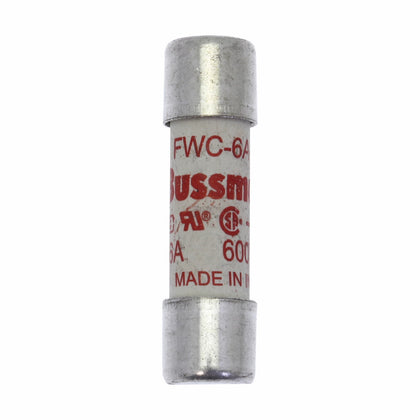

FWC-6A10F
FWC-6A10F is a high speed cylindrical fuse from Eaton Bussmann Series, designed for semiconductor and power conversion protection.
This non-indicating, fast blow fuse features a 10 x 38 mm ceramic body with ferrule ends, offering high interrupting capacity and low I2t for sensitive equipment. It is suitable for AC and DC applications, including drives, converters, and rectifiers, and meets international safety standards.
-
Key Specifications
- Amperage: 6A
- Voltage: 600V AC / 700V DC
- Poles: Single
- Mounting Type: Cartridge, ferrule end x ferrule end
- Interrupt Rating: 200kA AC / 10kA DC
- Series/Frame: Bussmann FWC
- Trip Unit: Not applicable (fuse)
- Certifications: UL Recognized, CSA Certified, CE Marked, RoHS Compliant
- Fuse Size: 10 x 38 mm (5AG Midget)
- Class: aR (accompanied semiconductor protection)
- Clearing I2t: 30
- Watt Losses: 1.5W
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: FWC-6A10F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 4.25
- Barrels : 1
Product Data
- UPC : 051712796415
- GTIN : 00051712796415
- Country of Origin : India
- Dimensions : 38 mm x 11 mm x 11 mm (Length/Depth x Height x Width)
- Weight : 0.0207
- Certification : CE, UL Recognized
