2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

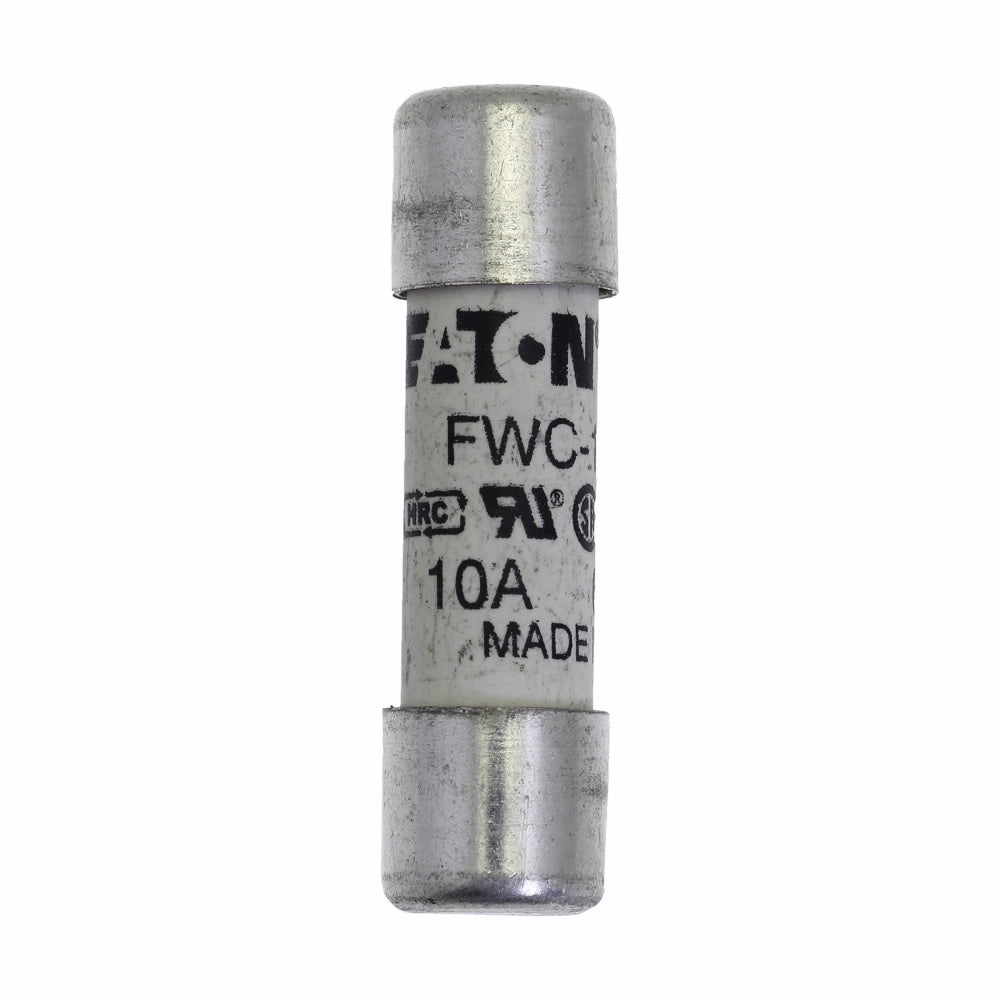

FWC-10A10F
FWC-10A10F is a high speed fuse from Cooper Bussmann Eaton designed for semiconductor and fast-acting circuit protection.
This 10 amp fuse supports up to 500 volts AC/DC with a 200 kA interrupt rating at 500 VAC and 50 kA at 700 VDC. It features a cylindrical 10 x 38 mm fiberglass body with ferrule terminals for holder mounting. The fuse is non-indicating and non-rejection type, classified as Class AR for excellent DC performance and low arc voltage. It is suitable for protecting sensitive electronic components and circuits requiring fast blow characteristics.
- Key Specifications
- Amperage: 10 A
- Voltage Rating: 500 V AC/DC
- Interrupt Rating: 200 kA at 500 VAC, 50 kA at 700 VDC
- Fuse Type: High Speed (Fast Blow)
- Body Size: 10 mm x 38 mm (5AG Midget)
- Mounting Type: Ferrule Terminal, Holder Mount
- Class: AR
- Indicating: Non-Indicating
- Rejection: Non-Rejection
- Material: Fiberglass Cylindrical Body
- Series: FWC
- Part Number: FWC-10A10F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 3
- Barrels : 1
- UPC : 051712796439
- GTIN : 00051712796439
- Country of Origin : India
- Dimensions : 38 mm x 11 mm x 11 mm (Length/Depth x Height x Width)
- Weight : 0.02024
- Certification : CE, UL Recognized
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
