Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWA-400B

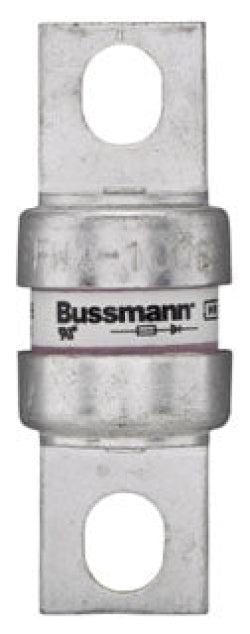

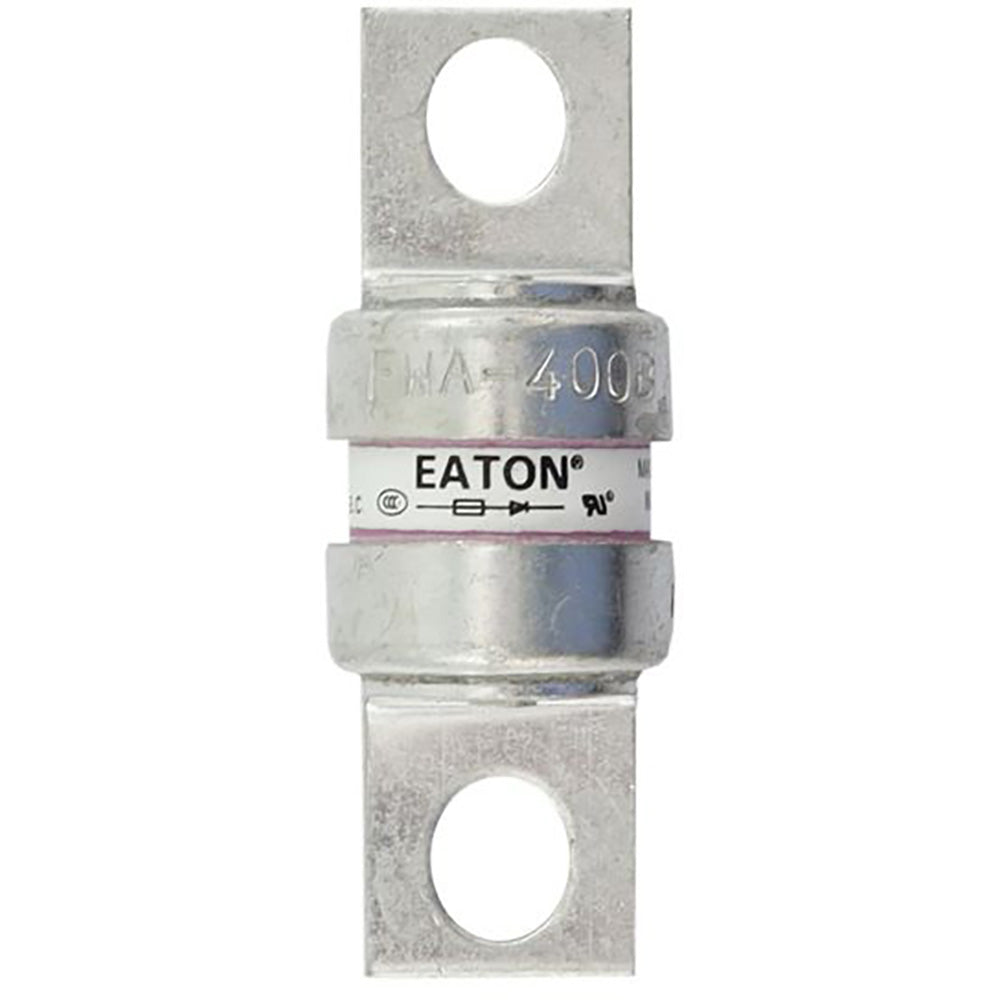

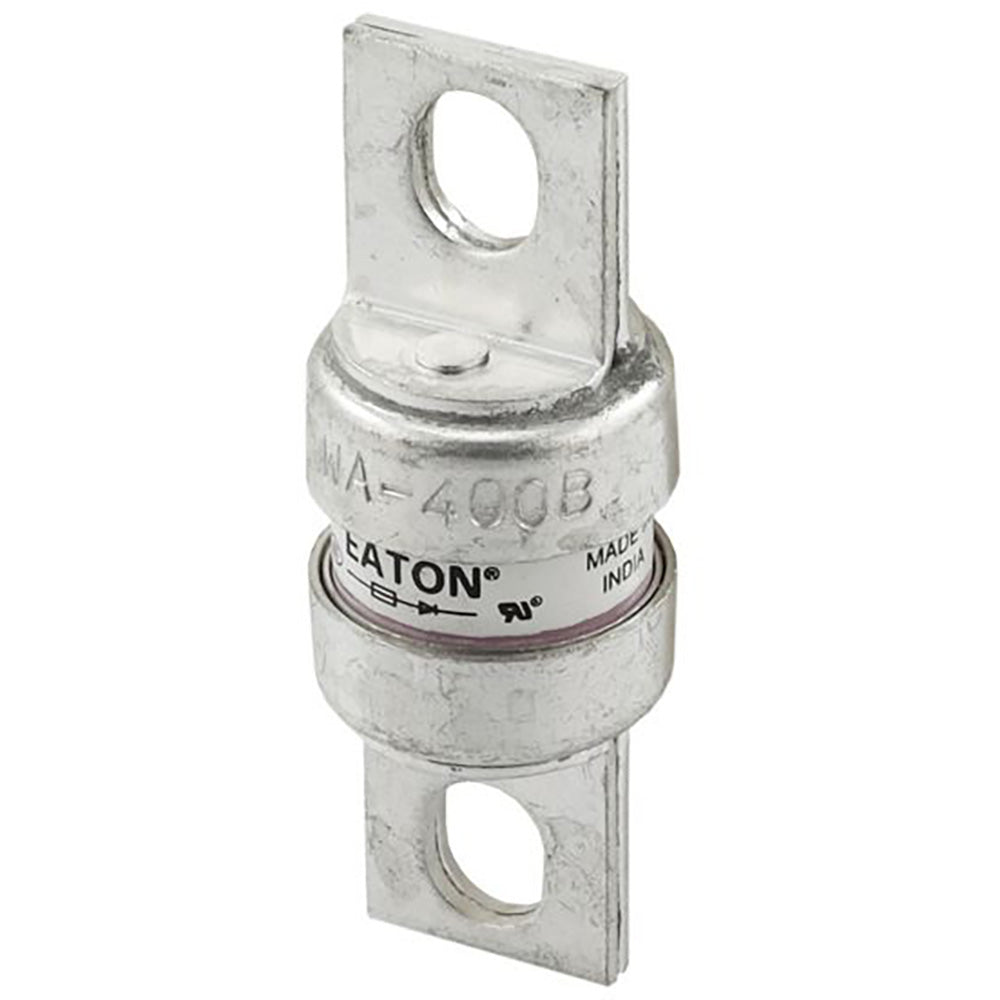

FWA-400B is a high speed semiconductor fuse from Eaton designed for AC/DC applications with a 400 amp rating and 150 volts. This Eaton Bussmann series fuse features a cylindrical cartridge body with blade end connections, rated for a breaking capacity of 100 kA at 150 V AC/DC. It is UL Recognized and RoHS compliant, suitable for semiconductor protection with a utilization category of aR. The fuse has a mounting stud dimension of M8 and a center-to-center connection distance of 50.75 mm.
- Key Specifications
- Amperage Rating: 400 A
- Rated Voltage: 150 V AC/DC
- Interrupting Rating: 100 kA
- Fuse Type: High Speed Semiconductor
- Body Style: Cylindrical Cartridge
- Mounting Type: Stud (M8)
- Utilization Category: aR (semiconductor protection)
- Certifications: UL Recognized, RoHS Compliant, CE Marked
- Fuse Indicator: Non-Indicating
- Current Type: AC/DC
- Dimensions: 26 mm x 26 mm x 72 mm
- Weight: 108 g
Specifications
- Part Number: FWA-400B
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : FWA Series
- Type : FWA
- Voltage : 150
- Amperage : 400
- AIC rating : 100kA@150V
- Connection : Stud
- Diameter : 1
- Barrels : 1
Product Data
- UPC : 051712577878
- GTIN : 00051712577878
- Country of Origin : India
- Dimensions : 26 mm x 26 mm x 72 mm (Length/Depth x Height x Width)
- Weight : 0.2484
- Certification : CE, UL Recognized
