Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FWA-20A10F

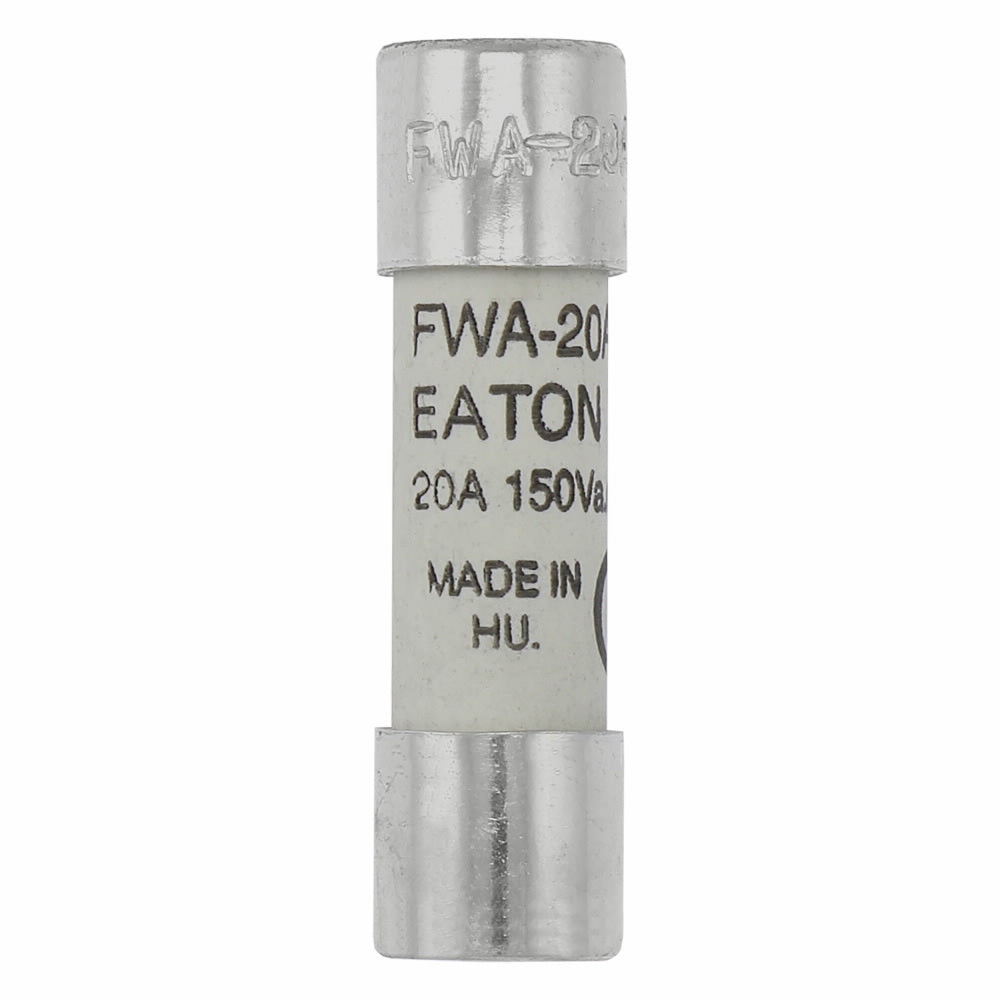

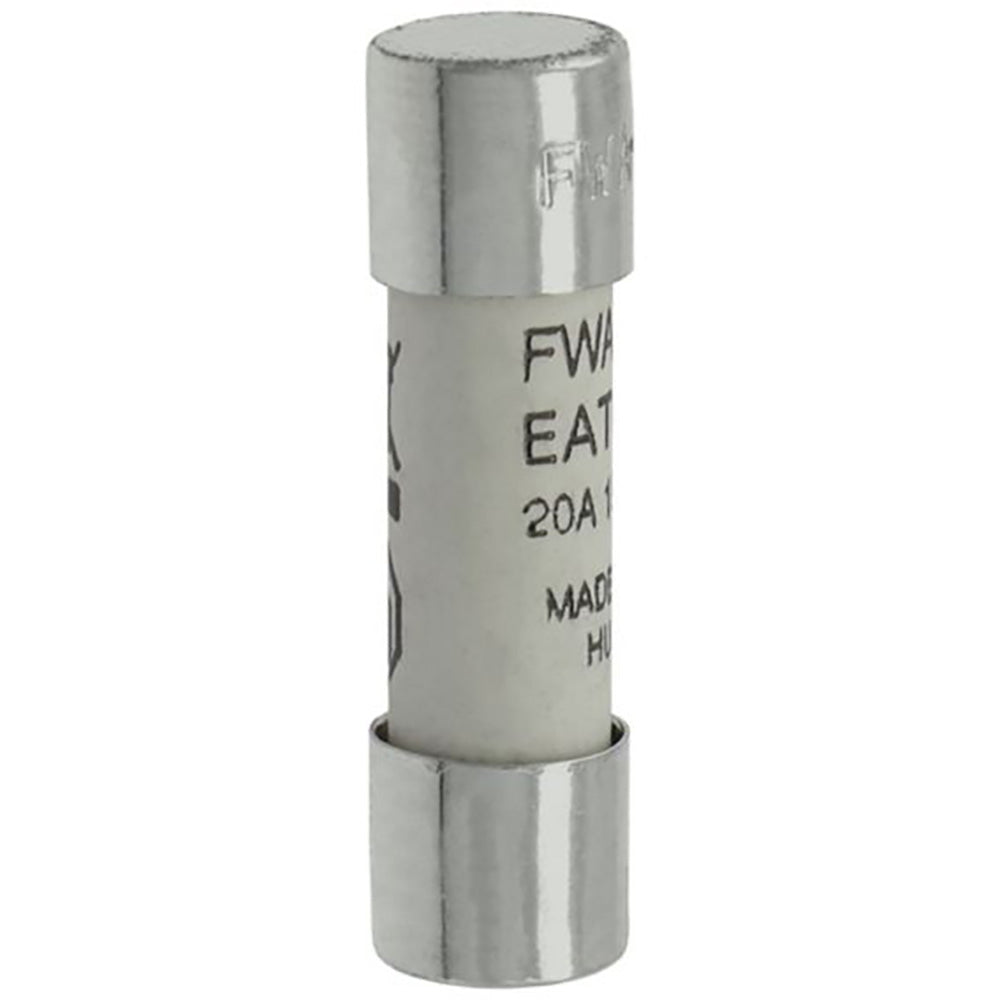

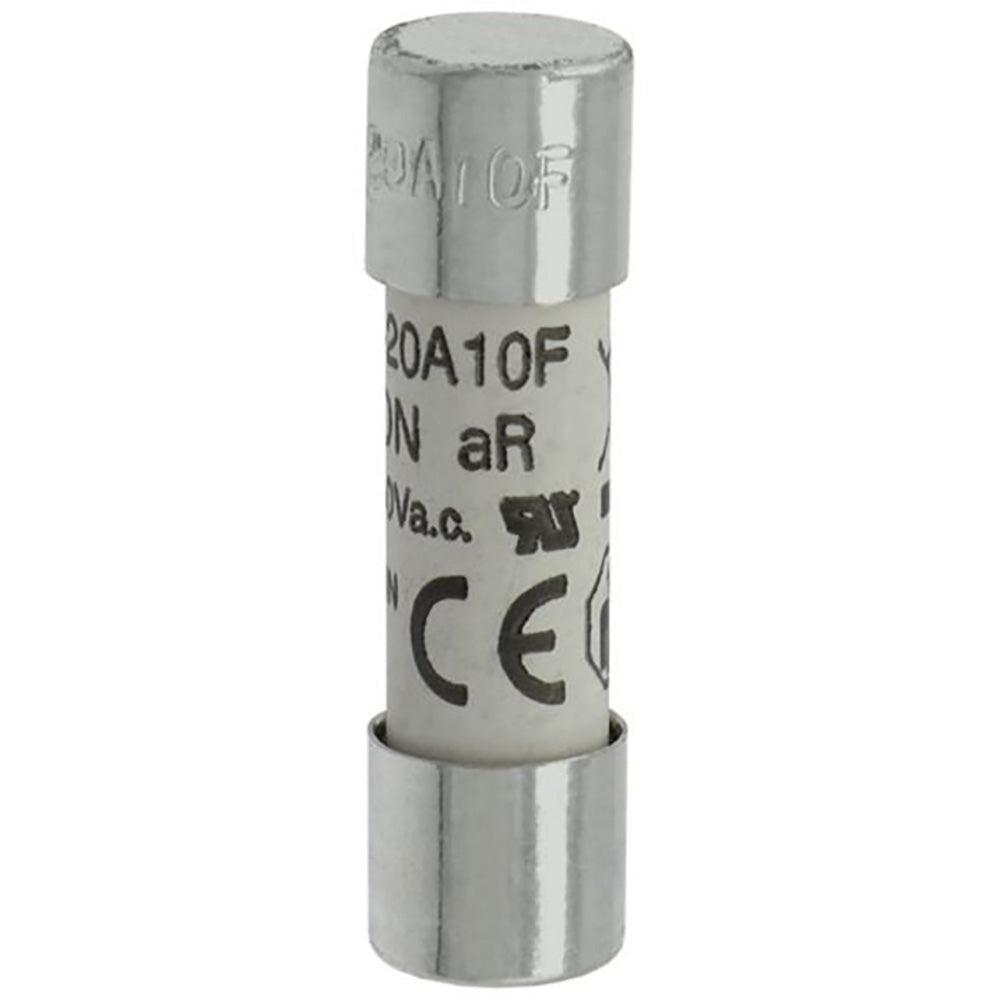

FWA-20A10F is an Eaton Bussmann series high speed semiconductor fuse rated for 20 amps and 150 volts AC/DC.This ferrule-style fuse measures 10 x 38 mm and features a stud mounting type. It has a high interrupt rating of 100 kAIC, making it suitable for semiconductor protection, DC common bus, DC drives, and power converters/rectifiers. The fuse is CE marked, RoHS compliant, and CSA certified with UL recognition. It offers low arc voltage, low energy let-through, and excellent cycling capability.
- Amperage: 20 A
- Voltage Rating: 150 V AC/DC
- Interrupt Rating: 100 kAIC
- Fuse Size: 10 x 38 mm
- Mounting Type: Stud
- Class: aR (semiconductor fuse)
- Certifications: CE Marked, RoHS Compliant, CSA Certified, UL Recognized
- Fuse Indicator: Non-indicating
- Watt Losses: 3.8 W
- Application: Semiconductor, DC common bus, DC drives, power converters/rectifiers
Specifications
- Part Number: FWA-20A10F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 150
- Amperage : 20
- AIC rating : 100kA@150V
- Connection : Ferrule
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 05171279522
- GTIN : 00051712795227
- Country of Origin : Hungary
- Dimensions : 39 mm x 11 mm x 11 mm (Length/Depth x Height x Width)
- Weight : 0.02116
- Certification : CE, UL Recognized
