Product Info
- Manufacturer:Siemens
- Sub-Category:Parts & Accessories
Description
FS140

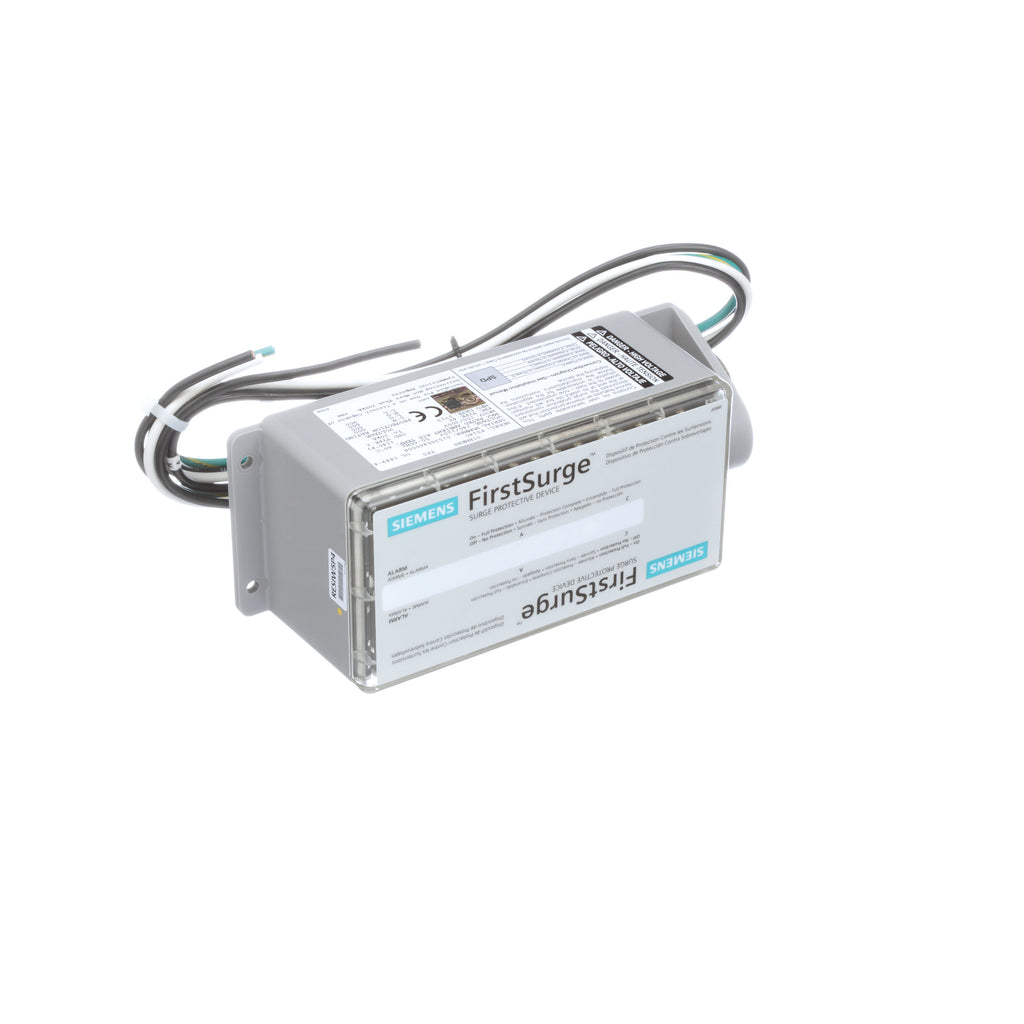

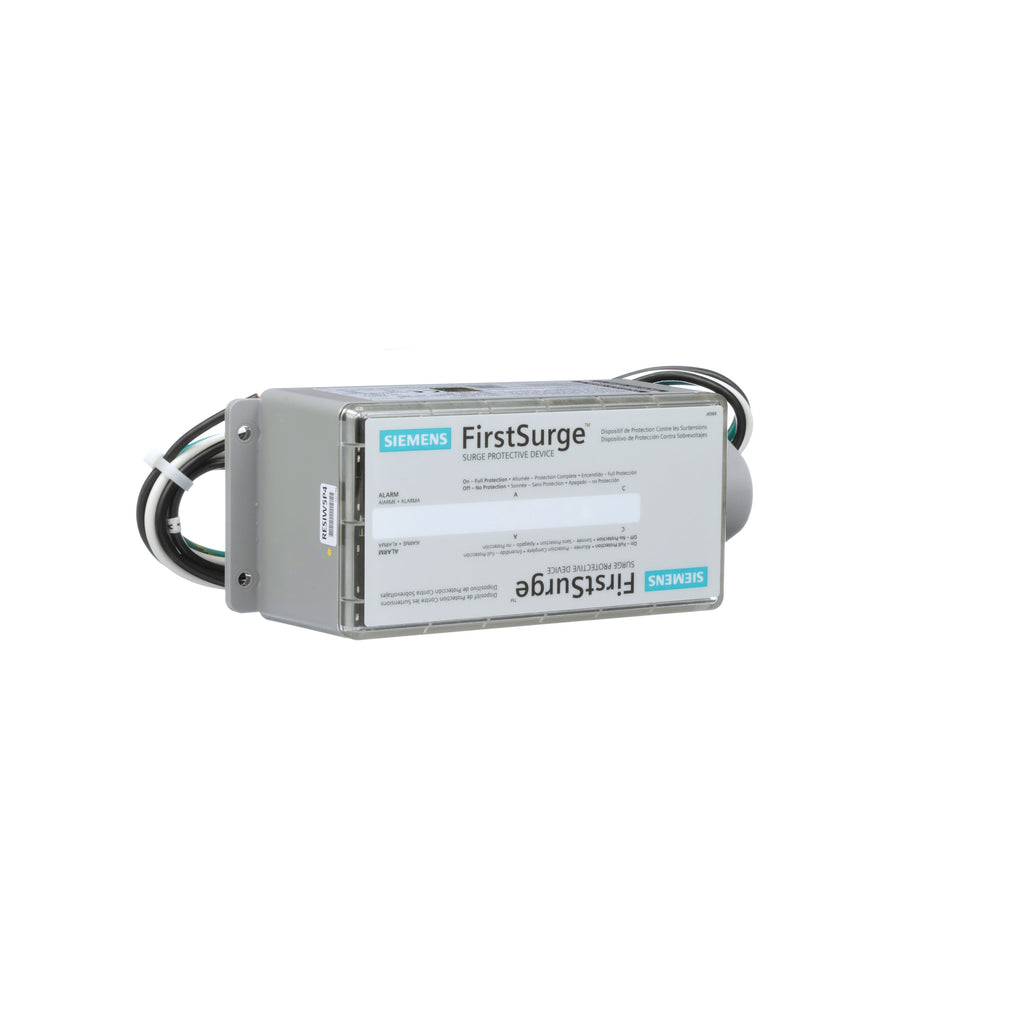

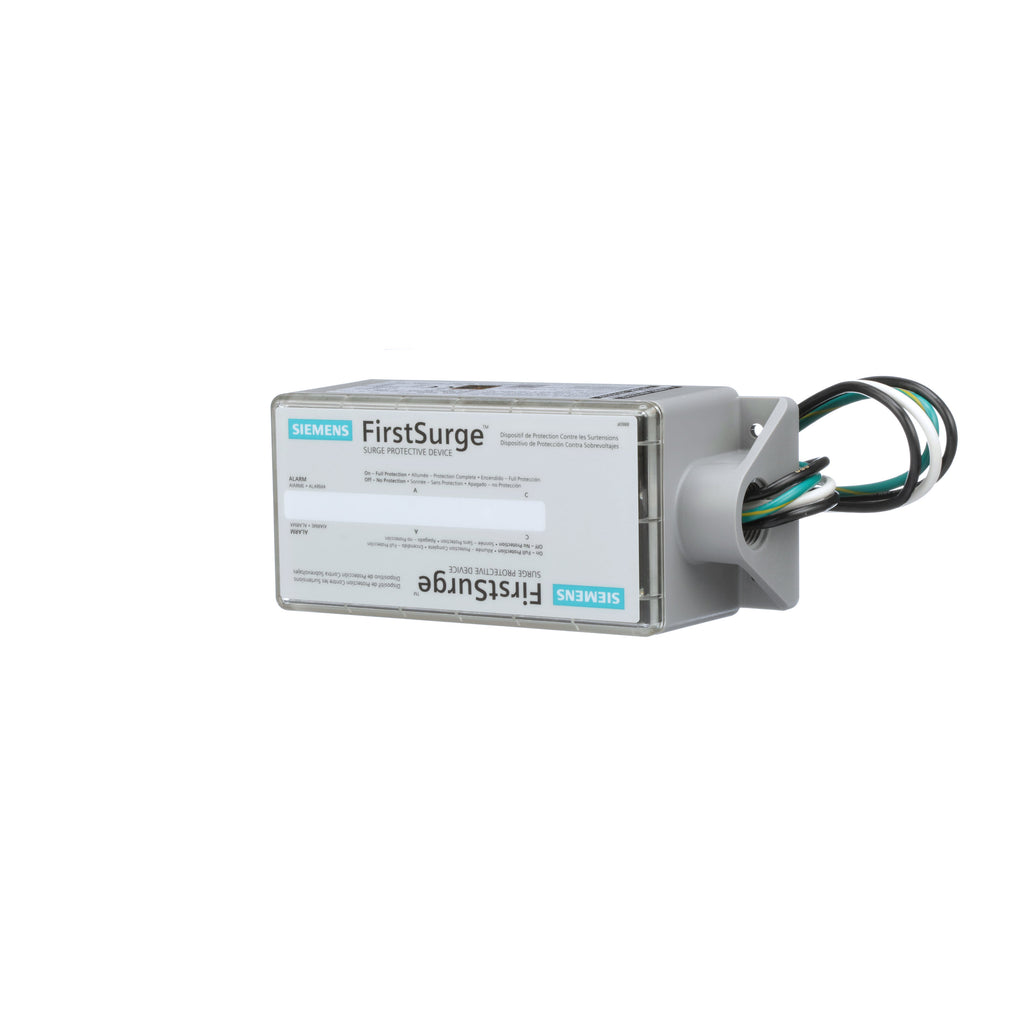

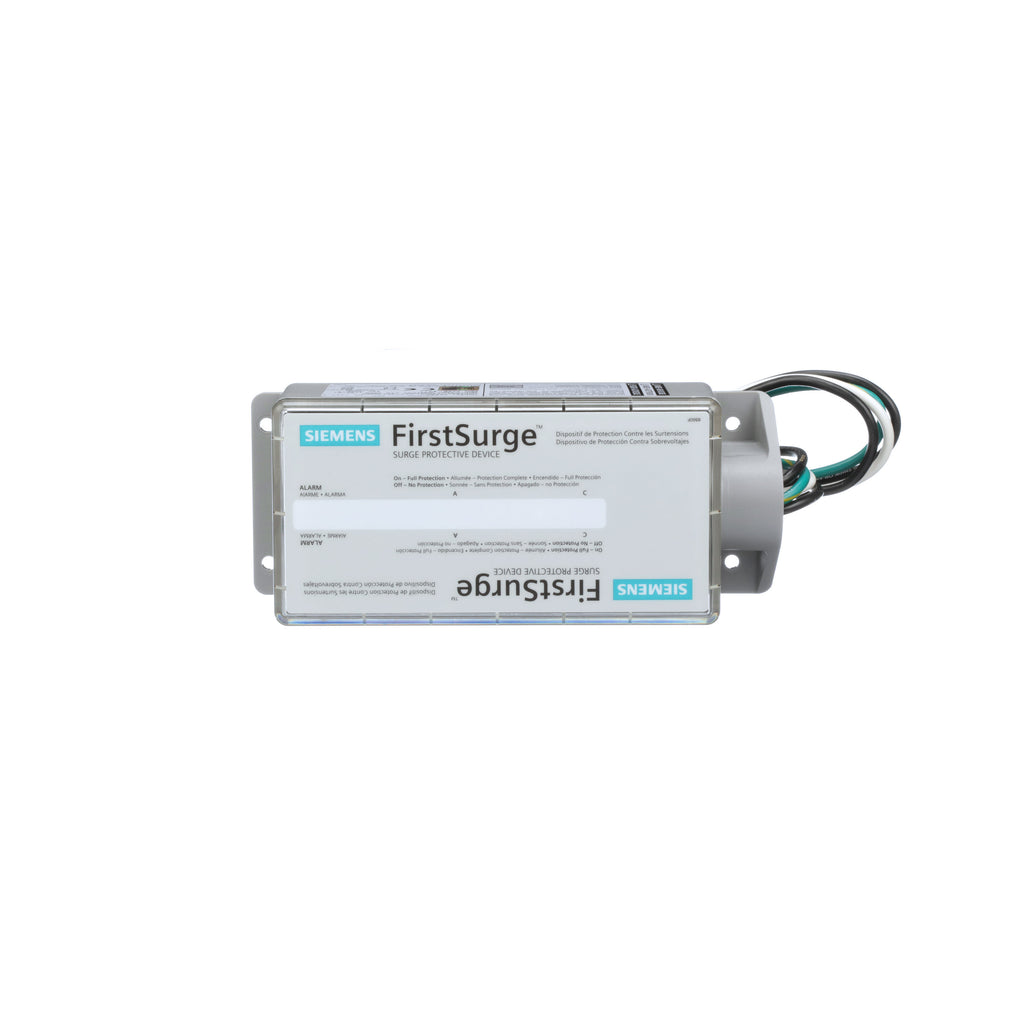

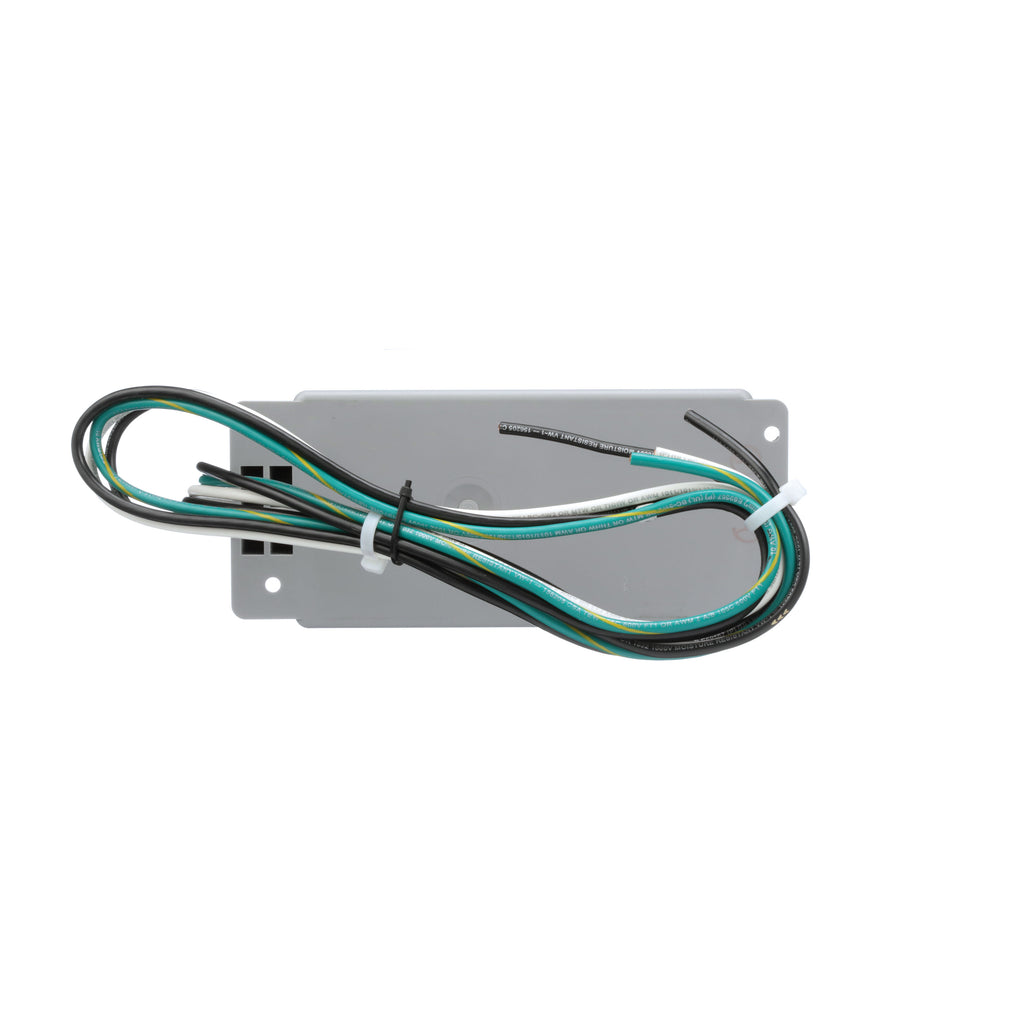

FS140 is a Siemens surge protection device designed for 120/240V split phase electrical systems with a high surge current capacity of 140,000 amps.FS140 features a 2-pole configuration, chase nipple mounting style, and is UL 1449 listed as a Type 2 Surge Protective Device. It includes LED status indicators, audible alarm, and ground reference monitoring for reliable surge protection. The device is rated for a short circuit current of 100kA and is suitable for use in residential and light commercial panels with a recommended 20A breaker. Its enclosure is polycarbonate with a NEMA 4X rating, and it operates in temperatures from -40°F to +185°F.
- Key Specifications
- Surge Current Capacity: 140,000 Amps
- Voltage Rating: 120/240V Split Phase
- Poles: 2
- Mounting Type: Chase Nipple
- Short Circuit Current Rating (SCCR): 100kA
- UL 1449 Listed, Type 2 SPD
- Enclosure Material: Polycarbonate, NEMA 4X
- Operating Temperature: -40°F to +185°F
- Wire Gauge: 10 AWG
- Phase: Single Phase
- Indicators: LED status, audible alarm, ground reference monitoring
- Recommended Breaker Size: 20A
Specifications
- Part Number: FS140
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Parts & Accessories
- Section : Surge Protection
- Family : First Surge
- Type : FS
- Voltage : 120/240
- Phase : 1
- Poles : 2
- Temp Rating : -13–158 °F (-25–70 °C)
Product Data
- UPC : 804766055560
- GTIN : 00804766055560
- Weight : 2.998 lb
- Certification : ANSI/IEEE, UL
- Wire Size : 10 AWG
