Product Info
- Manufacturer:Eaton
- Sub-Category:High Voltage
Description
FRS250

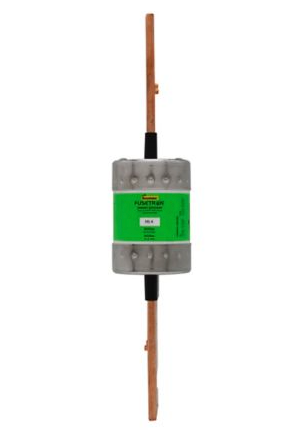

FRS250 is a Cooper Bussmann 250 Amp, 600 Volt AC Class RK5 time delay dual element fuse designed for reliable circuit protection.This fuse features a dual element design with a 10-second time delay at 500% rated load, providing current limiting and high interrupting ratings of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It measures approximately 2.34 inches in diameter and 11.63 inches in length, with blade terminals for mounting. Certified to UL 248-12 and CSA standards, it is suitable for industrial and commercial applications requiring dependable overcurrent protection.
- Key Specifications
- Amperage: 250 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Class: RK5
- Time Delay: 10 seconds at 500% rated load
- Interrupting Rating: 200,000 AIC (AC), 20,000 AIC (DC)
- Dual Element Design
- Current Limiting
- Blade Terminal Mounting
- Dimensions: 2.34" diameter x 11.63" length
- Certifications: UL Listed, CSA Certified
- Part Number: FRS250
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : High Voltage
- Diameter : 0.81
- Barrels : 1
- Weight : 1.2
