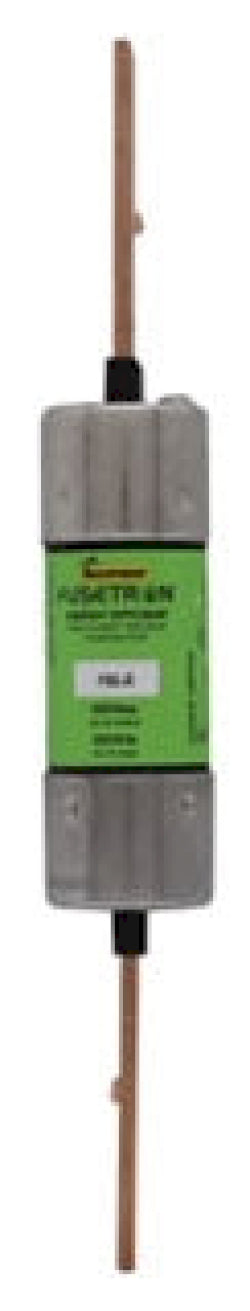

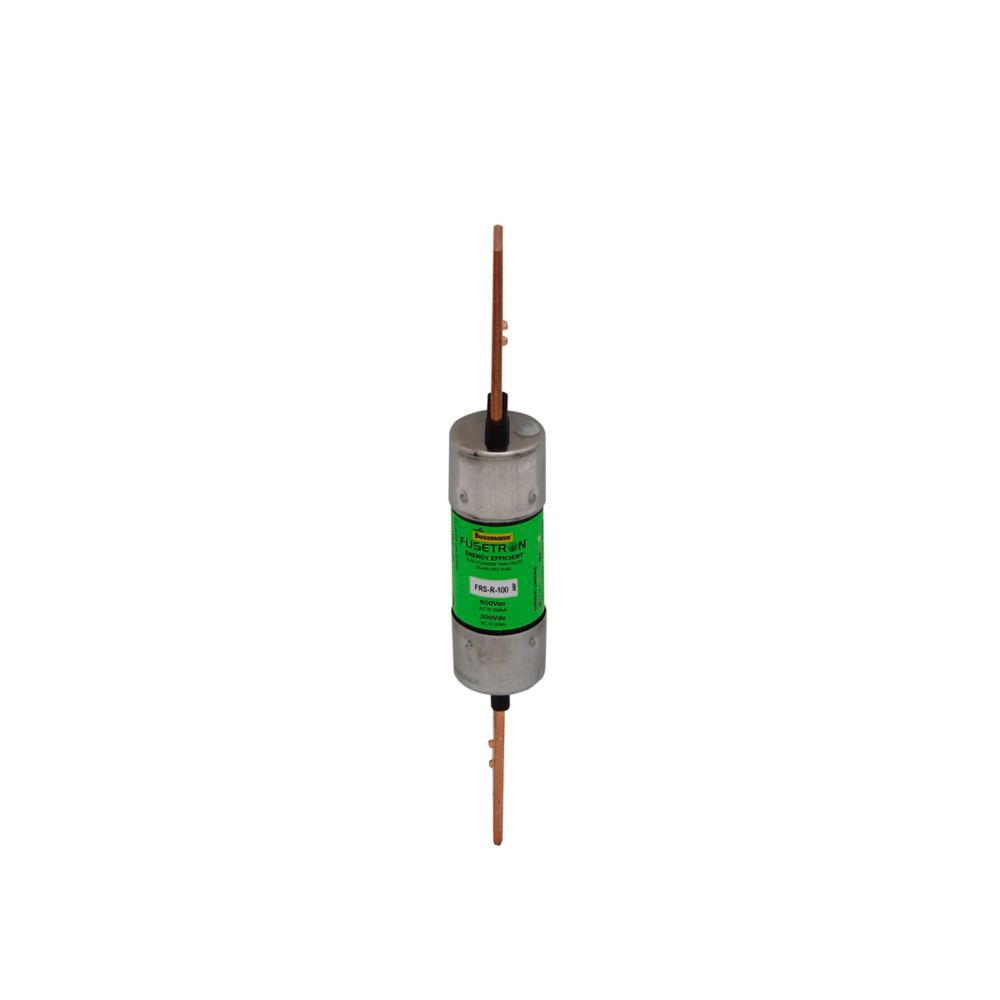

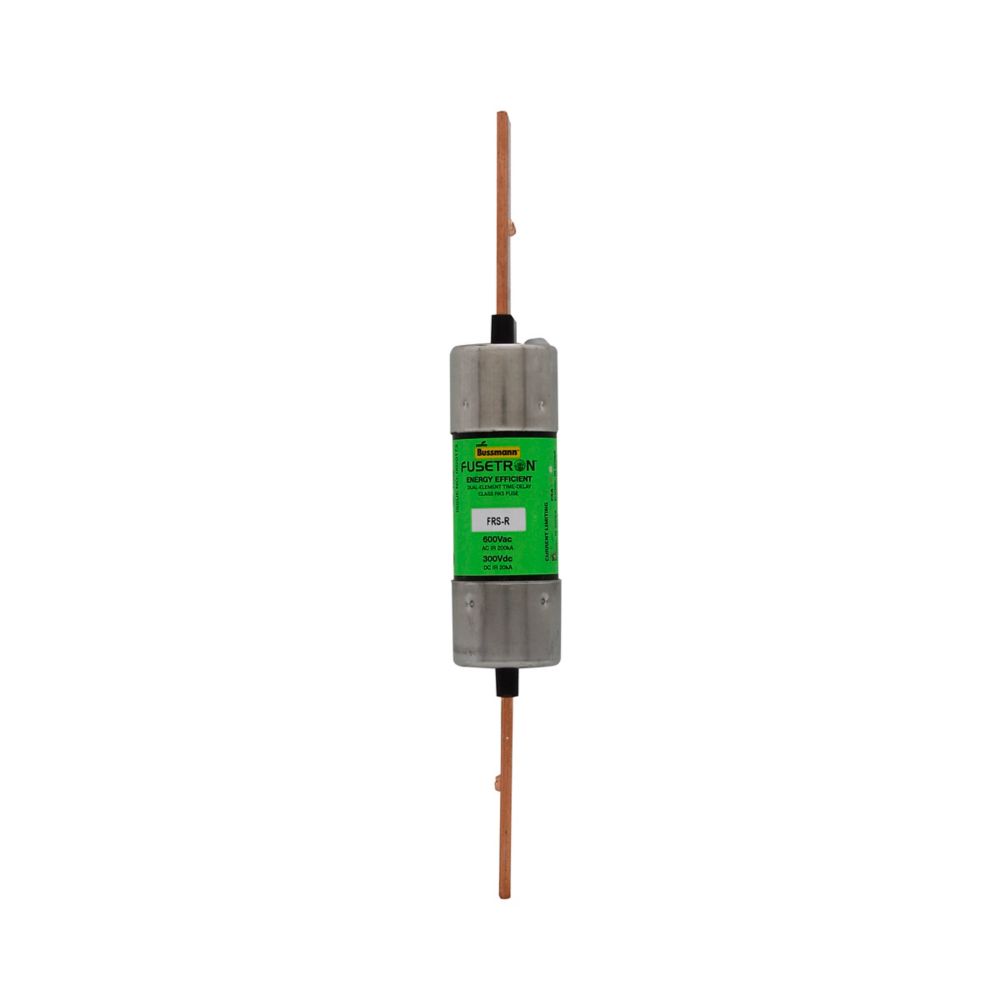

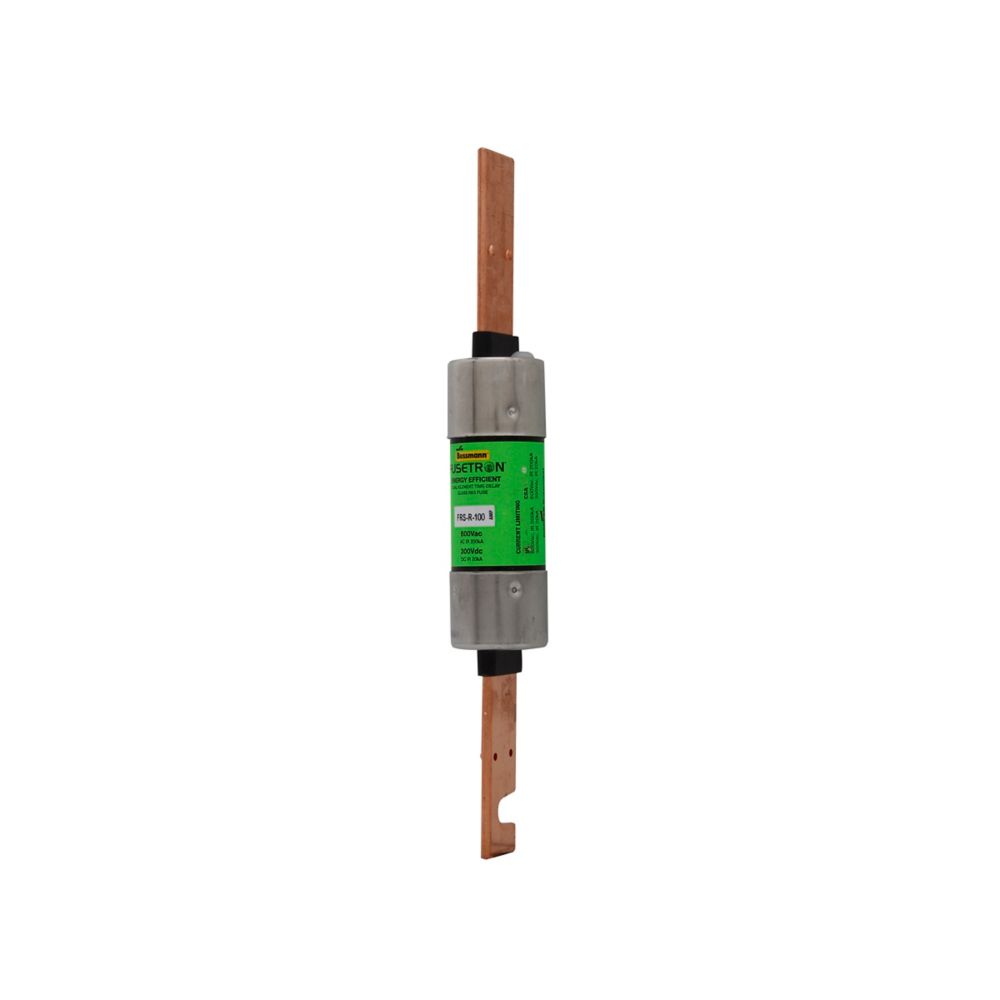

FRS-R-90 - Eaton Bussmann 90A 600V Dual Element Class RK5 Time Delay Fuse

FRS-R-90

FRS-R-90 is a 90 amp, 600 volt dual element, time-delay fuse from Eaton Bussmann designed for reliable circuit protection.This Class RK5 fuse features a dual-element design with current-limiting characteristics and a time-delay response of 10 seconds at 500% overload. It has a high interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, suitable for demanding electrical applications. The fuse is non-indicating with blade end terminals and is CE marked, UL listed, and CSA certified.

• Amperage Rating: 90 A
• Voltage Rating: 600 Vac / 300 Vdc
• Class: RK5
• Fuse Type: Dual Element, Time Delay
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Response Time: 10 seconds at 500% overload
• Connection Type: Blade end x blade end
• Fuse Indicator: Non-indicating
• Certifications: CE Marked, UL Listed, CSA Certified
• Physical Size: 1.11" x 7.88"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-90
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 90
• AIC rating : 200kA@600V
• Diameter : 1.11
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508421
• GTIN : 00051712508421
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.34 in x 1.34 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
