FRS-R-8 - Eaton Bussmann 8A 600V Class RK5 Time-Delay Dual Element Fuse

FRS-R-8

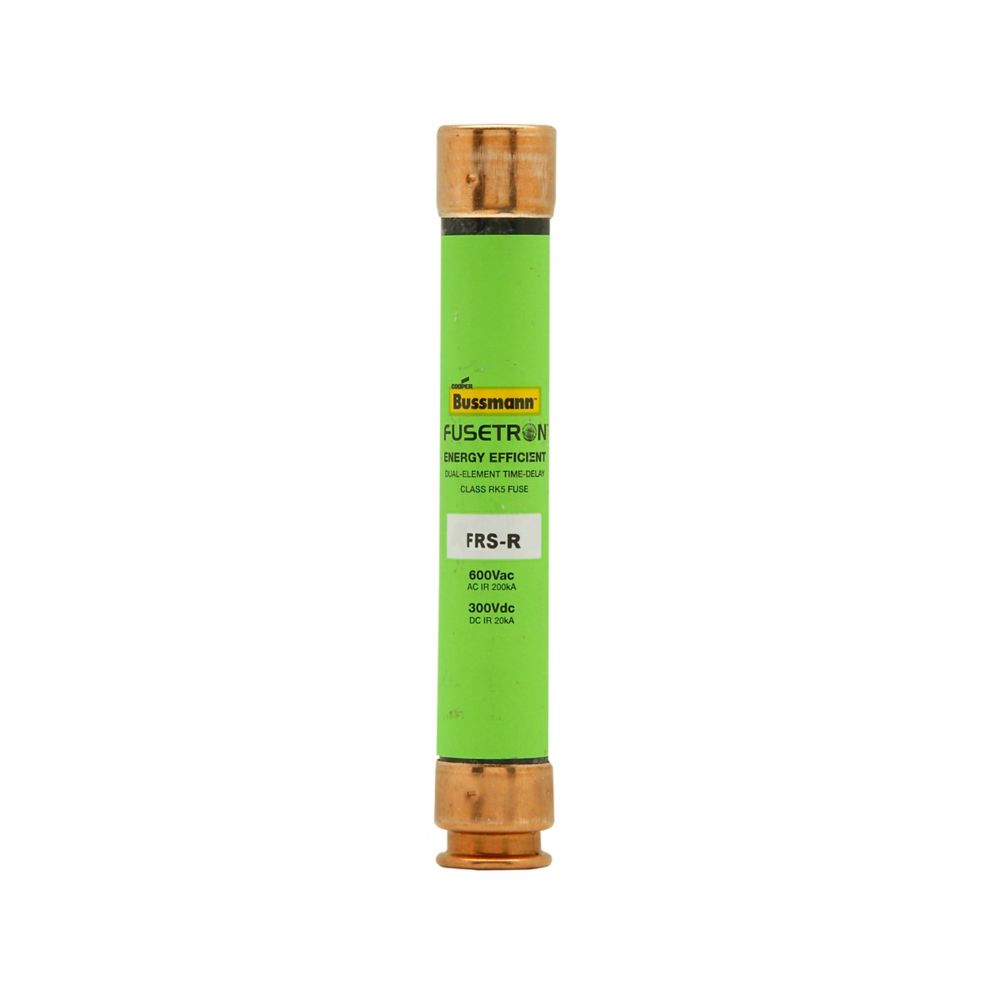

FRS-R-8 is an Eaton Bussmann Class RK5 time-delay dual-element fuse rated for 8 amperes and 600 volts AC.This fuse features a current-limiting design with a dual-element construction providing time-delay protection. It has an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, making it suitable for protecting circuits against overloads and short circuits. The fuse is non-indicating with ferrule end connections and complies with CE marking and UL 248-12 and CSA certifications.

Key Specifications
• Amperage Rating: 8 A
• Voltage Rating: 600 Vac / 300 Vdc
• Class: RK5
• Time Delay: 10 seconds at 500% rated load
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Dual Element, Current Limiting
• Non-Indicating Fuse
• Connection Type: Ferrule end x ferrule end
• Certifications: UL Listed, CSA Certified, CE Marked
• Physical Size: 0.81" diameter x 5" length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-8
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 8
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508261
• GTIN : 00051712508261
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.15
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
