FRS-R-70 - Eaton Bussmann Cooper Bussmann 70A 600V Class RK5 Time Delay Dual Element Cartridge Fuse, 200 kAIC, Blade End, Non-Indicating, UL Listed

FRS-R-70

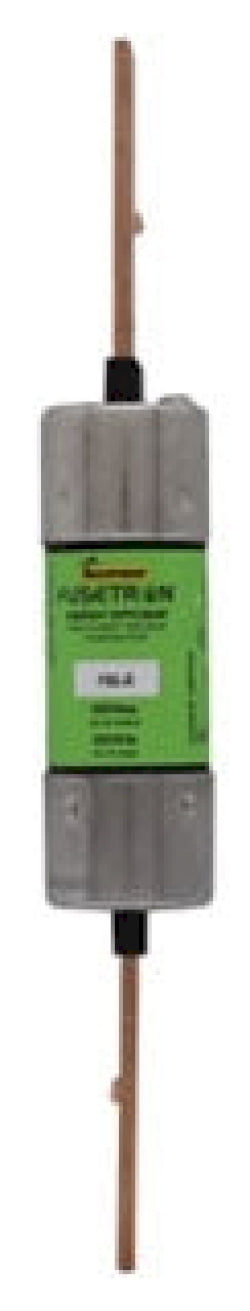

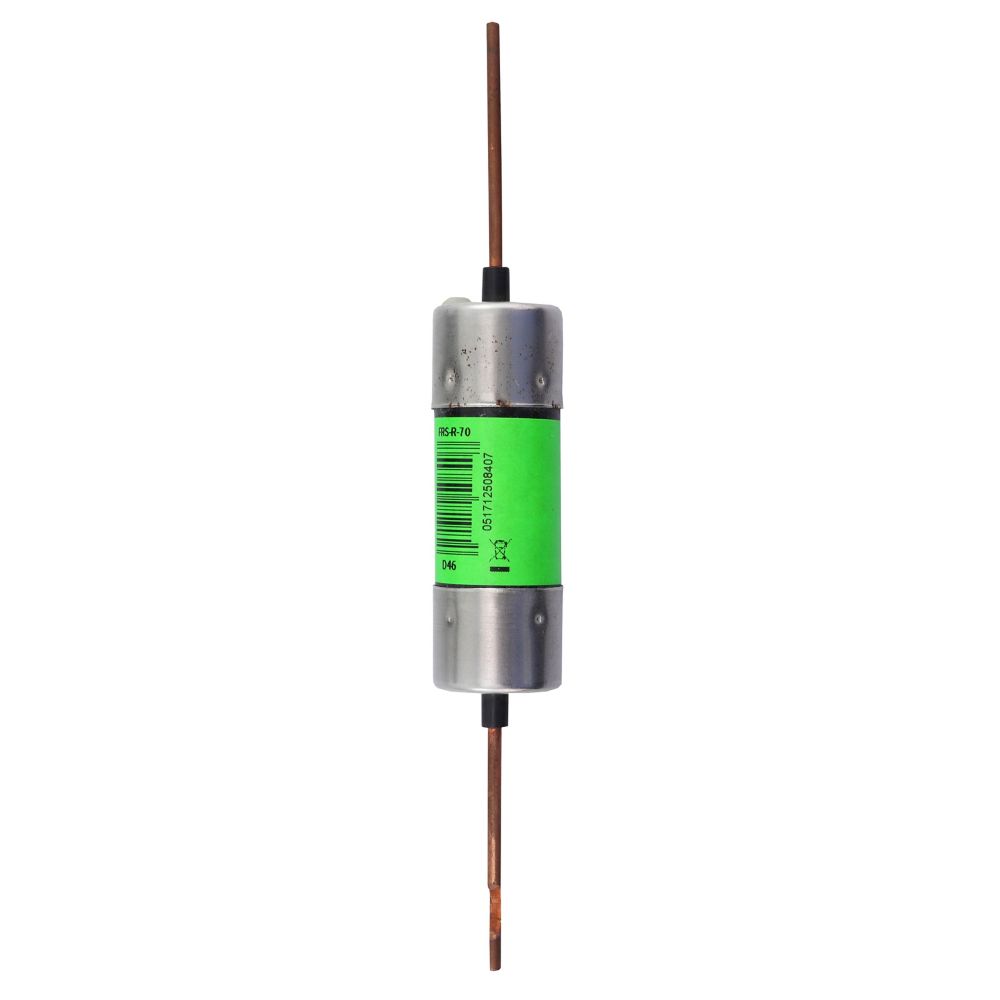

FRS-R-70 is a 70A, 600VAC/300VDC, Class RK5, time-delay, dual-element cartridge fuse from Eaton Bussmann, designed for advanced circuit protection in demanding electrical applications.

This fuse features a current-limiting design with a 10-second minimum time delay at 500% of rated current, providing reliable protection against overloads and short circuits. It is non-indicating, has blade end connections, and is suitable for use in a wide range of industrial and commercial settings. The FRS-R-70 is part of the Fusetron™ FRS-R series, known for high interrupting capacity and robust construction.

Key Specifications
• Amperage: 70A
• Voltage: 600VAC/300VDC
• Poles: Single
• Mounting Type: Cartridge, blade end x blade end
• Interrupt Rating: 200 kAIC at 600VAC, 20 kAIC at 300VDC
• Series/Frame: FRS-R
• Trip Unit: Dual element, time delay (10 sec at 500%)
• Certifications: UL Listed, CSA, CE
• Dimensions: 1.11" diameter x 7.88" length
• Non-indicating (no trip indicator)
• Package Type: Single slotted
• Net Weight: 0.35 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-70
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 70
• AIC rating : 200kA@600V
• Diameter : 1.11
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508407
• GTIN : 00051712508407
• Country of Origin : Mexico
• Dimensions : 7.88 in x 1.34 in x 1.34 in (Length/Depth x Height x Width)
• Weight : 0.35
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
