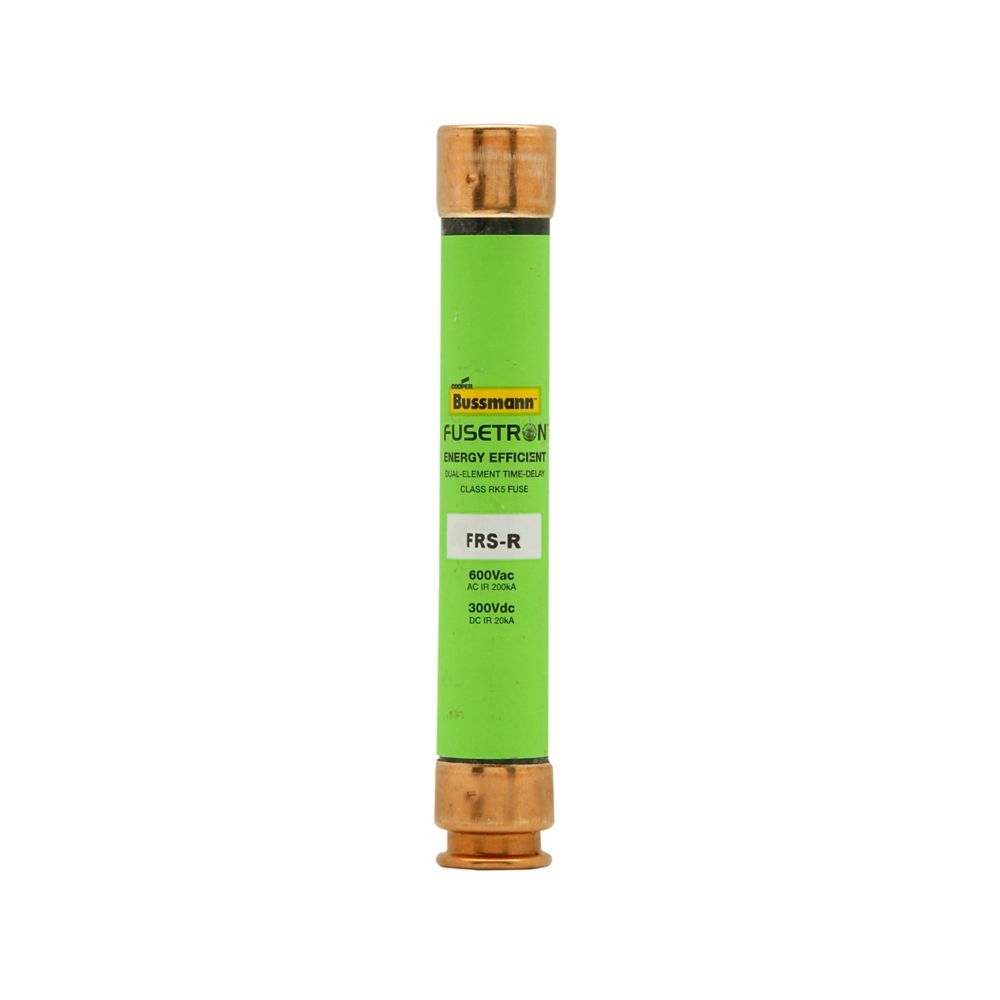

FRS-R-7 - Eaton Bussmann 7 Amp 600 Volt Class RK5 Time Delay Dual Element Fuse

FRS-R-7

FRS-R-7 is a 7 amp, 600 volt Class RK5 time delay dual element fuse from Eaton Bussmann designed for reliable circuit protection.This fuse features a 10 second time delay at 500% rated load, current limiting dual element construction, and a ferrule terminal end type. It has an interrupting rating of 200,000 amperes symmetrical at 600 Vac and 20,000 amperes at 300 Vdc. The fuse measures 0.81 inch in diameter and 5 inches in length. It is UL listed (UL 248-12), CSA certified, and CE approved, suitable for industrial and commercial applications requiring Class RK5 fuse protection.

Key Specifications
• Amperage: 7 Amps
• Voltage Rating: 600 Vac / 300 Vdc
• Fuse Class: RK5
• Time Delay: 10 seconds at 500% rated load
• Interrupting Rating: 200,000 A Symmetrical (600 Vac), 20,000 A (300 Vdc)
• Fuse Type: Dual Element, Current Limiting
• End Type: Ferrule Terminal
• Dimensions: 0.81 inch diameter x 5 inch length
• Certifications: UL Listed, CSA Certified, CE Approved
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-7
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 7
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508254
• GTIN : 00051712508254
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.127
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
