FRS-R-6/10 - Eaton Bussmann 6/10 Amp 600V Class RK5 Time Delay Fuse Dual Element

FRS-R-6/10

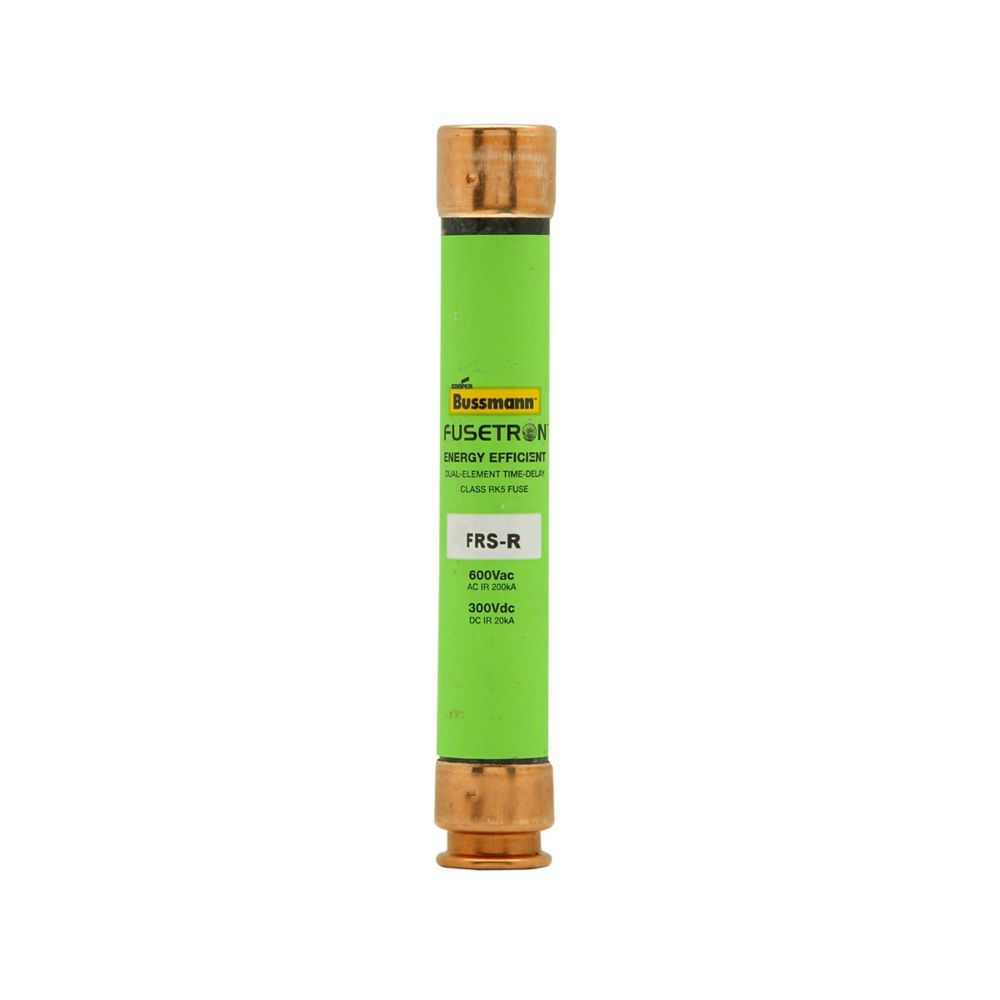

FRS-R-6/10 is a dual element, time delay fuse from Eaton Bussmann designed for reliable circuit protection.This Class RK5 Fusetron fuse features a 6/10 amp rating with 600 VAC/300 VDC voltage capacity, providing current limiting and a 10-second time delay at 500% rated load. It has a ferrule terminal mounting type, 0.81 inch diameter, and 5 inch length. The fuse offers a high interrupting rating of 200,000 amps symmetrical AC and 20,000 amps DC, meeting UL 248-12, CSA, and CE certifications.

Key Specifications
• Amperage: 6/10 Amp
• Voltage: 600 VAC / 300 VDC
• Fuse Class: RK5
• Time Delay: 10 seconds at 500% rated current
• Interrupting Rating: 200,000 A AC / 20,000 A DC
• Mounting Type: Ferrule Terminal
• Diameter: 0.81 inch
• Length: 5 inch
• Series: FRS-R
• Certifications: UL 248-12, CSA, CE
• Current Limiting: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-6/10
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508063
• GTIN : 00051712508063
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.146
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
