Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-6-1/4ID

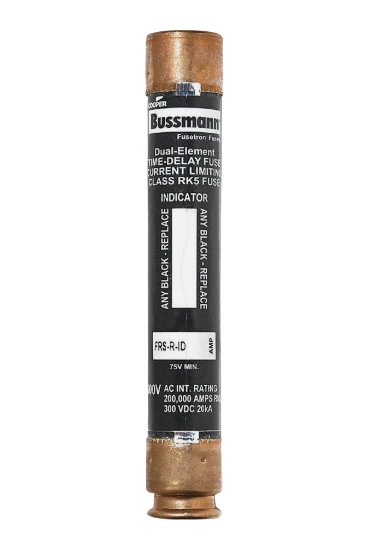

FRS-R-6-1/4ID is an Eaton Bussmann series Class RK5 dual-element, time-delay fuse designed for motor overload, ground fault, and short-circuit protection in circuits subject to surge currents from motors, transformers, and other inductive components. Key Specifications
- Amperage Rating: 6.25 A
- Voltage Rating: 600 Vac, 300 Vdc
- Interrupt Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
- Class: RK5
- Time-Delay: 10 seconds minimum at 500% of rated current
- Dual-Element Design
- Current-Limiting
- Fuse Indicator: Indicating
- Connection: Ferrule end x ferrule end
- UL Listed, Standard 248-12
Specifications
- Part Number: FRS-R-6-1/4ID
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 05171220449
- GTIN : 00051712204491
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.13
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
