Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-6-1/4

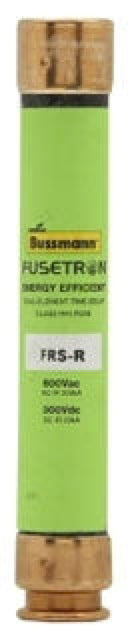

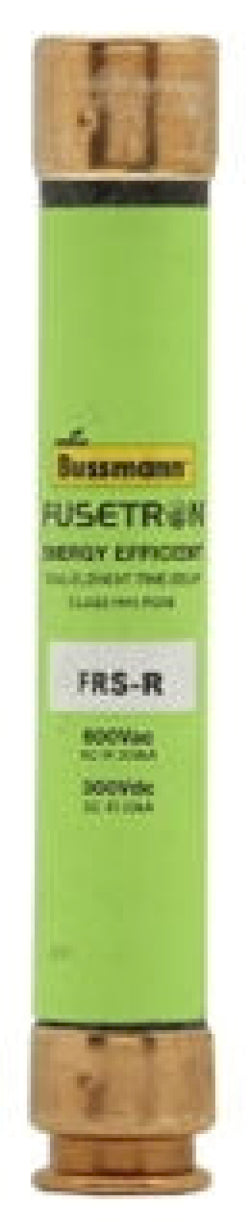

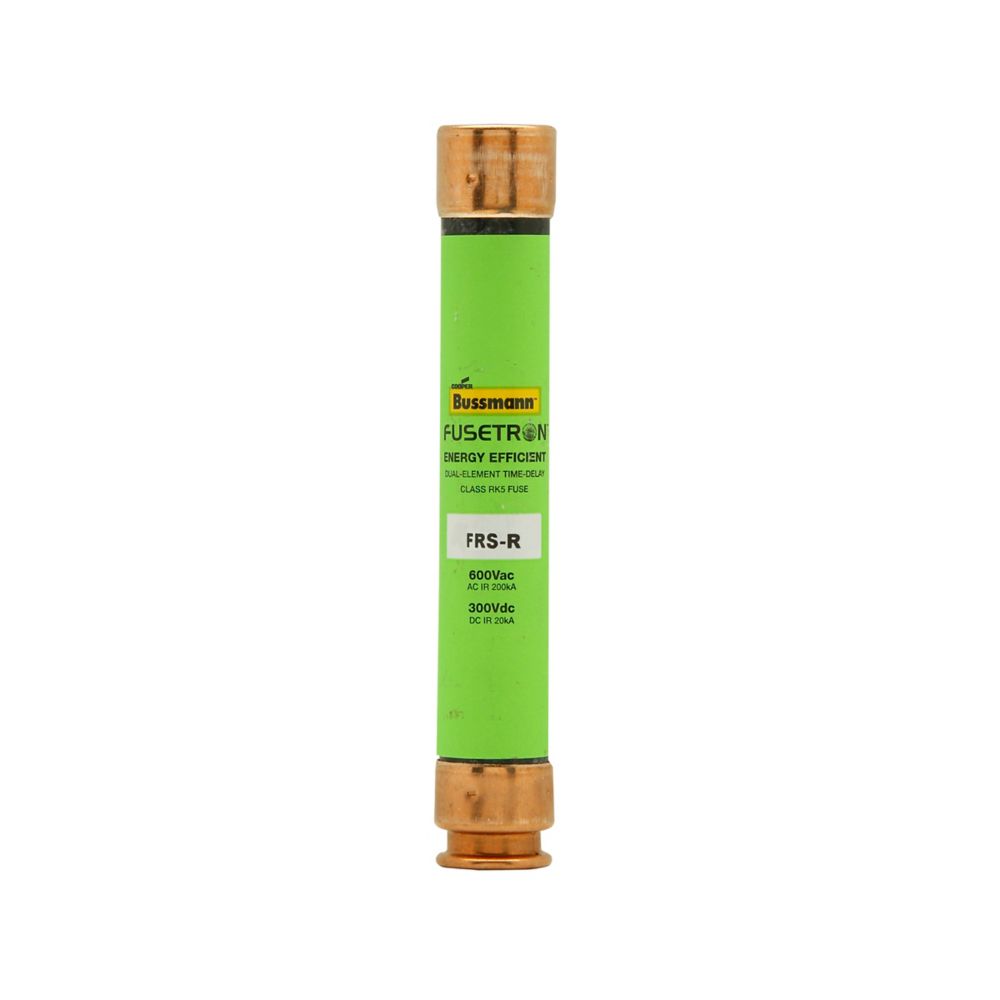

FRS-R-6-1/4 is a 6.25 amp, 600 volt AC Class RK5 time-delay fuse from Eaton Bussmann designed for branch circuit protection.This dual-element, time-delay fuse tolerates temporary inrush currents without nuisance blowing, making it ideal for motor and equipment startup protection. It features a cylindrical body with a 5 inch length and 0.81 inch diameter, has a 200kA interrupt rating, and is UL listed for 600 VAC and 300 VDC applications. The fuse is nonindicating and compatible with fuse blocks for visual blown fuse indication.
- Key Specifications
- Amperage: 6.25 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK5
- Time-Delay: Dual-element
- Interrupt Rating: 200kA at 600 VAC
- Poles: 1
- Mounting Type: Cartridge fuse
- Dimensions: 5 in length x 0.81 in diameter
- Nonindicating design
- UL Listed
Specifications
- Part Number: FRS-R-6-1/4
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 005171250824
- GTIN : 00051712508247
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.4
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
