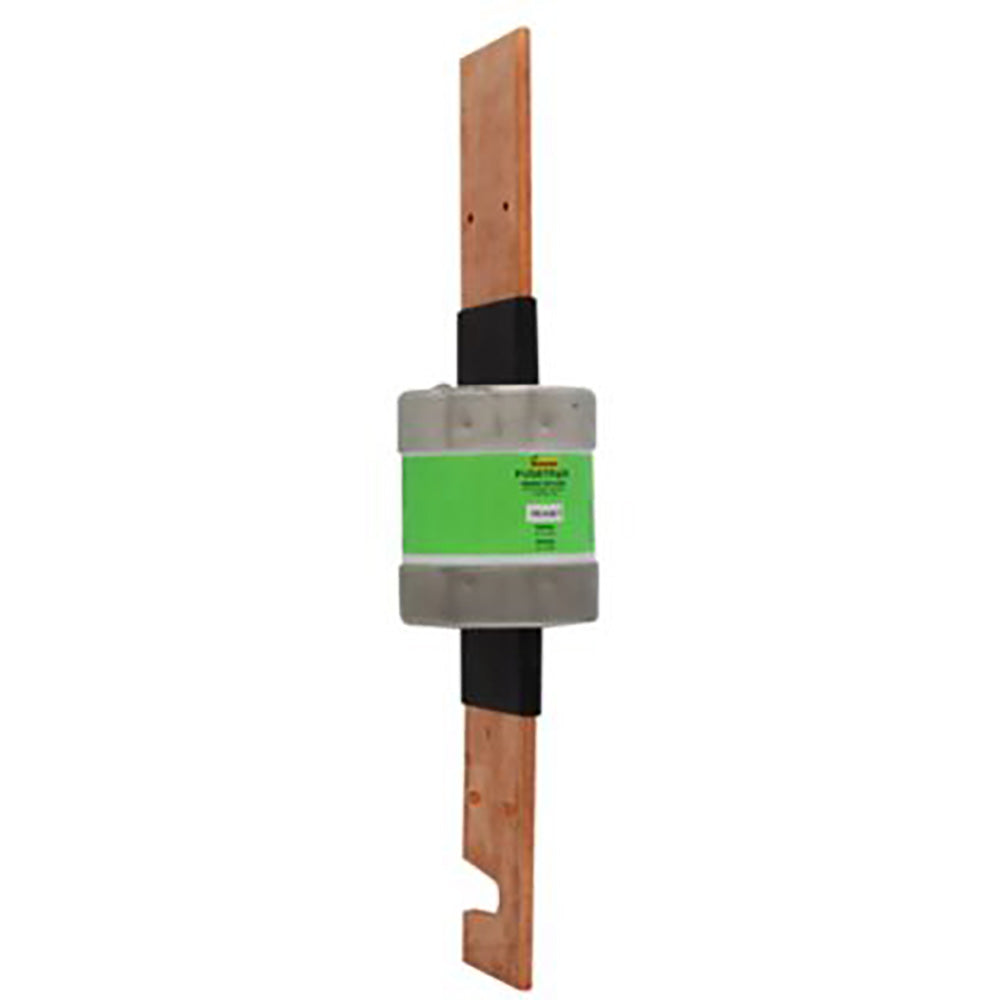

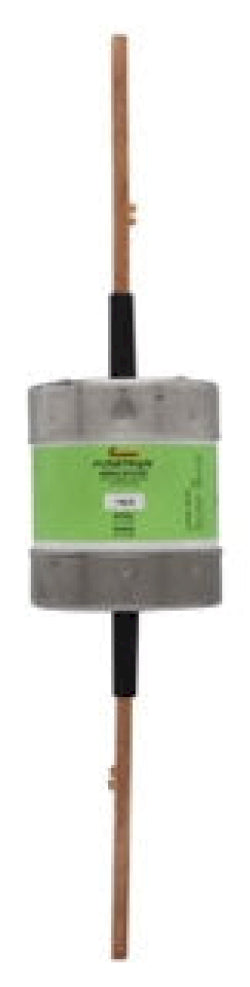

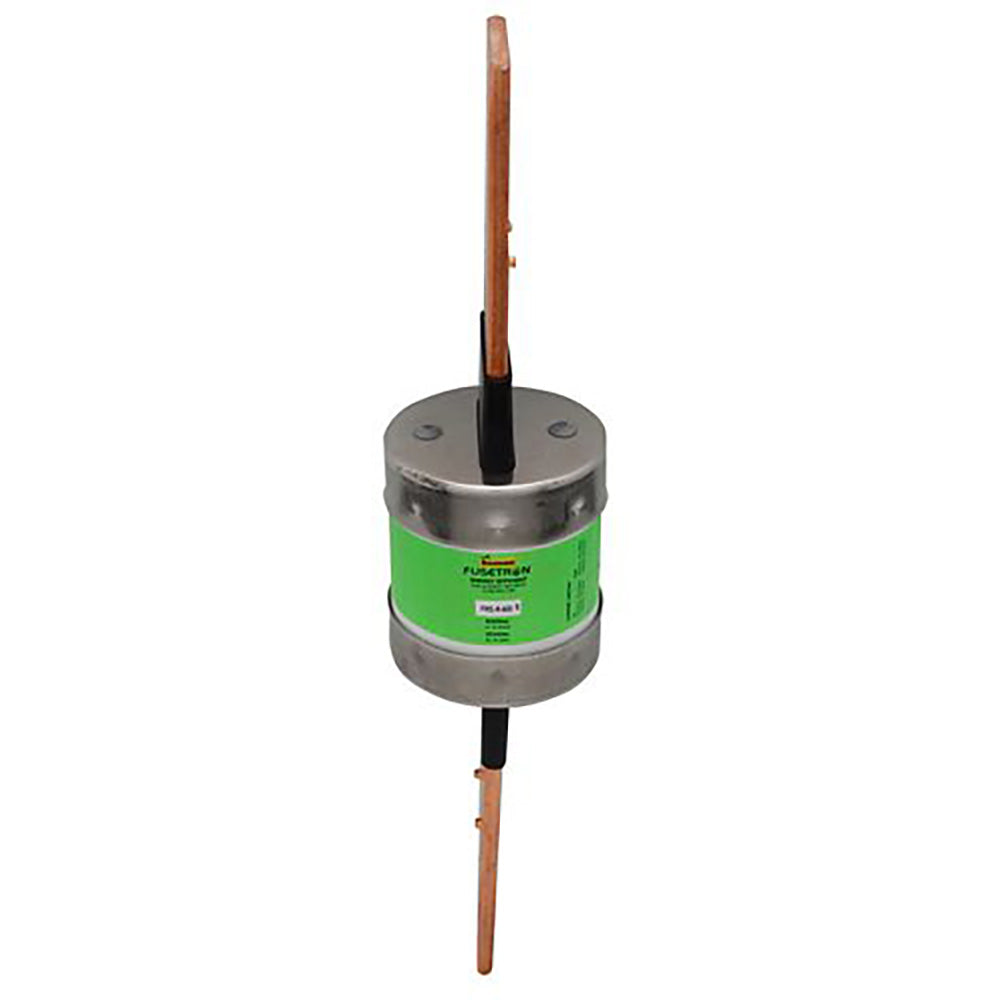

FRS-R-500 - Eaton Bussmann 500A 600V Class RK5 Dual Element Time-Delay Fuse

FRS-R-500

FRS-R-500 is a 500 Amp, 600 Volt AC Class RK5 dual element time-delay fuse designed for reliable circuit protection.FRS-R-500 features a 10 second time delay at 500% of rated current, current-limiting capability, and a high interrupting rating of 200,000 AIC at 600 VAC and 20,000 AIC at 300 VDC. It is UL Listed and CSA Certified for safety and performance.

Key Specifications
• Amperage: 500 A
• Voltage Rating: 600 VAC / 300 VDC
• Class: RK5
• Fuse Type: Dual Element, Time-Delay
• Interrupting Rating: 200,000 AIC at 600 VAC, 20,000 AIC at 300 VDC
• Physical Size: 2.88" x 13.38"
• Mounting Type: Blade End
• UL Listed, CSA Certified
• Response Time: 10 seconds at 500% rated current
• Current Limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-500
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 2.88
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508551
• GTIN : 00051712508551
• Country of Origin : Mexico
• Dimensions : 13.38 in x 3.13 in x 3.13 in (Length/Depth x Height x Width)
• Weight : 3.6
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
