Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-50

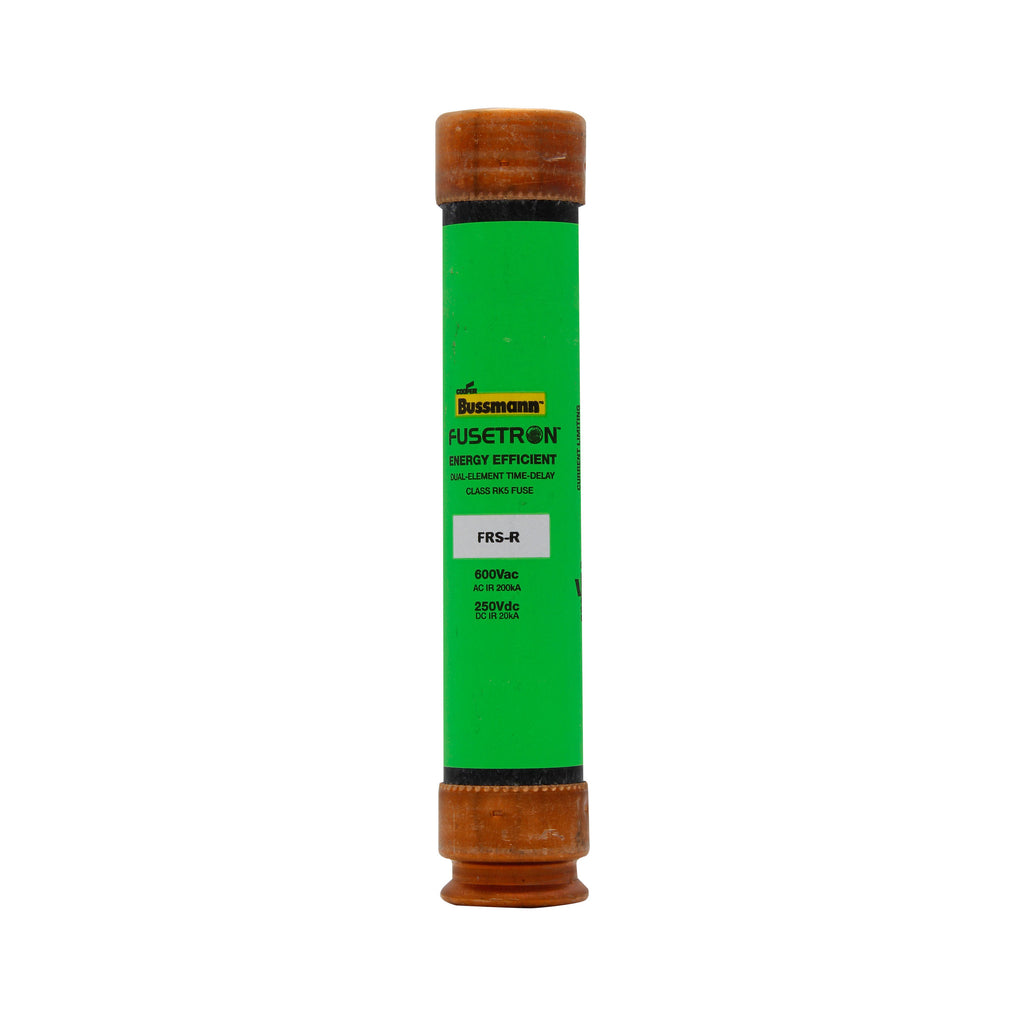

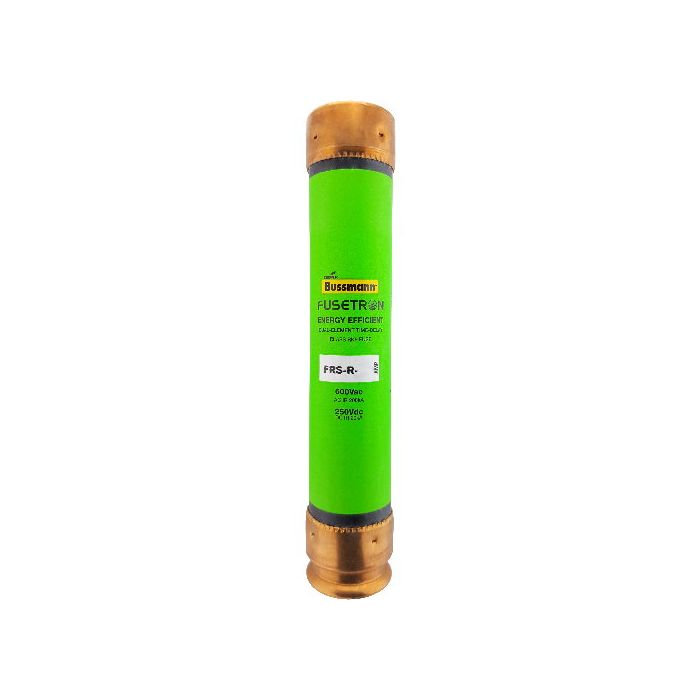

FRS-R-50 is a 50 Amp, 600 Volt AC Class RK5 fuse from Eaton Bussmann designed for reliable circuit protection.This dual-element, time-delay fuse features a current-limiting design with an interrupting rating of 200 kA at 600 Vac and 20 kA at 250 Vdc. It has a response time of 10 seconds at 500% overload and is CE marked for compliance. The fuse is non-indicating with ferrule end connections and measures approximately 5.5 inches in length and 1.84 inches in diameter.
- Key Specifications
- Amperage Rating: 50 A
- Voltage Rating: 600 Vac, 250 Vdc
- Interrupting Rating: 200 kA at 600 Vac, 20 kA at 250 Vdc
- Class: RK5
- Fuse Type: Dual Element, Time-Delay
- Connection Type: Ferrule end x ferrule end
- Response Time: 10 seconds at 500% overload
- Fuse Indicator: Non-indicating
- Compliance: CE Marked
- Physical Size: 1.84 in diameter x 5.5 in length
- Part Number: FRS-R-50
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
- UPC : 051712508384
- GTIN : 00051712508384
- Country of Origin : Mexico
- Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
- Weight : 0.3
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
