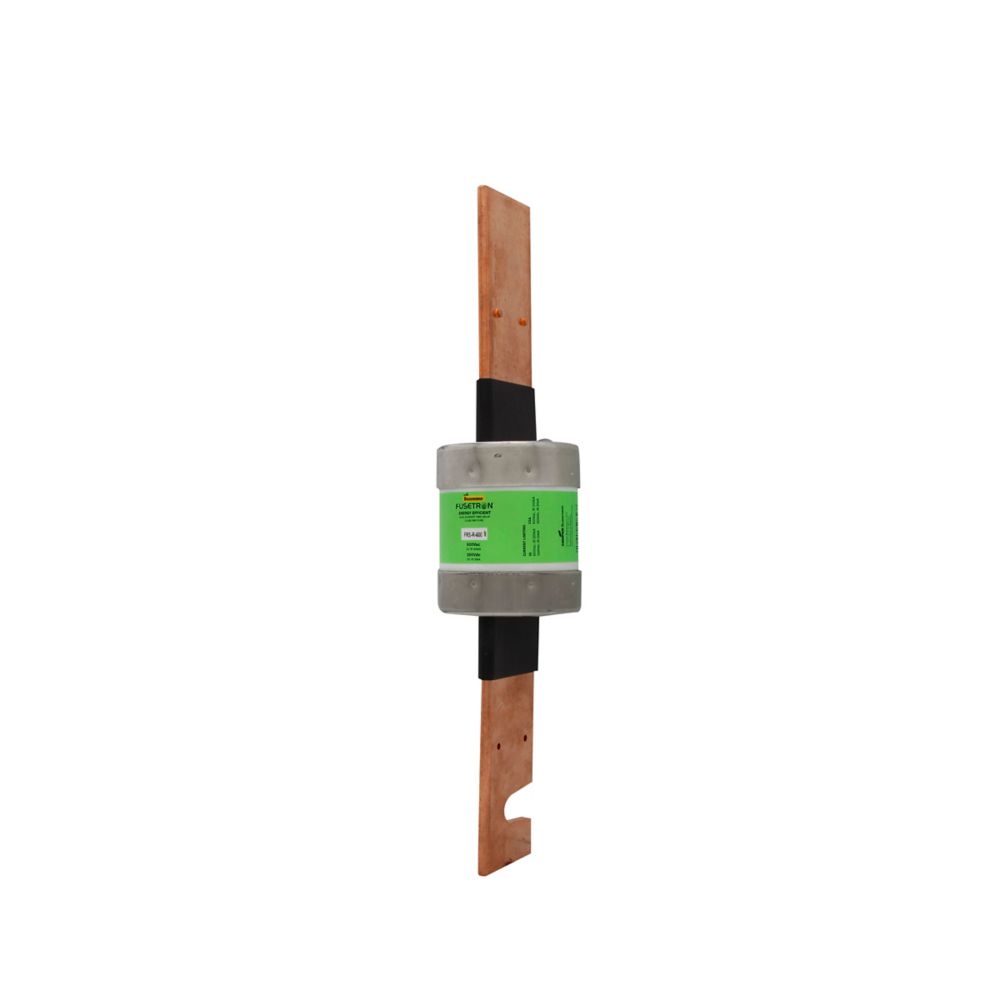

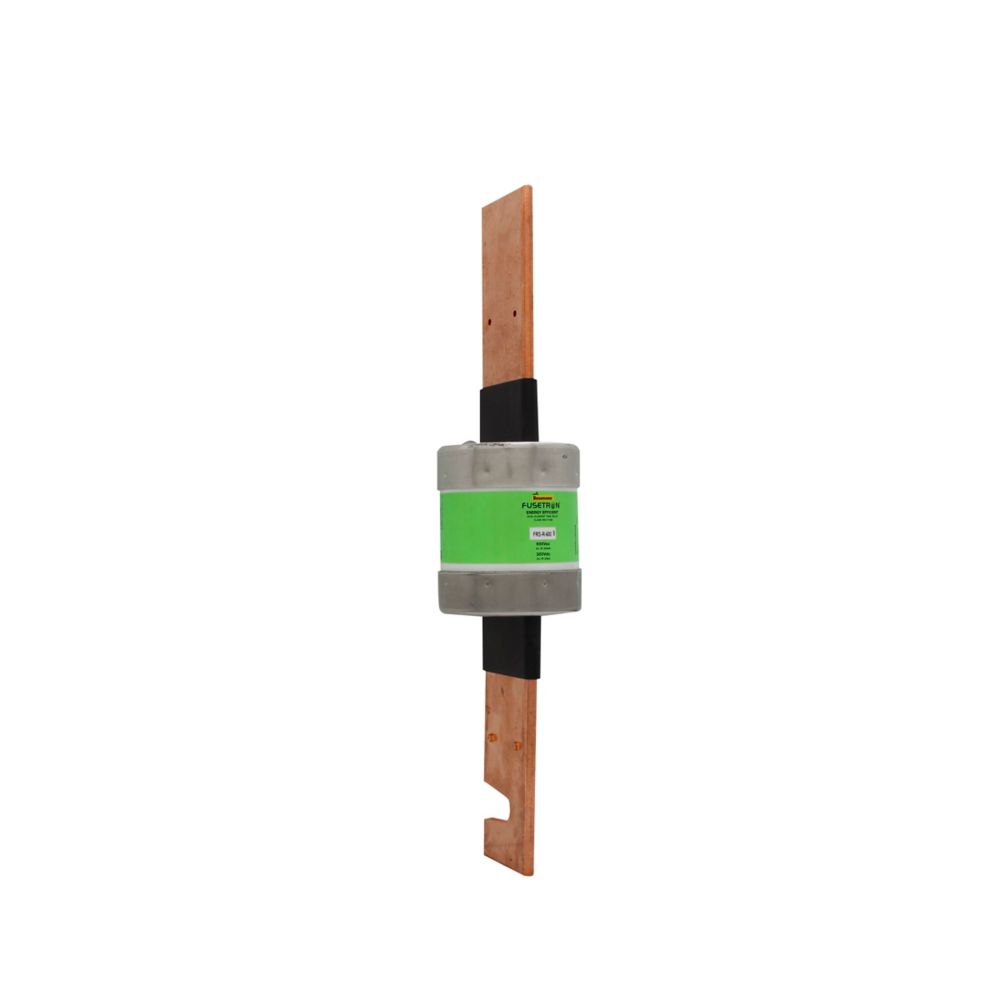

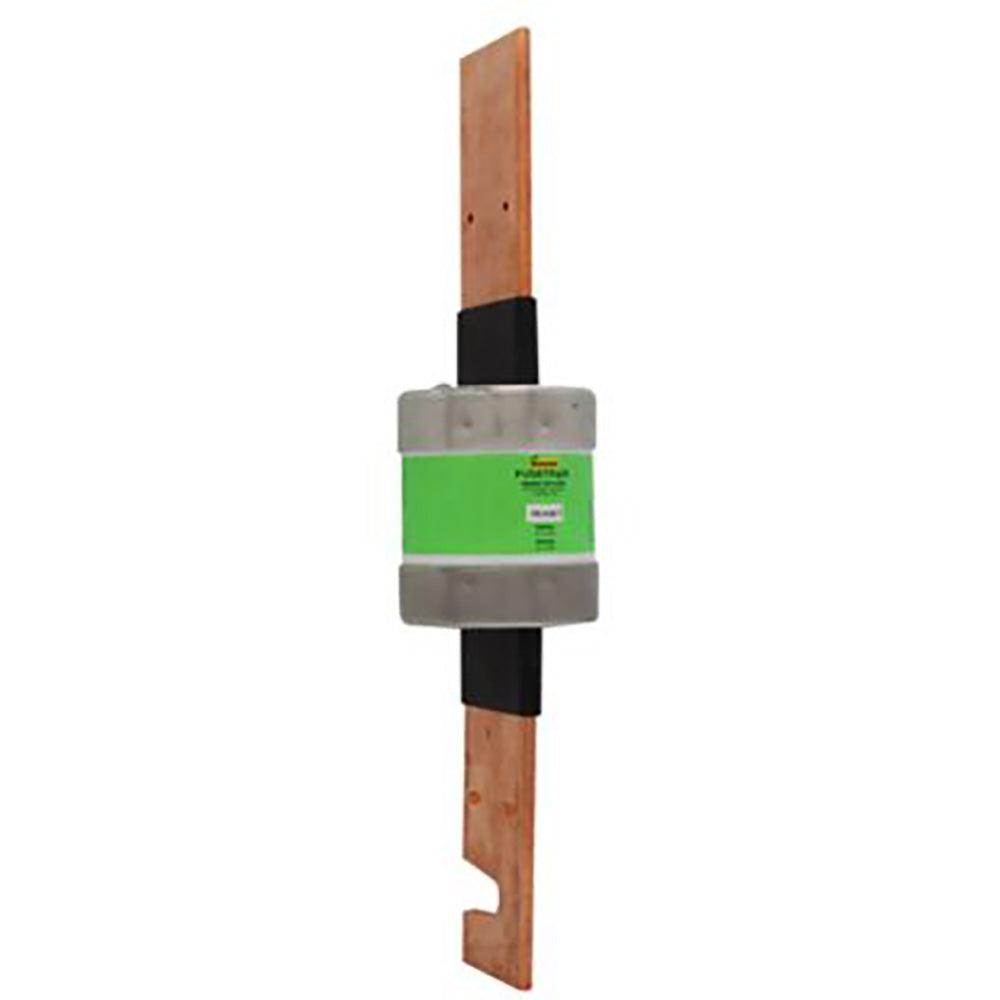

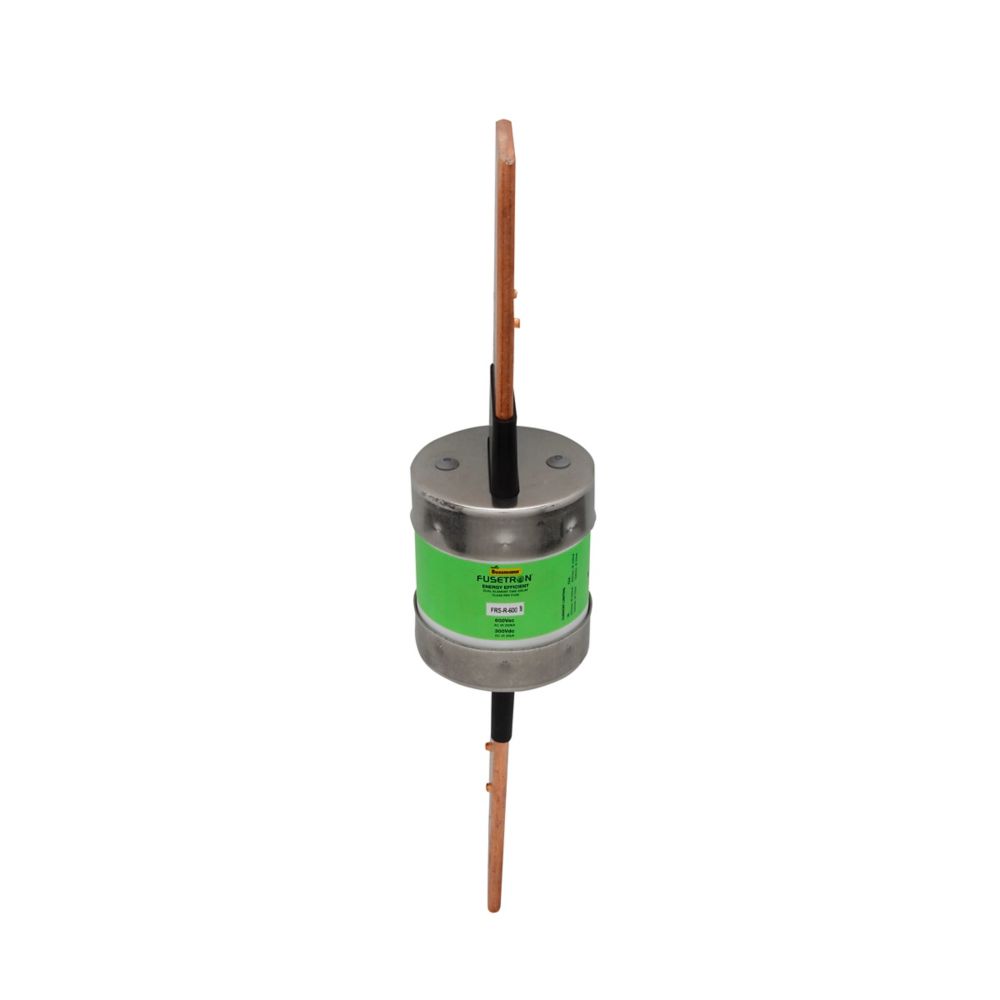

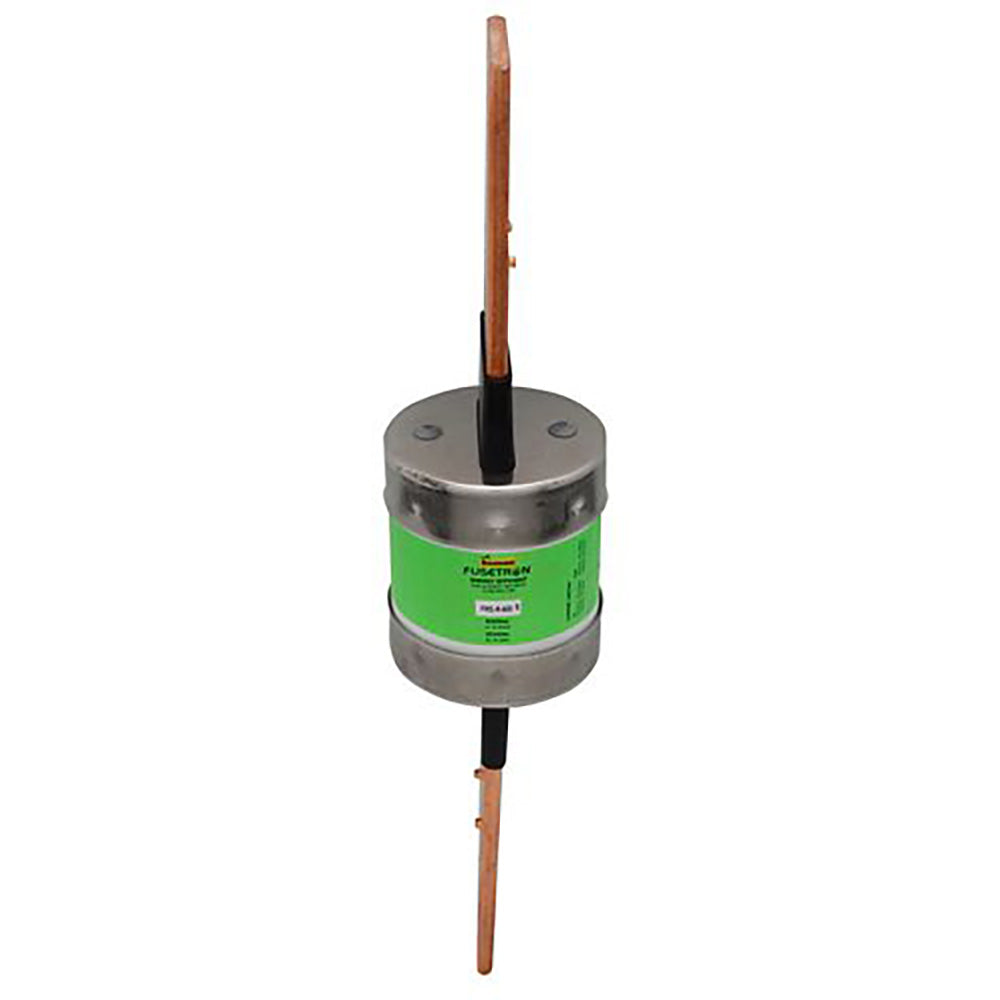

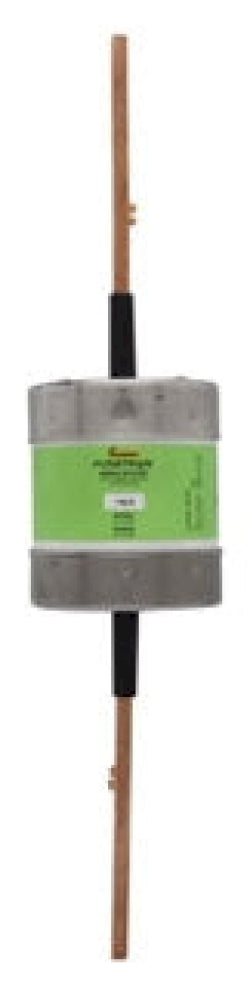

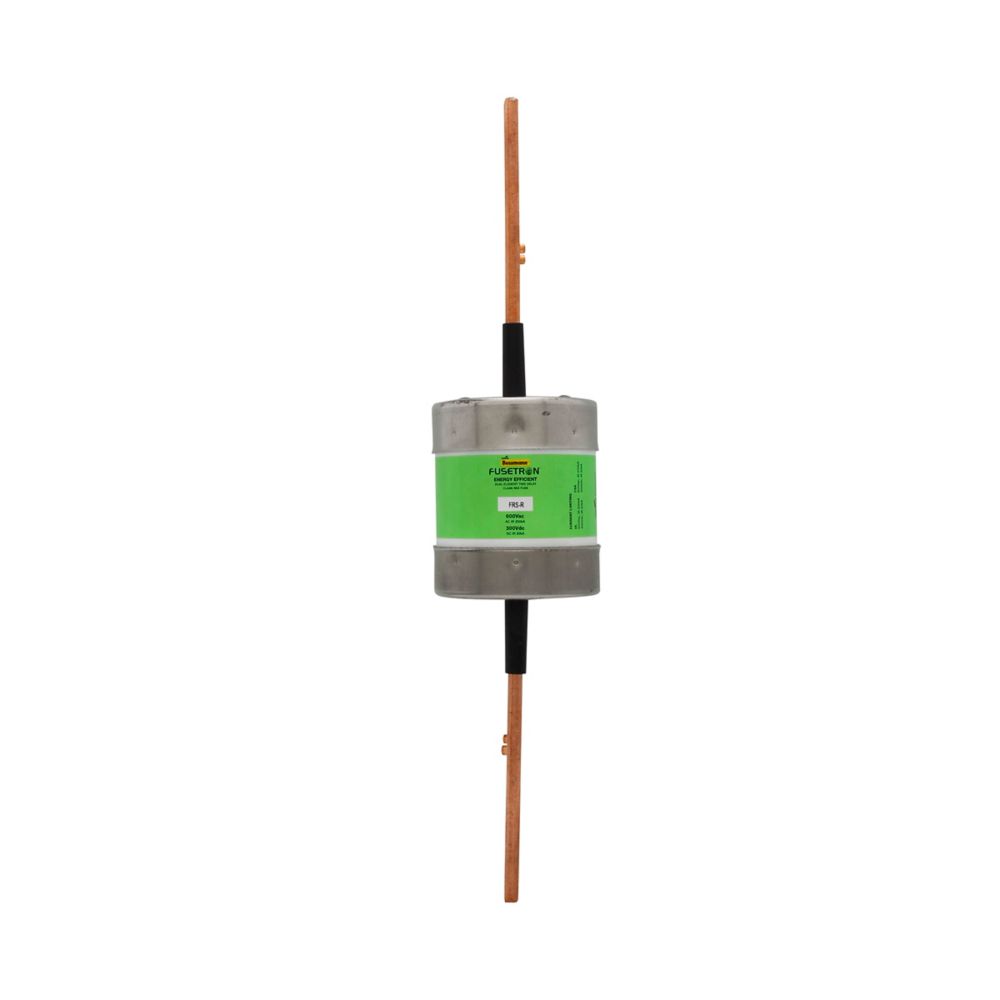

FRS-R-450 - Eaton Bussmann 450A 600V Dual Element Time-Delay Class RK5 Fuse

FRS-R-450

FRS-R-450 is a 450 amp, 600 volt dual element time-delay fuse from Eaton Bussmann series designed for reliable circuit protection.This Class RK5 fuse features a current-limiting design with a 10 second delay at 500% overload, suitable for motor overload, ground fault, and short-circuit protection. It has a blade end x blade end connection, is non-indicating, and rated for 20 kAIC interrupting at 300 Vdc and 200 kAIC at 600 Vac. The fuse is CE marked and UL listed, with CSA certification.

• Amperage Rating: 450 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupting Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Class: RK5
• Type: Dual Element, Time-Delay
• Connection: Blade end x blade end
• Response Time: 10 seconds at 500% overload
• Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked
• Physical Size: Approximately 2.88" diameter x 13.38" length
• Weight: Approx. 3 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-450
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 450
• AIC rating : 200kA@600V
• Diameter : 2.88
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508544
• GTIN : 00051712508544
• Country of Origin : Mexico
• Dimensions : 13.38 in x 3.13 in x 3.13 in (Length/Depth x Height x Width)
• Weight : 0.001
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
