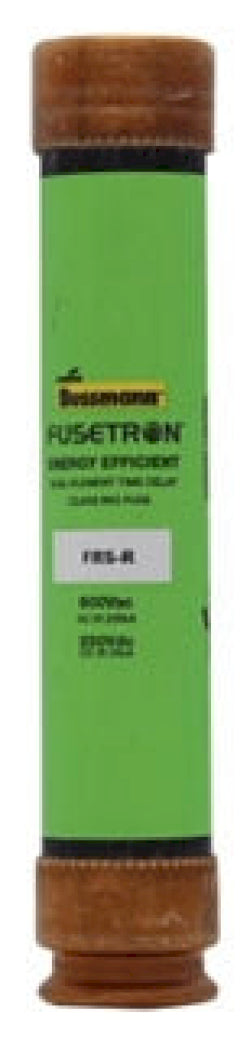

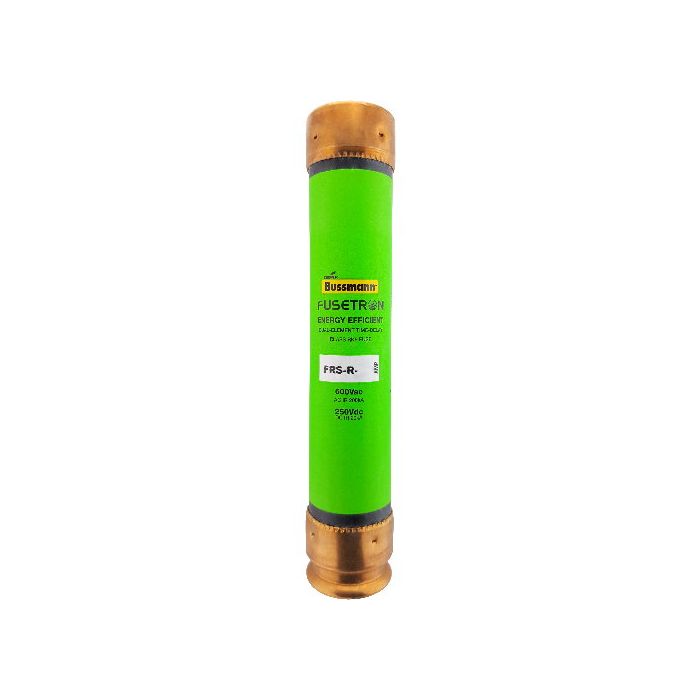

FRS-R-45 - Eaton Bussmann 45A 600V Dual Element Class RK5 Time Delay Fuse

FRS-R-45

FRS-R-45 is a 45 ampere, 600 volt dual element time delay fuse from Eaton Bussmann's FRS-R series designed for reliable circuit protection.FRS-R-45 features a Class RK5 rating with a 10 second time delay at 500% overload, ferrule end x ferrule end connections, and high interrupting ratings of 200 kA at 600 Vac and 20 kA at 250 Vdc. It is non-indicating and CE marked, suitable for standard mounting in fuse holders or clips.

Key Specifications
• Amperage: 45 A
• Voltage Rating: 600 Vac / 250 Vdc
• Interrupt Rating: 200 kA at 600 Vac, 20 kA at 250 Vdc
• Class: RK5
• Fuse Type: Dual Element, Time Delay
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% rated current
• Poles: Dual
• Certifications: CE Marked
• Non-indicating fuse

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-45
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 45
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508377
• GTIN : 00051712508377
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.293
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
