Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

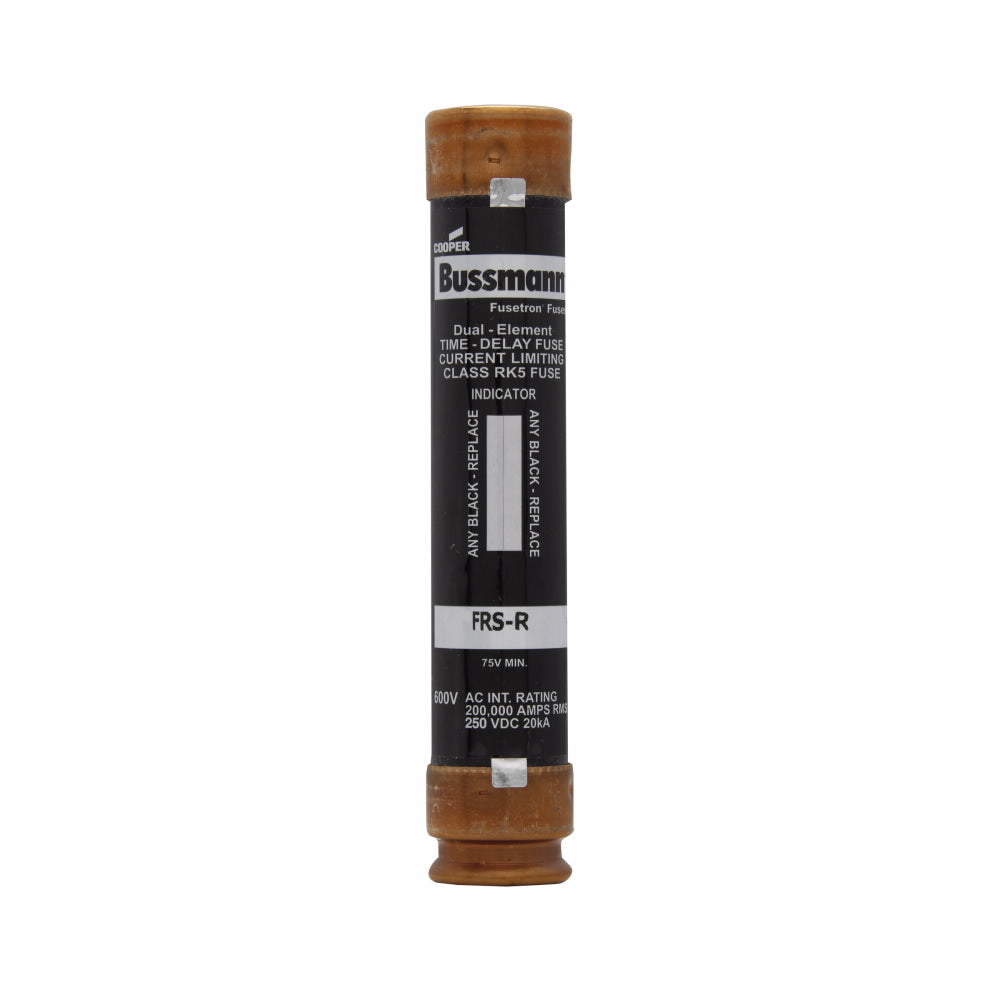

FRS-R-40ID
FRS-R-40ID is an Eaton Bussmann series Fusetron 600 V Class RK5 dual-element, current-limiting, time-delay fuse with open fuse indication. This advanced protection fuse delivers energy-efficient performance for motor and transformer circuits with superior time-delay characteristics. FRS-R-40ID features a dual-element design that provides the best time-delay performance, allowing closer sizing and superior protection while enabling the use of smaller fuses and less costly switches. The ferrule-end construction and Class RK5 rating make it suitable for a broad range of branch circuit and motor protection applications.
- Current Rating: 40 A
- Voltage Rating: 600 VAC, 250 VDC
- Fuse Type: Time-Delay (Slow Blow)
- Class: RK5
- Body Style: Cartridge Fuses with Ferrule Ends
- Interrupting Rating: 200 kA at 600 VAC
- Time-Delay: 10 seconds minimum at 500% of rated current
- Features: Dual-element, current-limiting, open fuse indication
- Length: 5.5 inches
- Diameter: 1.06 inches
Specifications
- Part Number: FRS-R-40ID
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 40
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712204620
- GTIN : 00051712204620
- Country of Origin : United States
- Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
- Weight : 0.25
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
