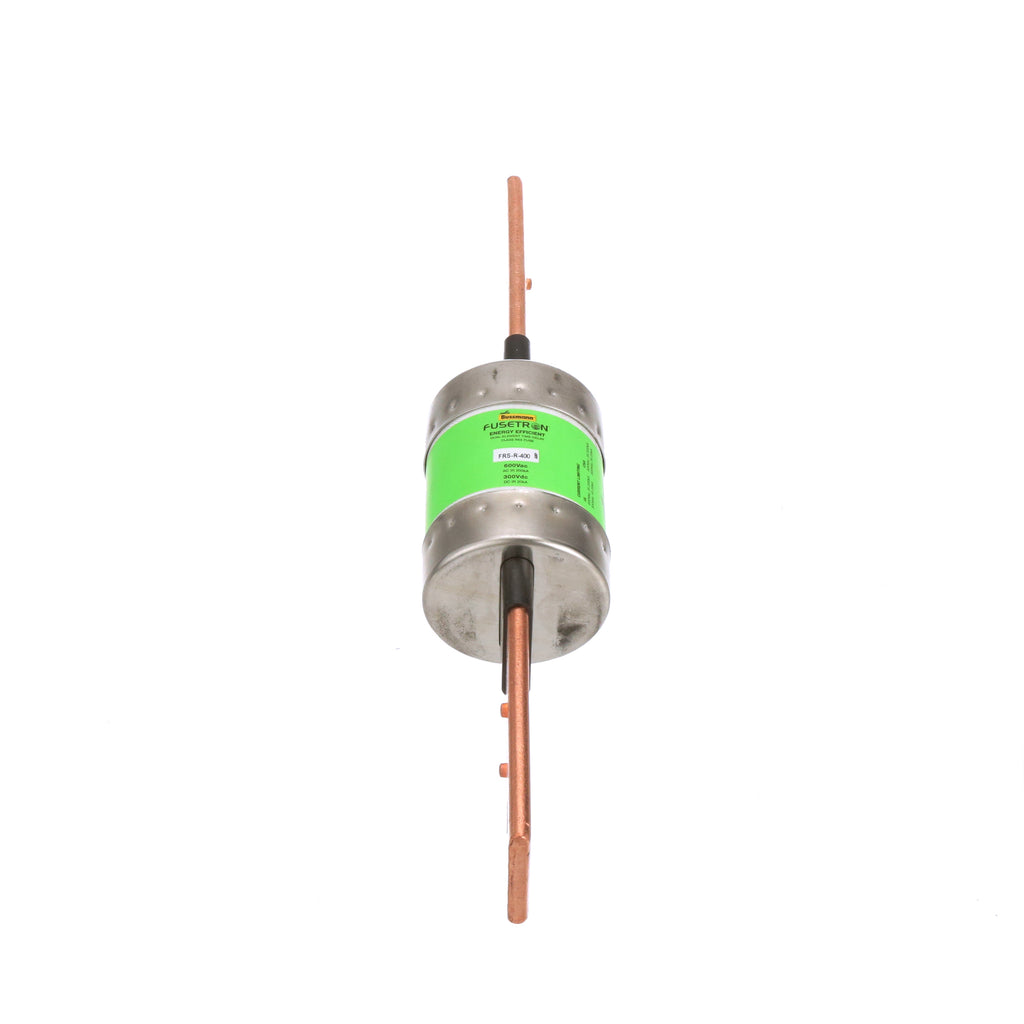

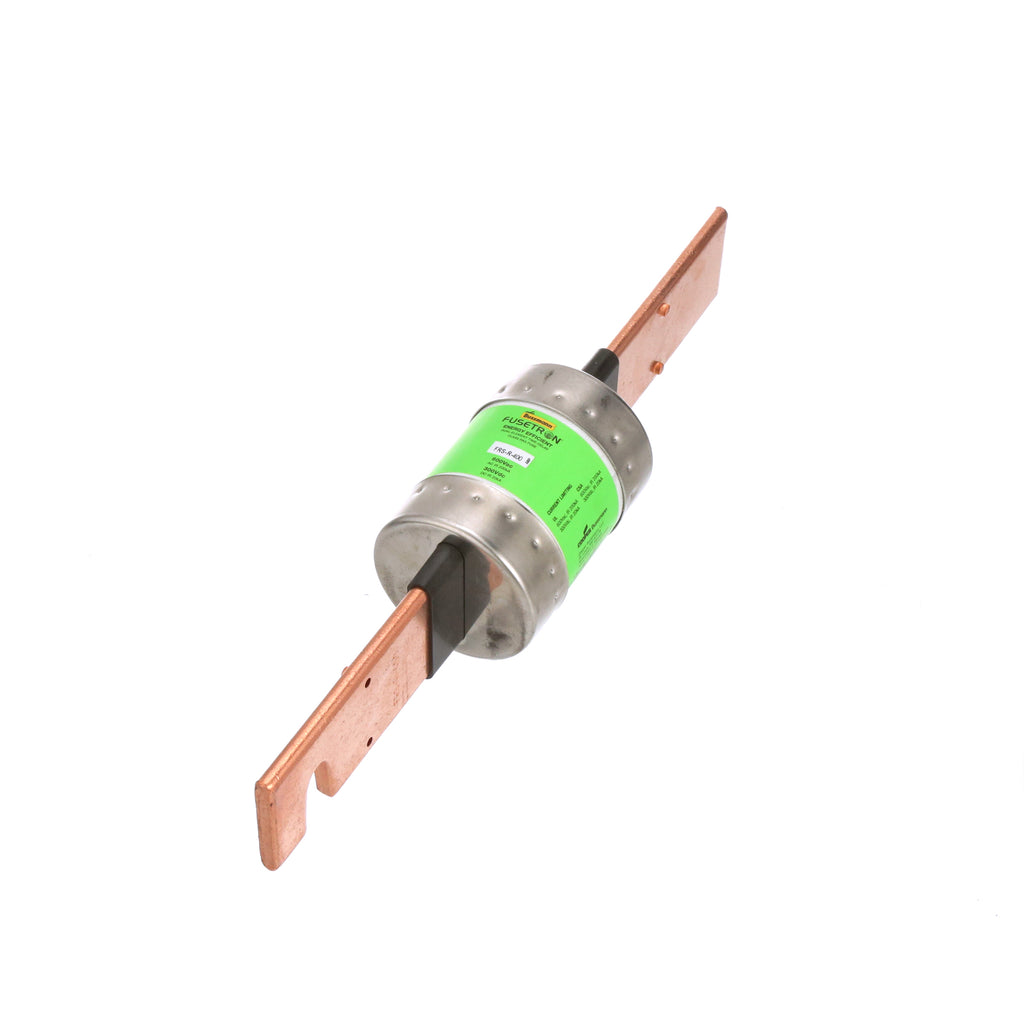

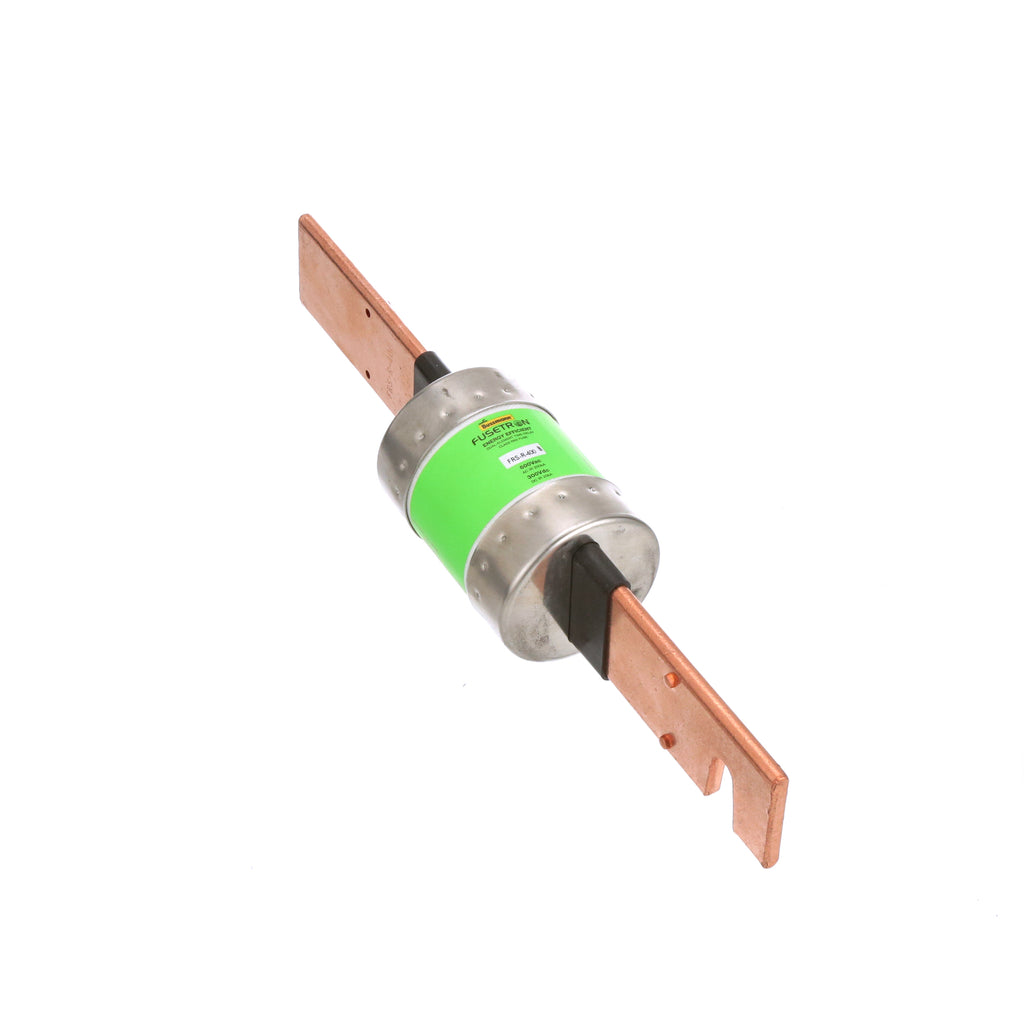

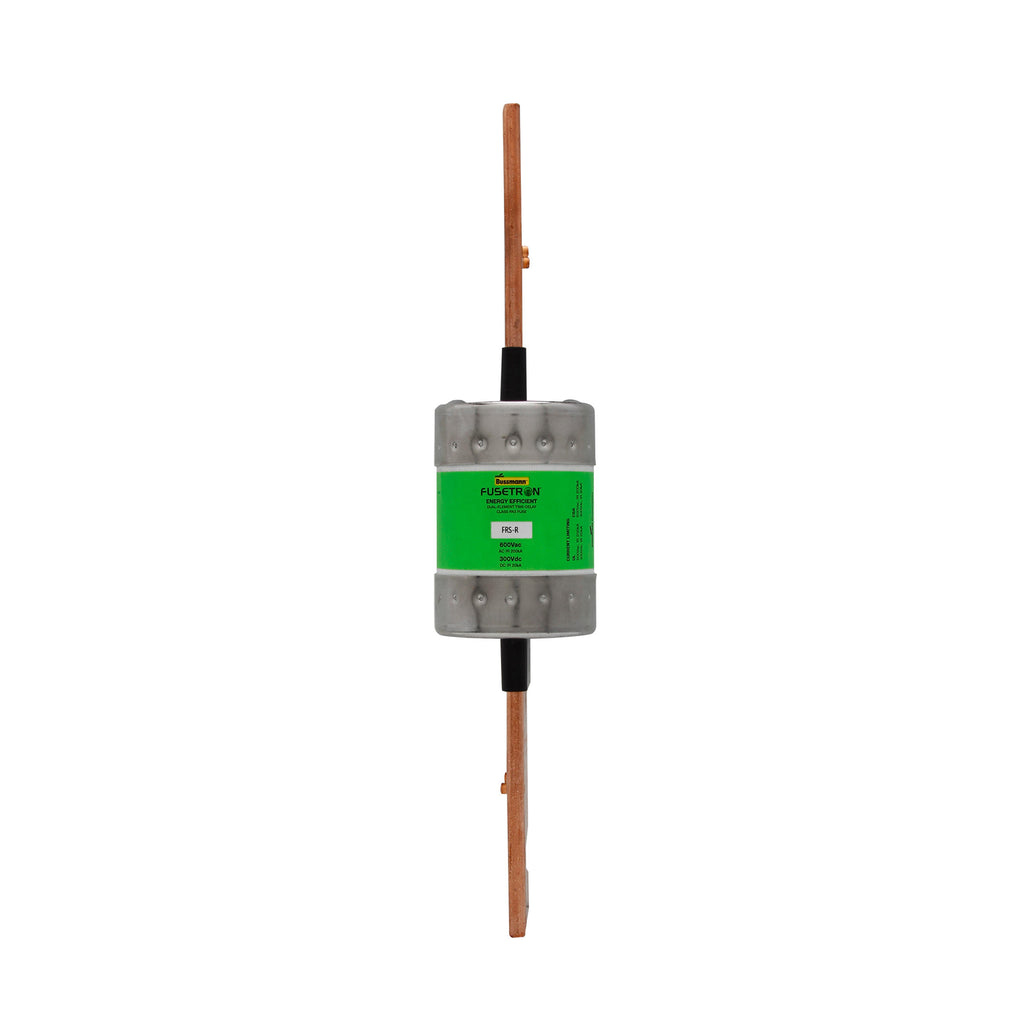

FRS-R-400 - Eaton Bussmann 400A 600V Class RK5 Time-Delay Dual Element Fuse

FRS-R-400

FRS-R-400 is a 400 ampere, 600 volt Class RK5 time-delay dual element fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a current limiting design with a 10 second time-delay at 500% overload, blade end x blade end connection, and a non-indicating cartridge body. It has an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, suitable for both AC and DC applications. The fuse is CE marked and complies with industry standards for safety and performance.

Key Specifications
• Amperage Rating: 400 A
• Voltage Rating: 600 Vac / 300 Vdc
• Class: RK5
• Fuse Type: Time-Delay, Dual Element
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Connection: Blade end x blade end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Body Type: Cartridge
• Certifications: CE Marked
• Dimensions: 5.5 in length, 1.06 in diameter
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-400
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 400
• AIC rating : 200kA@600V
• Diameter : 2.34
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508537
• GTIN : 00051712508537
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.59 in x 2.59 in (Length/Depth x Height x Width)
• Weight : 0.001 lb
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
