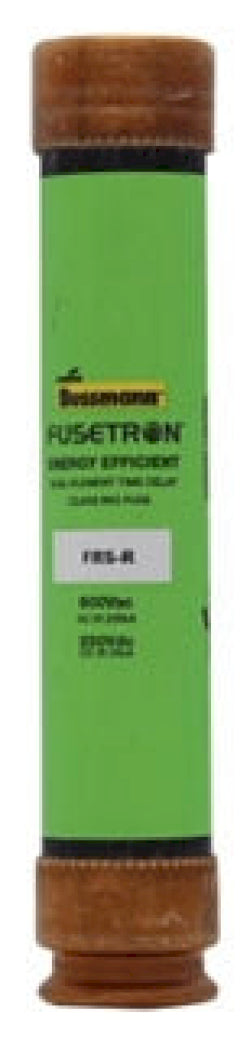

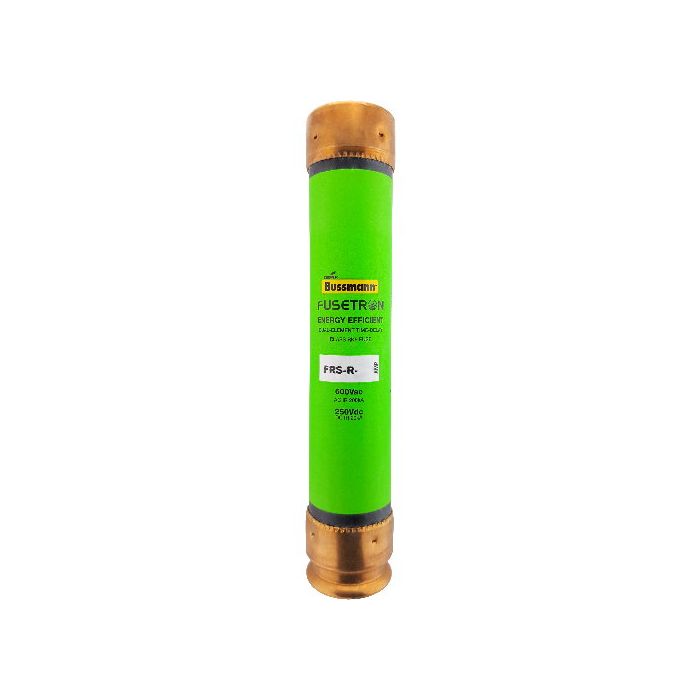

FRS-R-40 - Eaton Bussmann 40A 600Vac/250Vdc Class RK5 Dual-Element Time-Delay Fuse

FRS-R-40

FRS-R-40 is a 40 amp, dual-element, time-delay fuse from Eaton Bussmann series designed for reliable circuit protection.This Class RK5 fuse features a non-indicating ferrule end x ferrule end connection, rated for 600 Vac and 250 Vdc operation with a high interrupt rating of 200 kA at 600 Vac and 20 kA at 250 Vdc. It provides a 10 second delay at 500% overload, making it suitable for protecting motors and other inductive loads.

Key Specifications
• Amperage: 40 A
• Voltage Rating: 600 Vac / 250 Vdc
• Interrupt Rating: 200 kA at 600 Vac, 20 kA at 250 Vdc
• Class: RK5
• Fuse Type: Dual-element, time-delay
• Connection: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Response Time: 10 seconds at 500% overload
• Compliance: CE Marked
• Size: 1.06 inch diameter x 5.5 inch length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-40
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 40
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508360
• GTIN : 00051712508360
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.295
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
