FRS-R-4 - Eaton Bussmann 4A 600V Dual Element Time-Delay Class RK5 Fuse

FRS-R-4

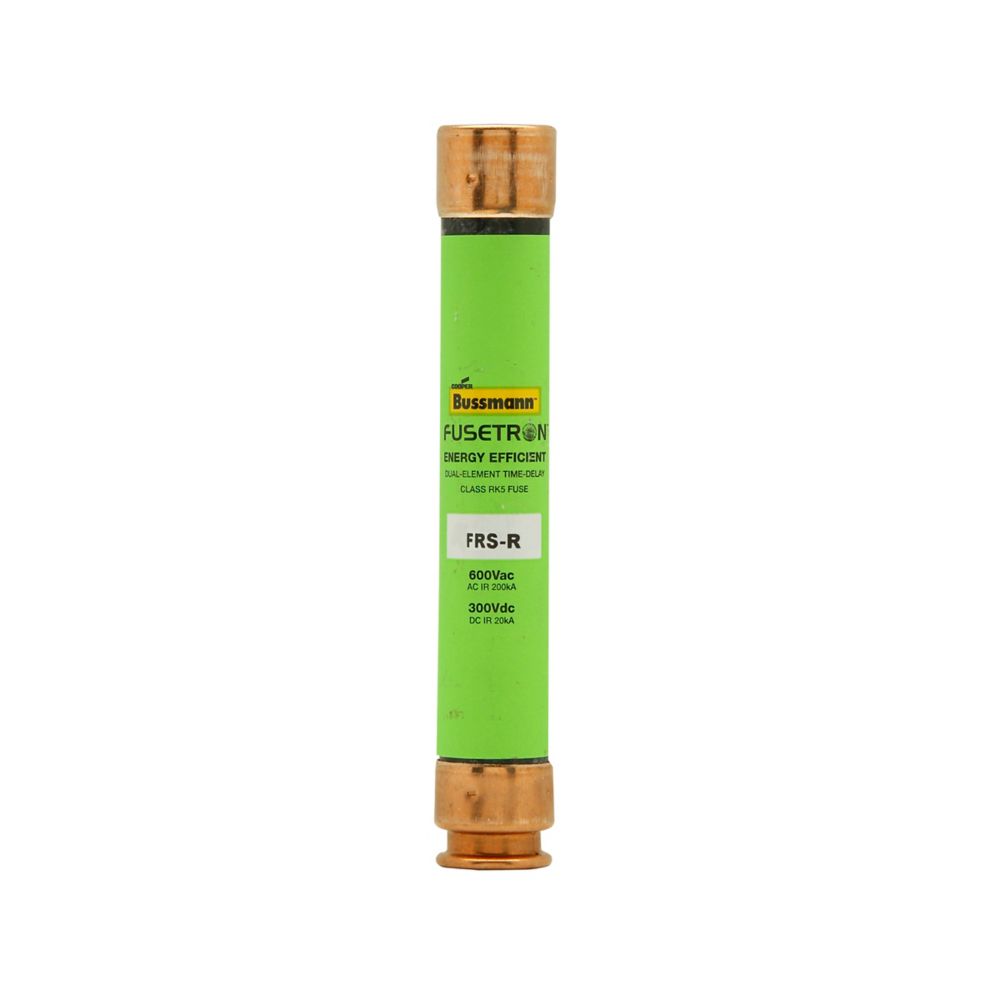

FRS-R-4 is a 4 amp, 600 volt AC dual element time-delay fuse from Eaton Bussmann's Class RK5 series.This Eaton Bussmann FRS-R-4 fuse features a 10 second time-delay at 500% overload, current limiting dual-element design, and a high interrupt rating of 200 kA at 600 Vac and 20 kA at 300 Vdc. It is non-indicating with ferrule end connections and CE marked for compliance. The fuse measures approximately 0.81 inches in diameter by 5 inches in length and is UL Listed and CSA Certified for reliable circuit protection.

Key Specifications
• Amperage Rating: 4 A
• Voltage Rating: 600 Vac / 300 Vdc
• Interrupt Rating: 200 kAIC at 600 Vac, 20 kAIC at 300 Vdc
• Fuse Class: RK5
• Time-Delay: 10 seconds at 500% overload
• Fuse Type: Dual Element, Current Limiting
• Connection Type: Ferrule end x ferrule end
• Fuse Indicator: Non-indicating
• Certifications: UL Listed, CSA Certified, CE Marked
• Dimensions: 0.81" diameter x 5" length
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: FRS-R-4
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 4
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1



Product Data

• UPC : 051712508209
• GTIN : 00051712508209
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.13
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
