FRS-R-4/10 - Eaton Bussmann 0.4 Amp 600V Class RK5 Time-Delay Fuse

Save $1,229.96
SKU: FRS-R-4/10-New
Condition: New
Price:
$11.94 $1,241.90
Stock:
10 In stock, ready to be shipped

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

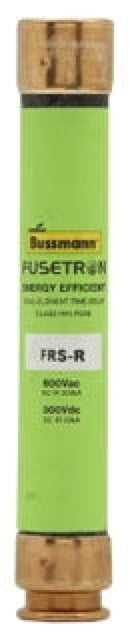

Cooper Bussmann FRS-R-4/10 Low Voltage Fusetron 600V 4A Fuse - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only

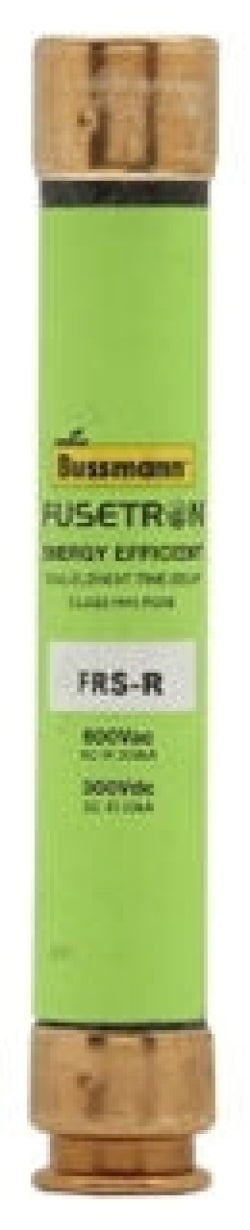

Cooper Bussmann FRS-R-4/10 Low Voltage Fusetron 600V 4A Fuse - Essential Electric Supply

Description

FRS-R-4/10


FRS-R-4/10 is an Eaton Bussmann Class RK5 time-delay fuse designed for reliable circuit protection.This dual-element, current-limiting fuse provides 10 seconds minimum time delay at 500% rated current, suitable for protecting motors and circuits with temporary overloads. Rated for 0.4 amps and 600 VAC/300 VDC, it features a 200kA interrupting rating and a non-indicating design. The fuse measures 0.81 inches in diameter and 5 inches in length, compatible with standard fuse blocks.
    Key Specifications
    • Amperage: 0.4 A
    • Voltage Rating: 600 VAC / 300 VDC
    • Fuse Class: RK5
    • Time Delay: 10 seconds minimum at 500% rated current
    • Interrupting Rating: 200,000 A RMS Symmetrical
    • Poles: 1
    • Fuse Type: Dual Element, Current Limiting
    • Mounting: Standard Fuse Block Compatible
    • Length: 5 inches
    • Diameter: 0.81 inches
    • Non-Indicating Fuse
    • Certifications: UL Listed
    At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

    Specifications

    • Part Number: FRS-R-4/10
    • Manufacturer : Eaton
    • Brand : Bussmann
    • Category : Fuse
    • Item Subcategory : Low Voltage Fuse
    • Family : Fusetron
    • Type : FRS-R
    • Voltage : 600
    • Amperage : 4
    • AIC rating : 200kA@600V
    • Diameter : 0.81
    • Class Rating : RK5
    • Barrels : 1

    Product Data

    • UPC : 051712508049
    • GTIN : 00051712508049
    • Country of Origin : Mexico
    • Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
    • Weight : 0.145
    • Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
