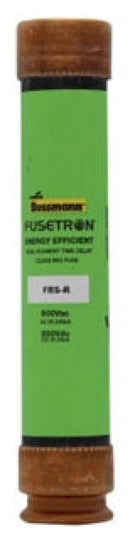

FRS-R-35 - Eaton Bussmann 35A 600V Class RK5 Dual Element Time Delay Fuse, Ferrule End, Non-Indicating, 200kA Interrupt, Fusetron Series

FRS-R-35

FRS-R-35 is a dual-element, time-delay fuse from Eaton Bussmann, designed for reliable branch circuit protection in demanding electrical applications.

This Class RK5 fuse features a 35A rating, 600V AC/250V DC voltage, and a 10-second time delay at 500% of rated current. It offers high interrupting capacity (200kA at 600V AC, 20kA at 250V DC), current-limiting performance, and a non-indicating, ferrule-end design for secure mounting in standard fuse holders. The FRS-R-35 is part of the proven Fusetron series, known for robust construction and consistent performance in industrial and commercial settings.

Key Specifications
• Amperage: 35A
• Voltage: 600V AC, 250V DC
• Poles: Not applicable (fuse)
• Mounting Type: Ferrule end x ferrule end, holder mount
• Interrupt Rating: 200,000A (600V AC), 20,000A (250V DC)
• Series/Frame: Fusetron FRS-R, Class RK5
• Trip Unit: Dual element, time delay (10 sec at 500%)
• Certifications: UL 248-12, CSA, CE
• Body Size: 5.5 in L x 1.06 in D
• Non-indicating, current limiting, rejection type
• Packaging: Standard
• Compliance: RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-35
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 35
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508353
• GTIN : 00051712508353
• Country of Origin : Mexico
• Dimensions : 5.5 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.3
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
