Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
FRS-R-3/10

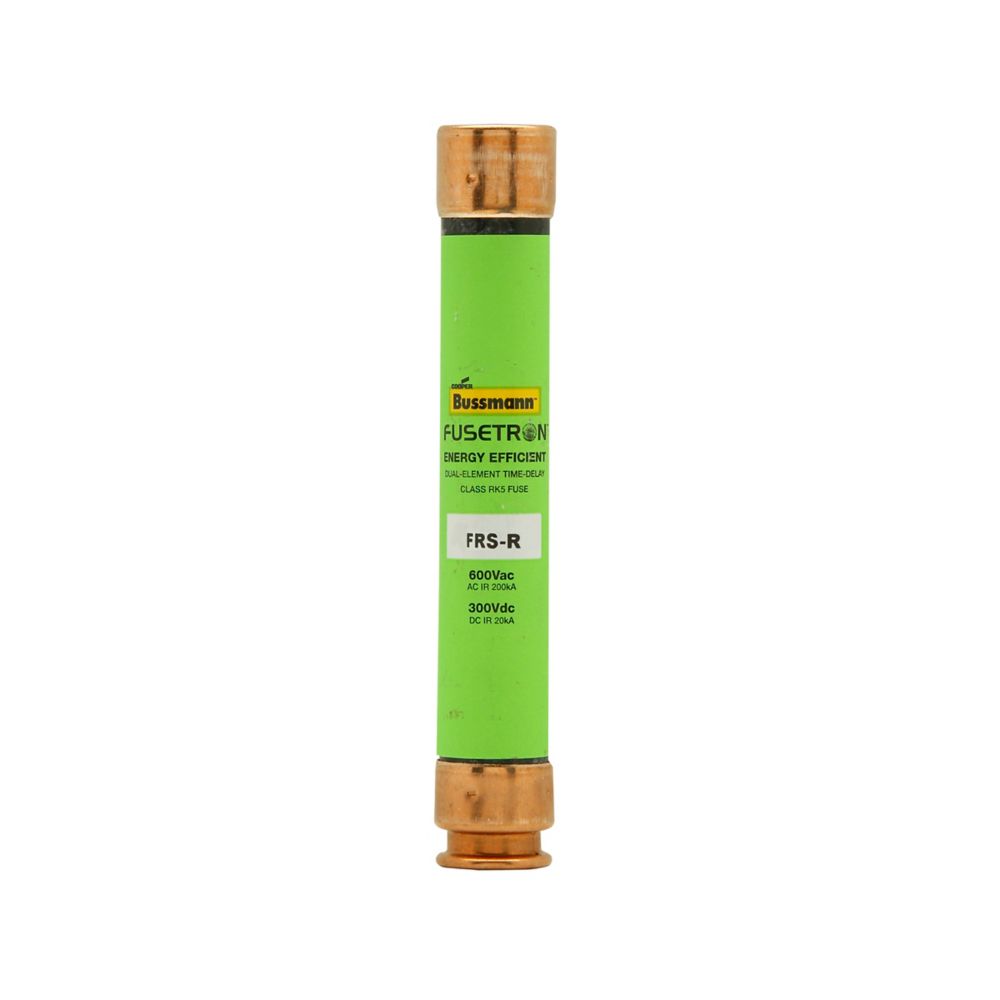

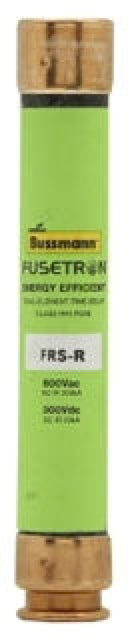

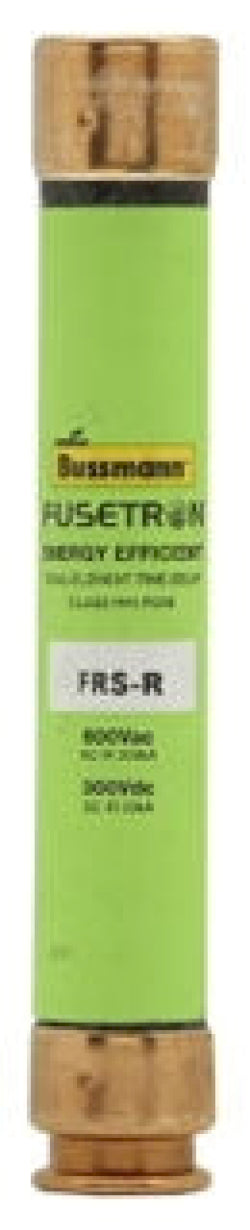

FRS-R-3/10 is an Eaton Bussmann Class RK5 dual-element, time-delay fuse rated for 0.3 amps and 600 Vac operation.
This fuse features current-limiting protection with a 10-second time delay at 500% overload, designed for reliable circuit protection in low voltage applications. It has a ferrule end-to-end mounting style and a high interrupt rating of 200 kA at 600 Vac and 20 kA at 300 Vdc, ensuring safe interruption of fault currents. The fuse is non-indicating and UL listed for safety and performance compliance.
- Key Specifications
- Amperage: 0.3 A
- Voltage Rating: 600 Vac / 300 Vdc
- Poles: 1-Pole
- Mounting Type: Ferrule end x ferrule end
- Interrupt Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
- Fuse Series: Bussmann Fusetron FRS-R
- Fuse Type: Class RK5, Dual Element, Time-Delay
- Time Delay: 10 seconds at 500% rated current
- Indication: Non-indicating
- Certifications: UL Listed
- Part Number: FRS-R-3/10
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Fusetron
- Type : FRS-R
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK5
- Barrels : 1
- UPC : 051712508032
- GTIN : 00051712508032
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.152
