Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

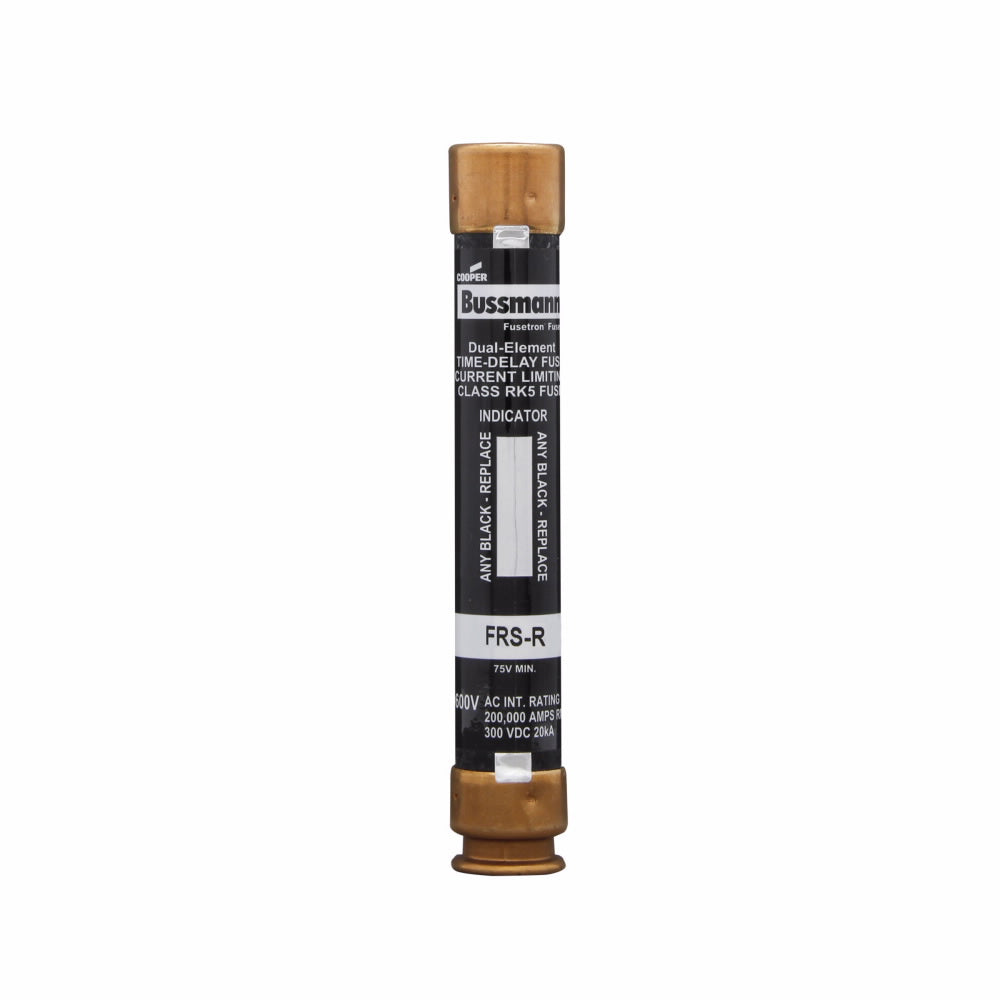

FRS-R-25ID
FRS-R-25ID is a 25A Class RK5 dual-element time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This cartridge fuse features a 600VAC voltage rating and is current-limiting for enhanced safety and performance. The FRS-R-25ID fuse is part of the Eaton Bussmann Fusetron series and is engineered for use in fuse holders that require ferrule end connections. It provides a minimum 10-second time delay at 500% rated current, making it suitable for motor and transformer protection where inrush currents are present.
- Amperage Rating: 25A
- Voltage Rating AC: 600VAC
- Fuse Type: Cartridge
- Mounting Type: Requires Holder
- Interrupt Rating: 200,000A at 600VAC
- Series: Fusetron
- Class: RK5
- Element Type: Dual-Element, Time-Delay
- Connection: Ferrule end x ferrule end
- Current-Limiting: Yes
- Compliance: CE Marked
Specifications
- Part Number: FRS-R-25ID
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 25
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 05171220459
- GTIN : 00051712204590
- Country of Origin : Mexico
- Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
- Weight : 0.15
- Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
