FRS-R-250 - Eaton Bussmann 250A 600V Class RK5 Time Delay Dual Element Fuse

FRS-R-250

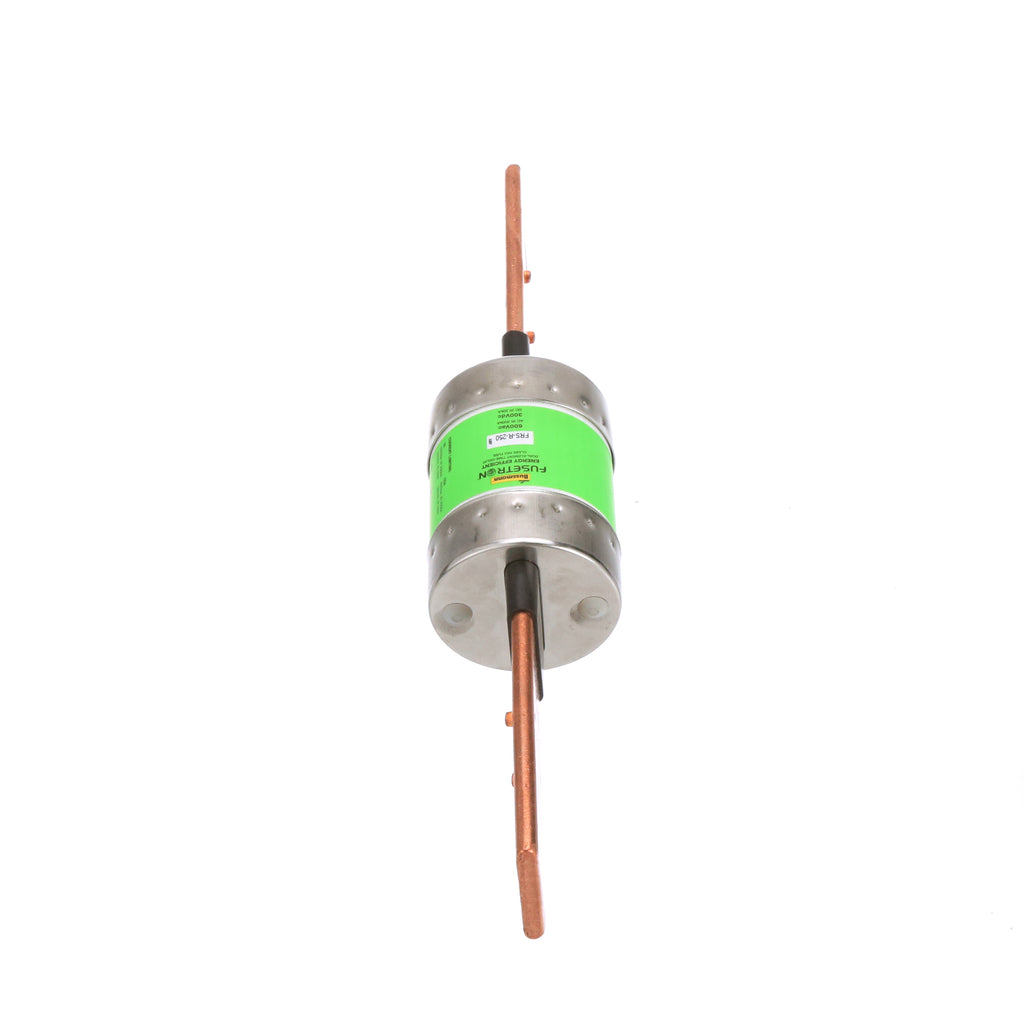

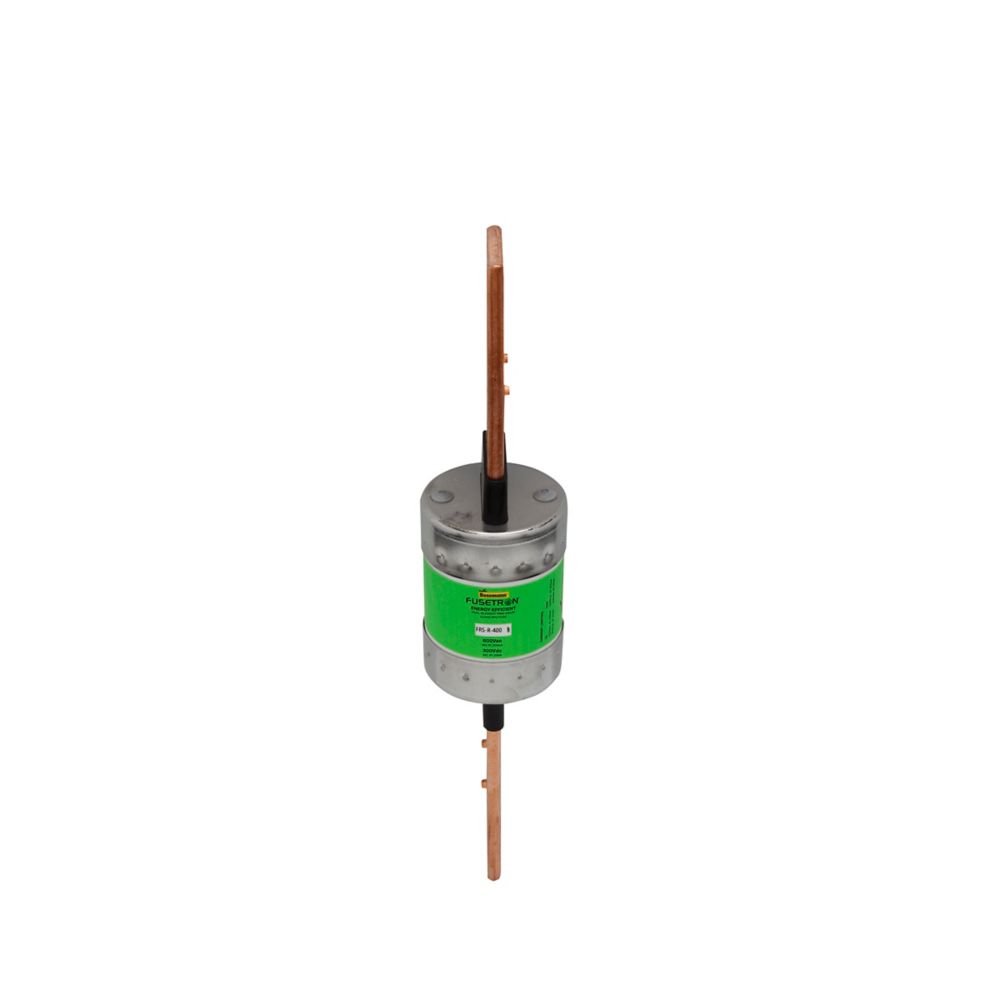

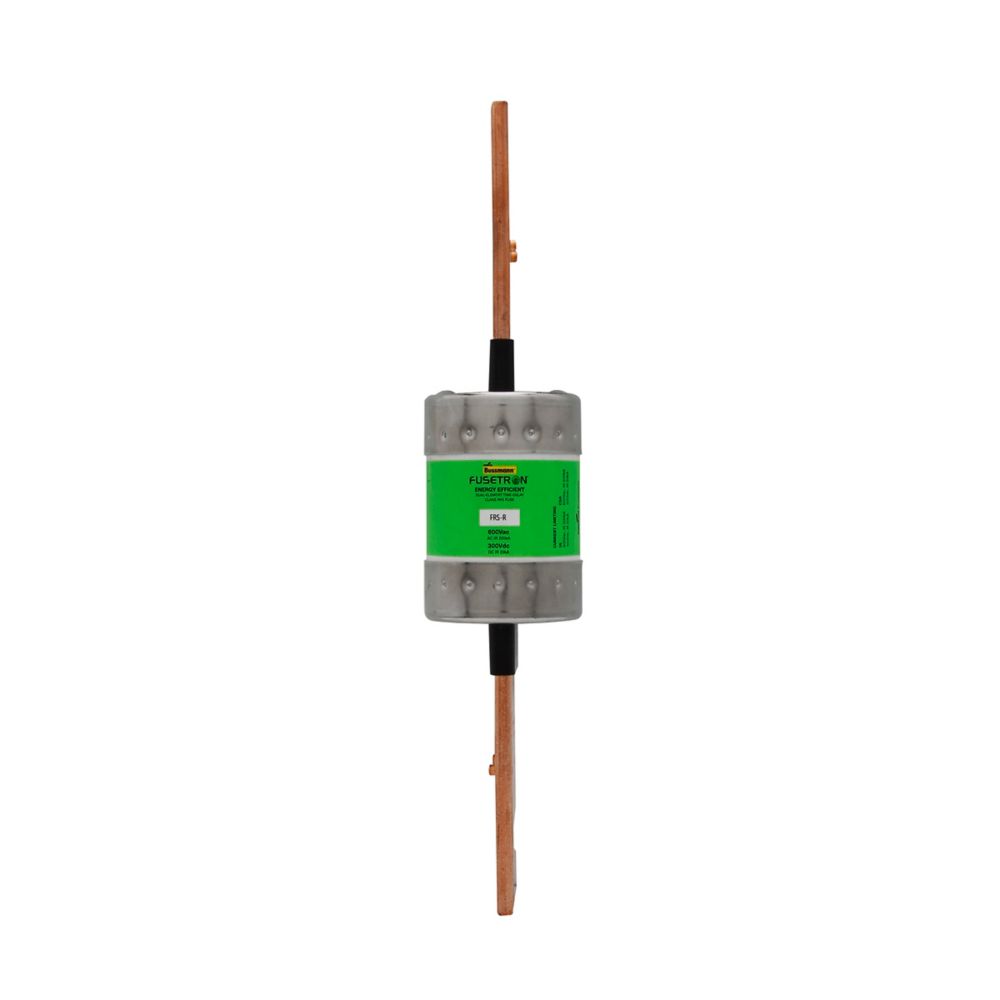

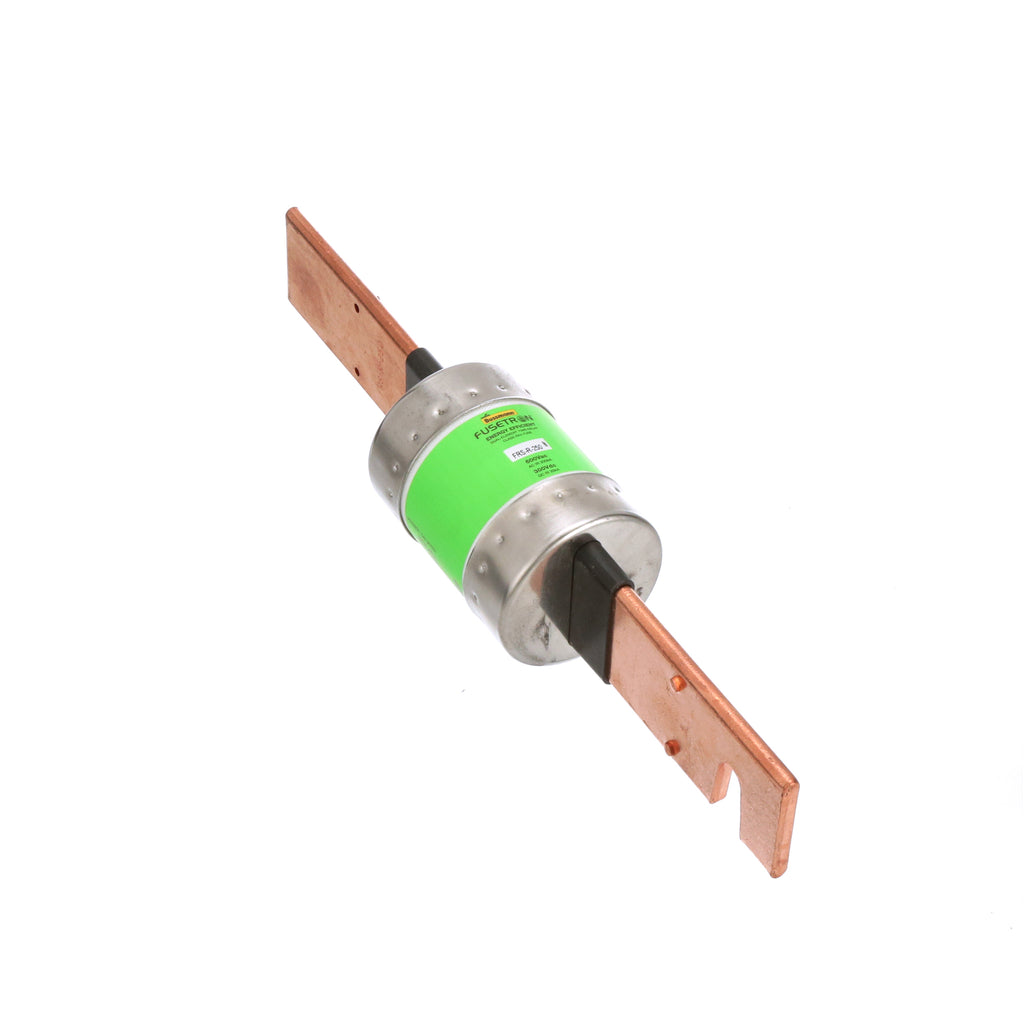

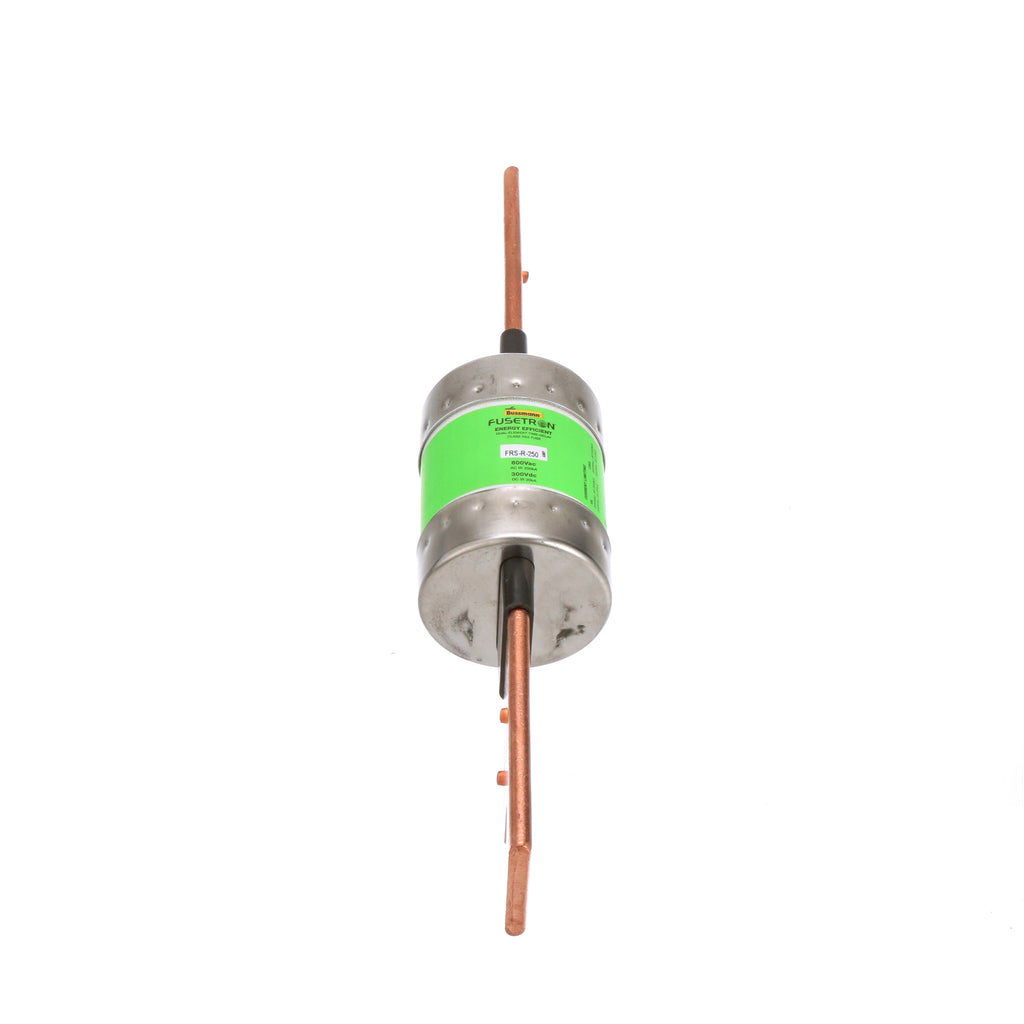

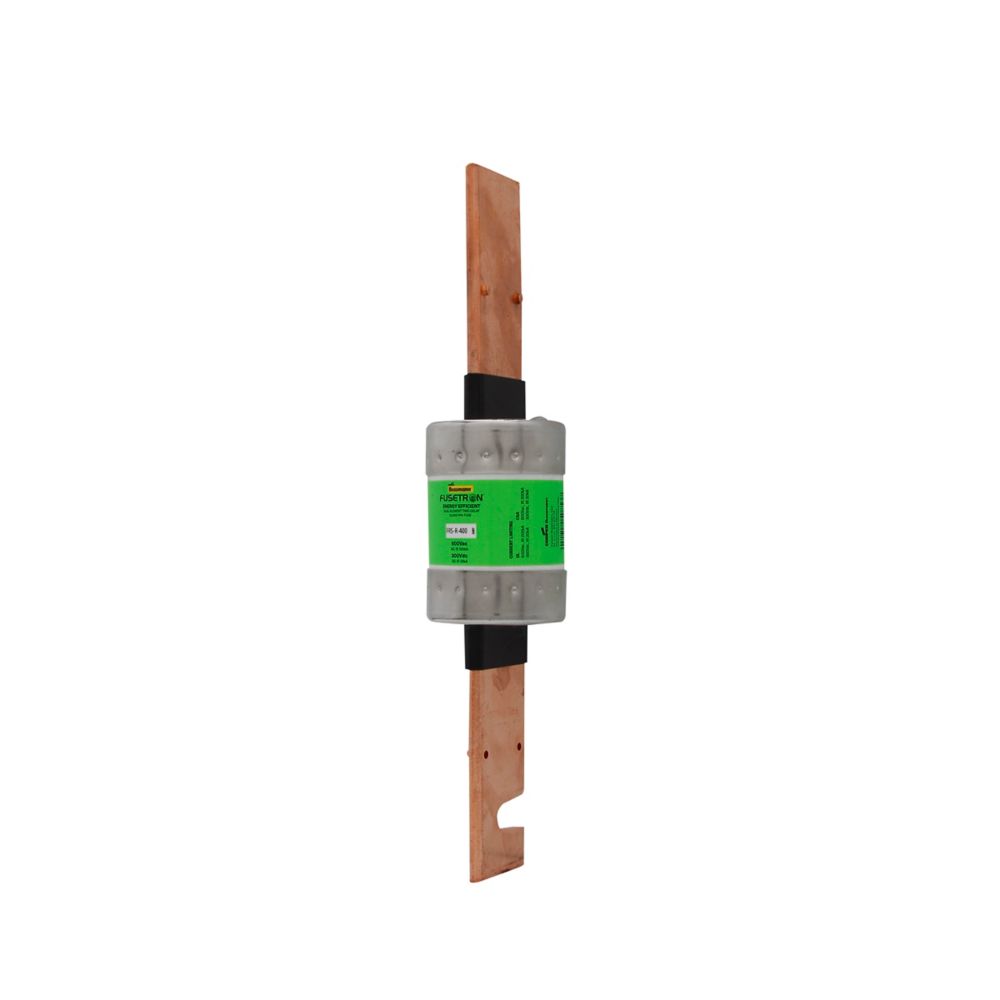

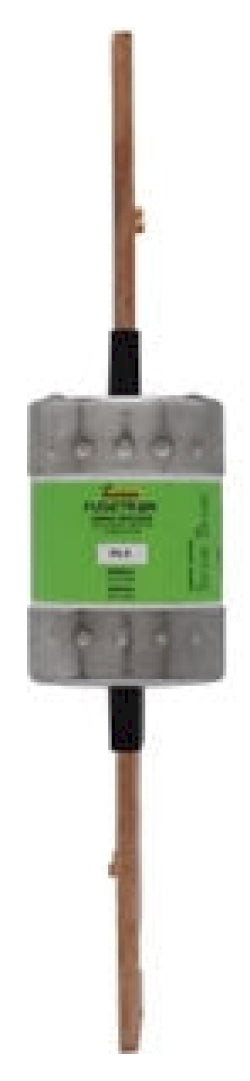

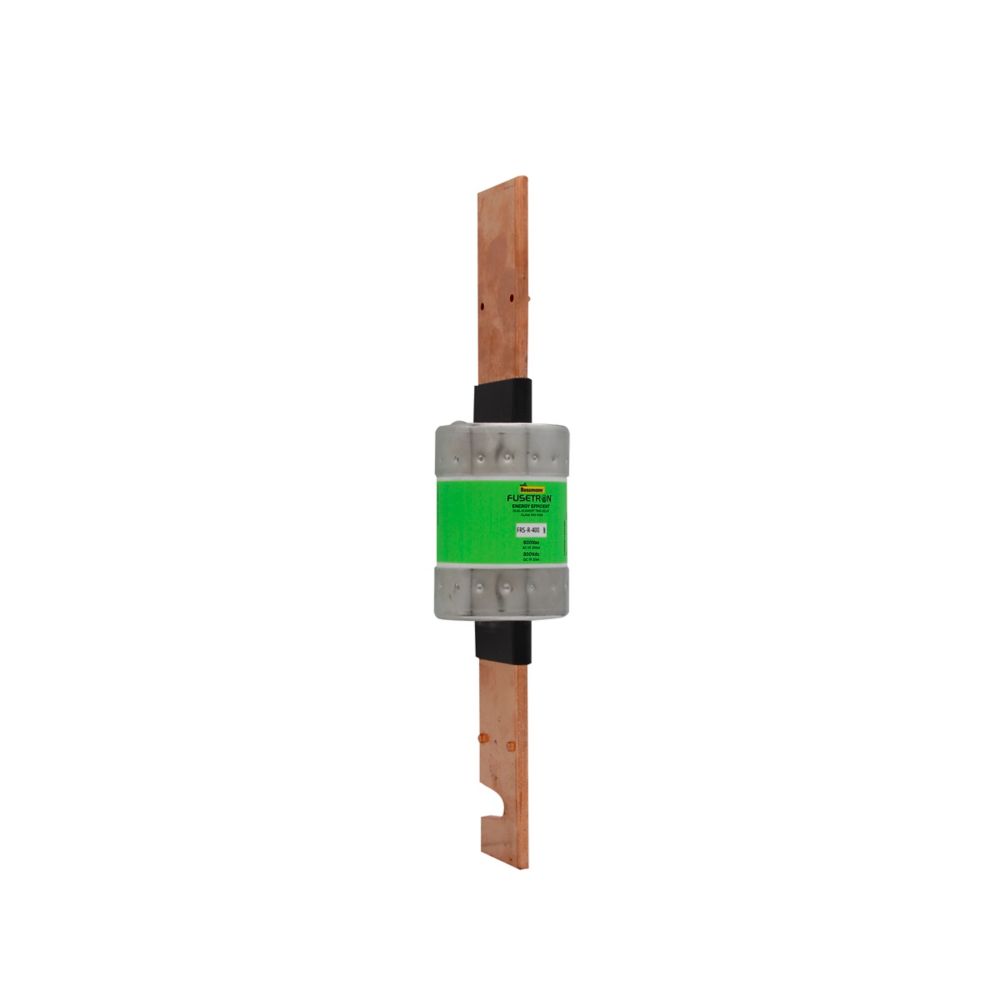

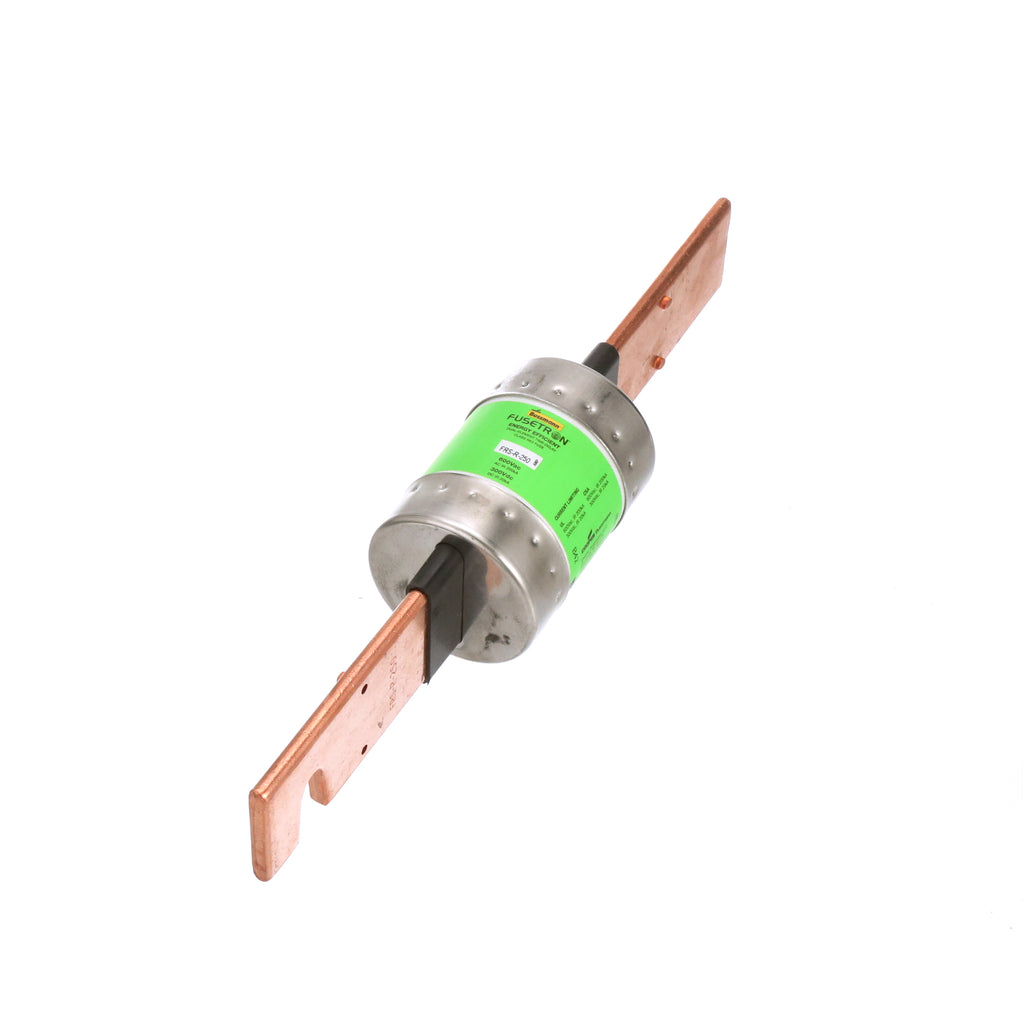

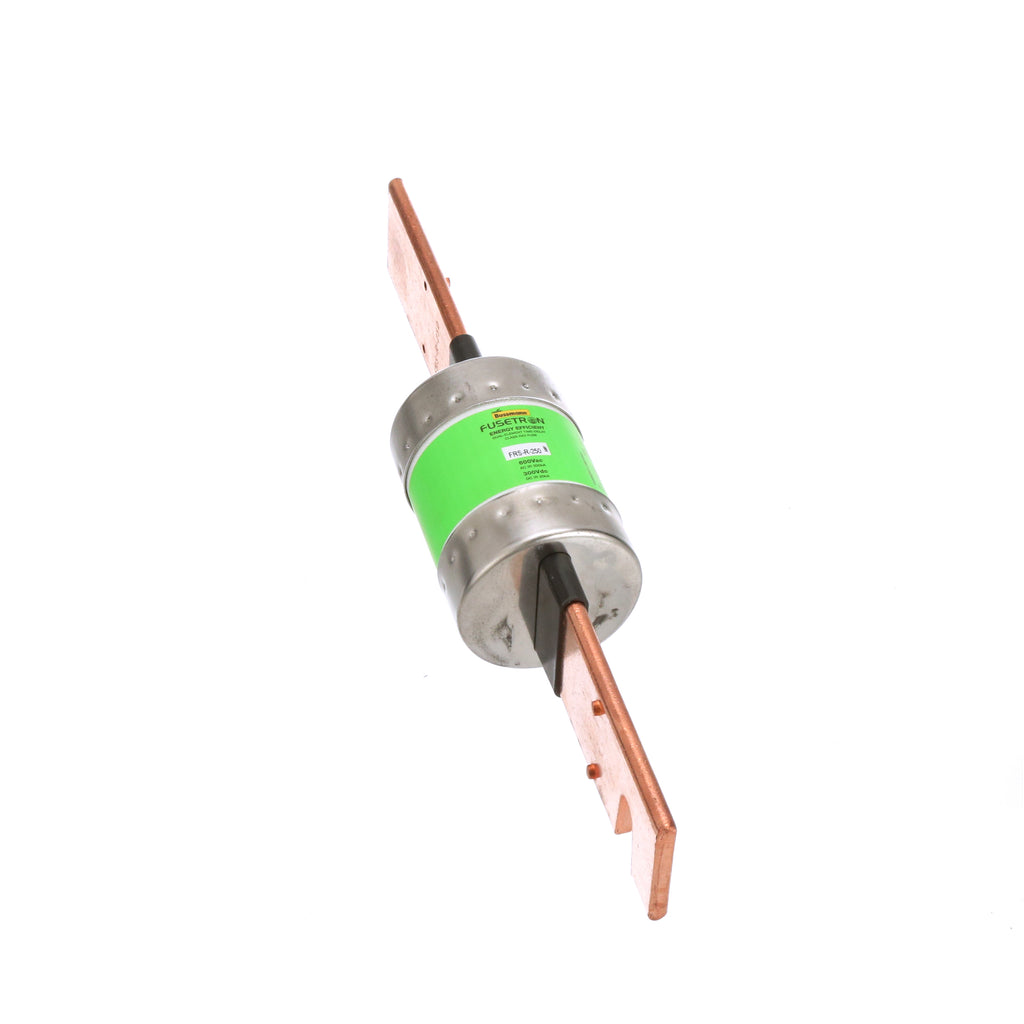

FRS-R-250 is a 250 amp, 600 volt AC Class RK5 time delay dual element fuse from Eaton Bussmann.This fuse features a 10 second time delay at 500% rated load, dual element current limiting design, and a high interrupting rating of 200,000 amperes symmetrical at 600 VAC and 20,000 amperes at 300 VDC. It has blade terminals for mounting and measures 2.34 inches in diameter by 11.63 inches in length. The fuse is UL listed (UL 248-12), CSA certified, and CE approved.

• Amperage: 250 A
• Voltage: 600 VAC / 300 VDC
• Class: RK5
• Time Delay: 10 seconds at 500% rated load
• Interrupting Rating: 200,000 A symmetrical (AC), 20,000 A (DC)
• Dual Element, Current Limiting
• Blade Terminal Mounting
• Dimensions: 2.34" diameter x 11.63" length
• Certifications: UL Listed, CSA Certified, CE Approved
• Series: FRS-R (Fusetron)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-250
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 250
• AIC rating : 200kA@600V
• Diameter : 2.34
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508506
• GTIN : 00051712508506
• Country of Origin : Mexico
• Dimensions : 11.63 in x 2.59 in x 2.59 in (Length/Depth x Height x Width)
• Weight : 0.4
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
