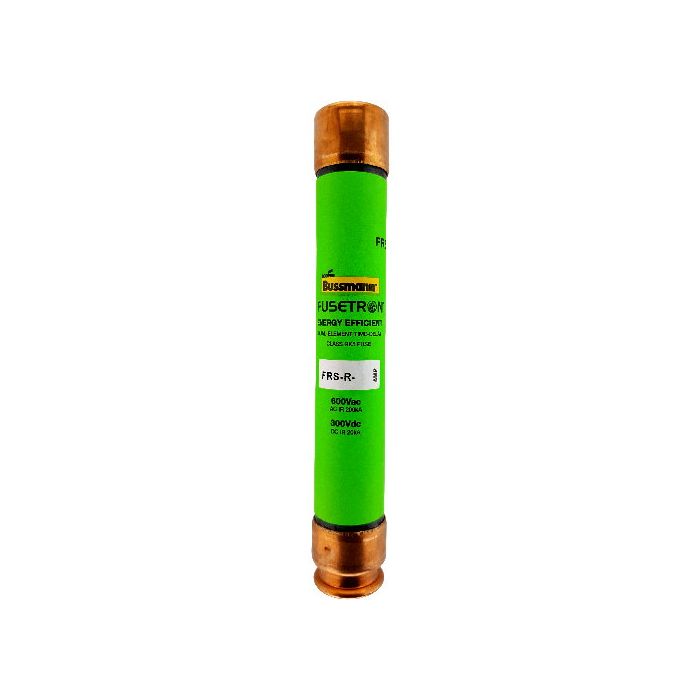

FRS-R-25 - Eaton Bussmann 25A 600V Dual Element Time Delay Class RK5 Fuse

FRS-R-25

FRS-R-25 is a 25 amp, 600 volt AC, dual element time-delay fuse from Eaton Bussmann's Class RK5 series.This fuse features a current-limiting design with a 10 second response time at 500% overload, an interrupt rating of 200 kA at 600 VAC and 20 kA at 300 VDC, and ferrule end x ferrule end connections. It is non-indicating and CE marked for compliance.

• Amperage Rating: 25 A
• Voltage Rating: 600 VAC / 300 VDC
• Interrupt Rating: 200 kA at 600 VAC, 20 kA at 300 VDC
• Class: RK5
• Type: Dual Element, Time Delay, Current Limiting
• Connection: Ferrule end x ferrule end
• Response Time: 10 seconds at 500% overload
• Fuse Indicator: Non-indicating
• Certifications: CE Marked, UL Listed, CSA Certified
• Physical Size: 0.81" diameter x 5" length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-25
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508339
• GTIN : 00051712508339
• Country of Origin : Mexico
• Dimensions : 5 in x 0.81 in x 0.81 in (Length/Depth x Height x Width)
• Weight : 0.165
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
