FRS-R-200 - Eaton Bussmann 200A 600V Class RK5 Time-Delay Dual Element Fuse

FRS-R-200

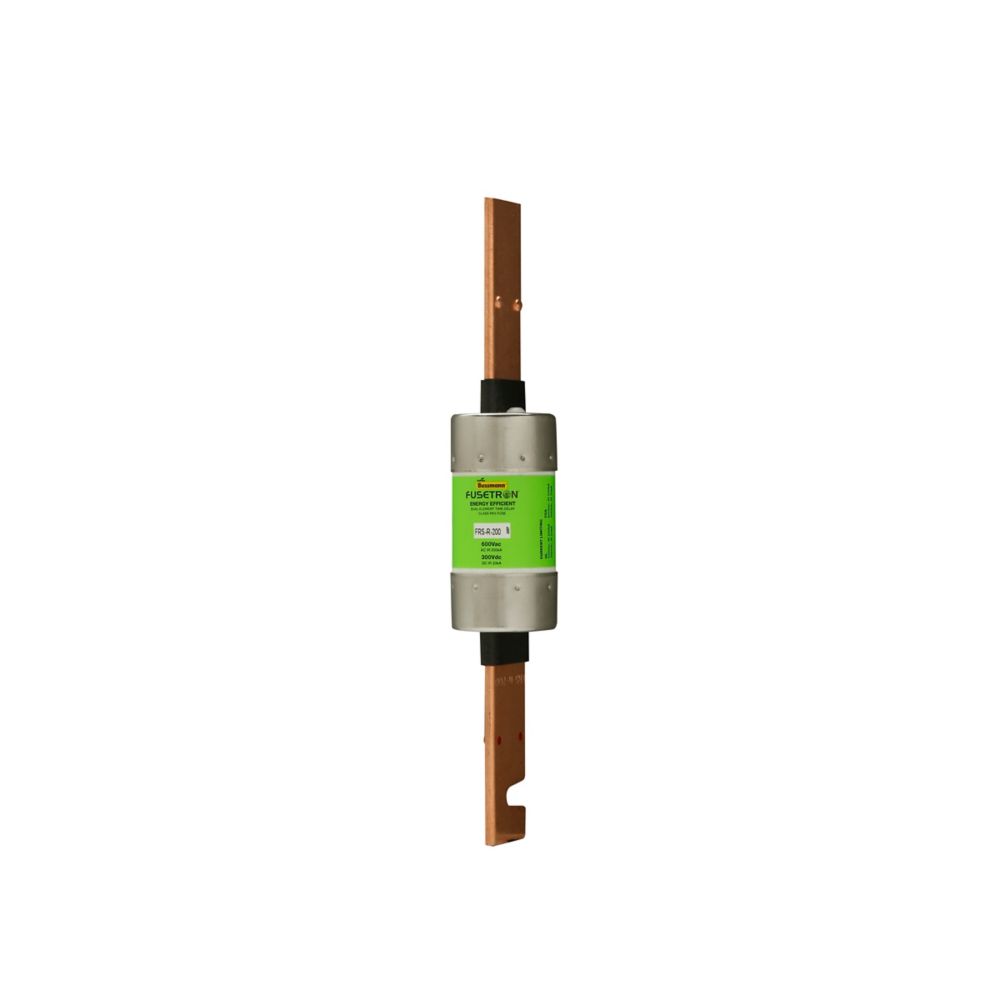

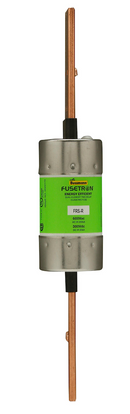

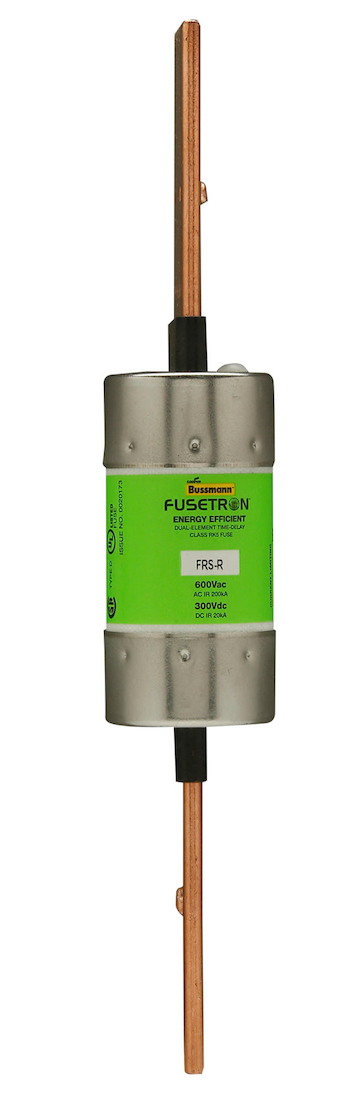

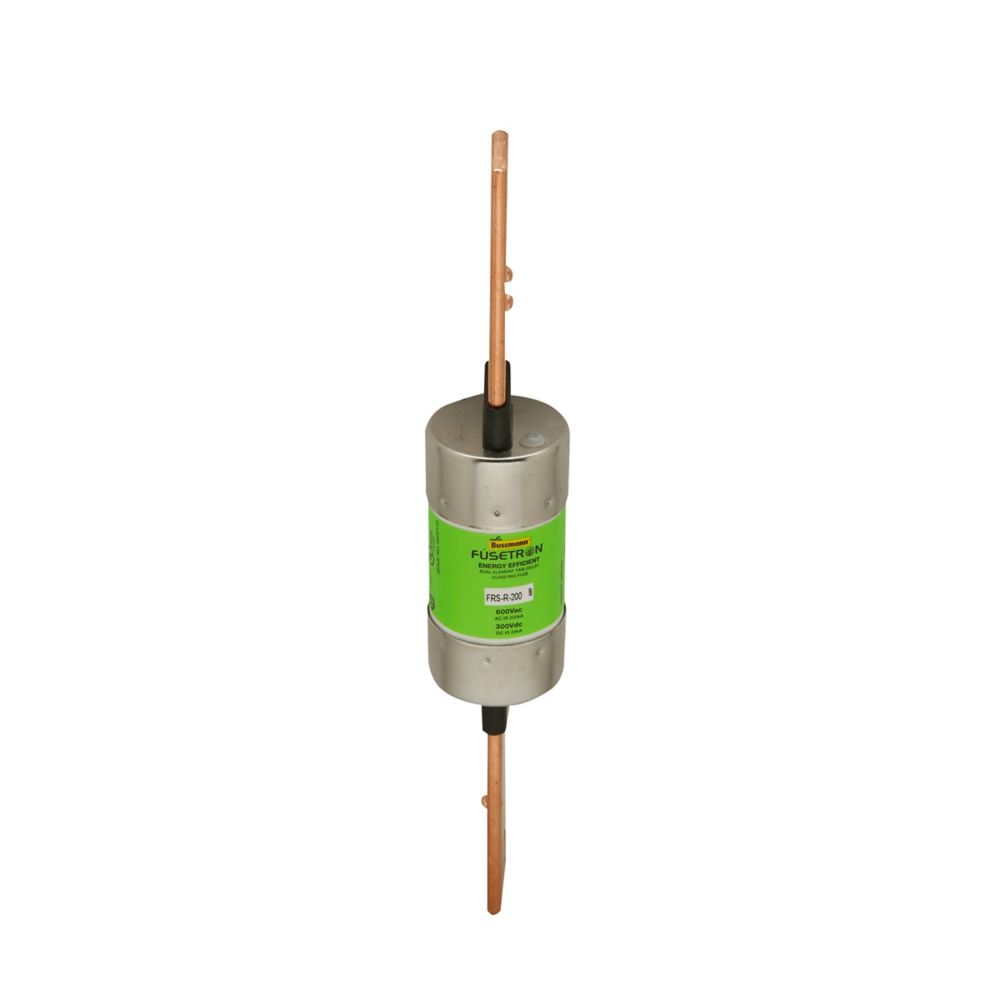

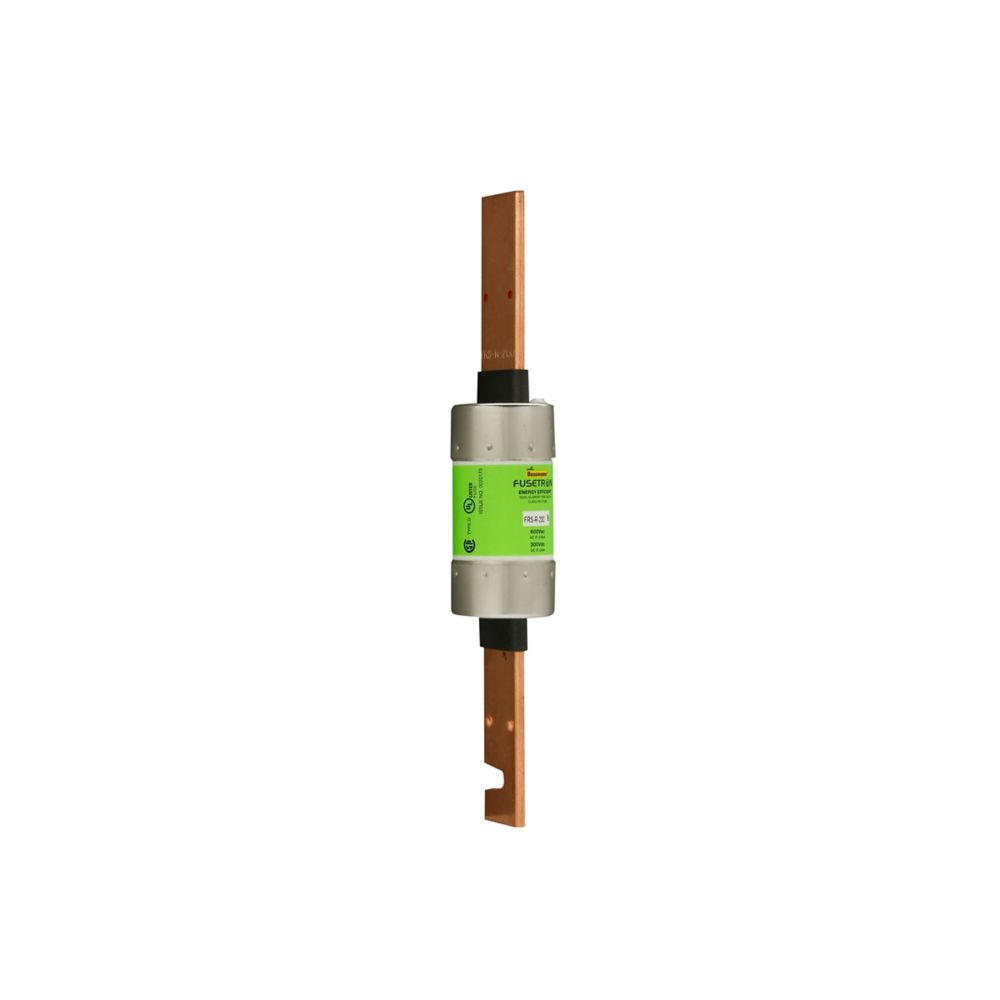

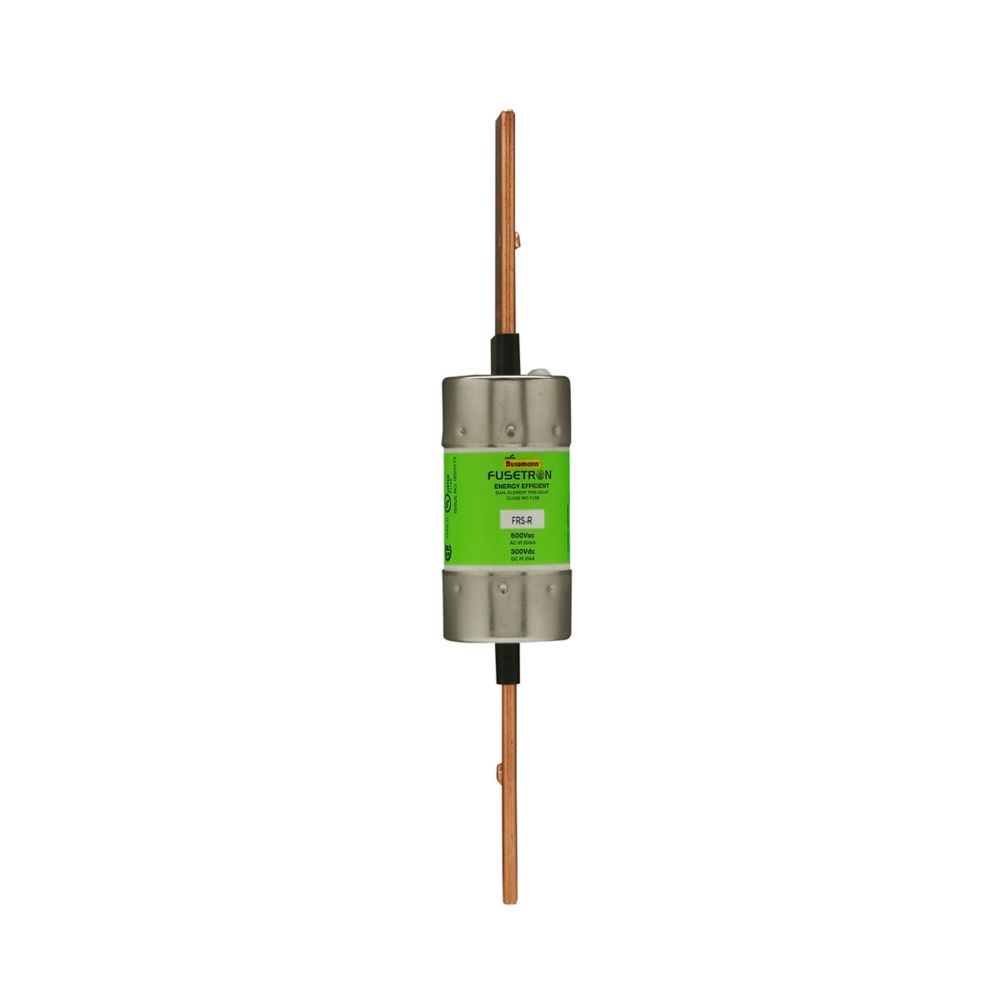

FRS-R-200 is a 200 amp, 600 volt AC, Class RK5 time-delay dual element fuse from Eaton Bussmann series designed for reliable circuit protection.This fuse features a current-limiting design with a 10 second time-delay at 500% overload, suitable for motor control centers, combination starters, and power panelboards. It has a blade end x blade end connection, non-indicating type, and an interrupting rating of 200 kA at 600 Vac and 20 kA at 300 Vdc. Certified to UL 248-12, CSA, and CE standards, it ensures high performance and safety.

• Amperage Rating: 200 A
• Voltage Rating: 600 Vac, 300 Vdc
• Fuse Class: RK5
• Time-Delay, Dual Element
• Interrupting Rating: 200 kA at 600 Vac, 20 kA at 300 Vdc
• Connection Type: Blade end x blade end
• Non-Indicating Fuse
• Response Time: 10 seconds at 500% overload
• Series: FRS-R
• Certifications: UL Listed, CSA Certified, CE Marked
• Physical Size: 1.61 in diameter x 9.63 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: FRS-R-200
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Fusetron
• Type : FRS-R
• Voltage : 600
• Amperage : 200
• AIC rating : 200kA@600V
• Diameter : 1.61
• Class Rating : RK5
• Barrels : 1

Product Data

• UPC : 051712508483
• GTIN : 00051712508483
• Country of Origin : Mexico
• Dimensions : 9.63 in x 1.84 in x 1.84 in (Length/Depth x Height x Width)
• Weight : 0.971
• Certification : CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
